Bosch EPS200 high pressure common rail injector electric test bench

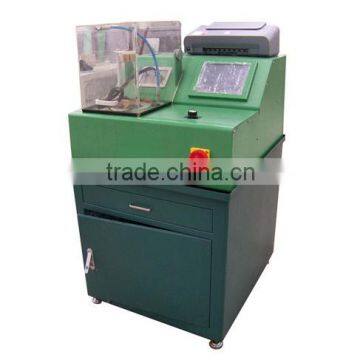

     EPS200 common rail injector test bench

EPS200 common rail injector test bench is mainly test for common rail injector. Also it is continuous fuel delivery analysis computerised measuring system for conventional and new diesel injection systems. The electronic fuel delivery measuring system is compulsory for modern diesel injection system testing.It guarantees a high level of reproductivity of the measured valuse.

EPS200 common rail injector test bench is the professional test bench which is used for testing common rail system, can finish the high-pressure common rail system functional testing.

System Application:

the system is suitable for detection of BOSCH, DENSO, DELPHI and SIEMENS common rail injectors. Such as CP1, CP2.CP3, HP3 series of electromagnetic injectors,

It also can test 1 common rail injector in one time.

Technical Parameters:

1. Motor power: 2.2kw.

2. Control range: 12v, 80v, 150v .

3. Control accuracy: phase adjustment

4. Injector opening frequency:  control: 0-1000hz  control accuracy: 1hz

5. Fuel injector hold time:   control: 0-65535us

6. Delivery oil count:  control: 0-1000 times  control accuracy: 1 times

7. Fuel pressure control  control: 0-2000bar  control accuracy: 1bar

8. Electronic power: 1 phase 220V optional

9. Motor speed: 0-3000RPM

10. Flow measure range: 0-600ml/1000times

11. Flow measurement accuracy: 0.1ml

12. Temperature control range: 40+-2

Features and Advantages:

1. Controlled by industrial computer in real time, Windows operating system.

2. Oil quantity is measured by sensor and displayed on 10.4" tactile LCD screen.

3. More than 700 kinds of injectors data can be searched and used.

4. It is installed BOSCH common rail pump to provide 0~2000 bar.

5. Rail pressure can be tested in real time.

6. Provide pressure overload protect.

7. Pulse and frequency of the injector can be adjusted.

8. Injection time can be set.

9. Protection function of short-circuit.

10. Precise measurement, easy operation, low noise.

11. Frequency converter inside to keep the RPM.
