Help CenterDiesel Test Bench
US$ 3,650 - 5,670
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
JHDS-3 search&digital display type
Model Number:
JHDS-3 search&digital display type
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Diesel Fuel Injection Pump Test BenchUS$ 3,650 - 5,670MOQ: 1 Set -
JHDS-5 Working Station Type Test BenchUS$ 3,500 - 5,400MOQ: 1 Set
-
JHDS-3 Search&digital Display Type Test BenchUS$ 5,600 - 6,200MOQ: 1 Set
-
2015 Most Popular Product Bosch Fuel Injection Pump Test BenchUS$ 2,700 - 3,800MOQ: 1 Set
-
JHDS-5 Working Station and Computer Type Injection Pump Test BenchUS$ 2,700 - 3,800MOQ: 1 Set
Place of Origin
Shandong, China
Brand Name
JHDS-3 search&digital display type
Model Number
JHDS-3 search&digital display type
Specifications
diesel fuel injection pump test benchindustrial control mainboard,industrial level hi-speed SCM technology and high reliabili

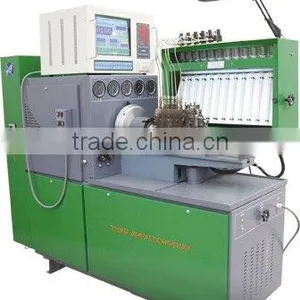

diesel fuel injection pump test bench
This industrial control computer type test bench adopts TAIWAN industrial control mainboard,industrial level hi-speed SCM technology and high reliability anti-disturbance technology ,has stable and reliable work performance.With Chinese-English menu,it can show all debugging interface. Can inquire about technical parameters of fuel injection pump,print or save the debugging date of fule injection pump.
Technical Parameters Table
| TYPE | CYL | POWER | r/min | RPM preset | TEMP | Air supply + - |
DC supply 12V/24V |
Advance angle |
Computer | Tested pumps | Function |
| JHDS-1 | 12 | 7.5 | 0-4000 | √ | √ | √ | √ | √ | √ | All pumps | 1-15 |
| 11 | 0-3000 | ||||||||||
| 15 | |||||||||||
| 18.5 | |||||||||||
| 22 | |||||||||||
| JHDS-2 | 12 | 7.5 | 0-4000 | √ | √ | √ | √ | √ | All pumps | 1-13 | |
| 11 | 0-3000 | ||||||||||
| 15 | |||||||||||
| 18.5 | |||||||||||
| 22 | |||||||||||
| JHDS-3 | 12 | 7.5 | 0-4000 | √ | √ | √ | √ | √ | √ | All pumps | 1-15 |
| 11 | 0-3000 | ||||||||||
| 15 | |||||||||||
| 18.5 | |||||||||||
| 22 | |||||||||||
| JHDS-4 | 12 | 7.5 | 0-4000 | √ | √ | √ | √ | √ | × | All pumps | 1-13 |
| 11 | 0-3000 | ||||||||||
| 15 | |||||||||||
| 18.5 | |||||||||||
| 22 | |||||||||||
| JHDS-5 | 12 | 7.5 | 0-4000 | √ | √ | √ | √ | √ | √ | All pumps | 1-15 |
| 11 | 0-3000 | ||||||||||
| 15 | |||||||||||
| 18.5 | |||||||||||
| 22 | |||||||||||
| JHDS-6 | 12 | 7.5 | 0-4000 | √ | √ | √ | √ | √ | √ | All pumps | 1-15 |
| 11 | 0-3000 | ||||||||||
| 15 | |||||||||||
| 18.5 | |||||||||||
| 22 |
√With the function,×Does not have the function,The optional feature.
√ has ×no optional
Fuel pump test bench main function
| 1Test each cylinder's oil supply capacity at various rotation speeds. | 9Test the interior pressure of distribution pumps. |
| 2Statically check the start point and interval angle of oil supply of each cylinder. | 10Test the negative pressure performance of pneumatic speed regulators. |
| 3Check and adjust the performance of mechanical speed regulators. | 11Test the oil supply pressure of distribution pump |
| 4Test the electromagnetic valve of distribution pump . | 12Measure the oil-return quantity of distribution pump. |
| 5Check the performance of pneumatic speed regulators | 13Self-suction joint |
| 6Test the sealing performance of injection pump. | 14Print(optional) |
| 7Check the performance of pressure compensators | 15Database(optional) |
| 8Measure the advance angle of advance device | 16Test the tack bar travel(optional) |
