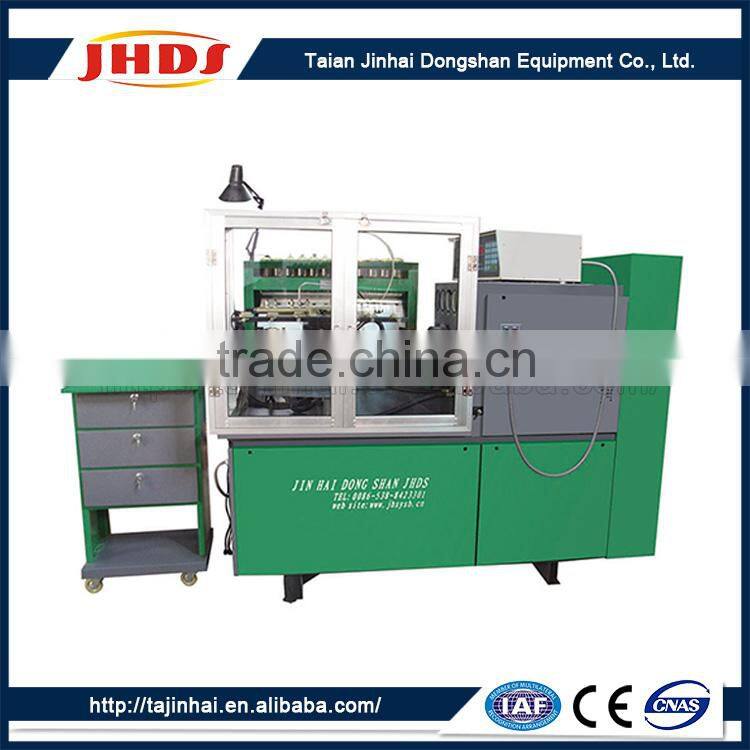

Diesel fuel injection pump test bench JHDS-4,digital control

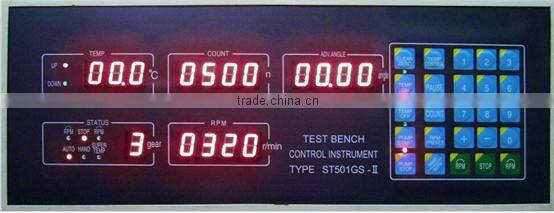

Control Interface of the computer:
Technical parameters:
Number Of test Cylinders | Output Power | RPM | Rpm preset | Temperature control | Positive pressure system | Negative pressure system |
12 | 7.5kw,11kw, 15kw, 18.5kw,22kw | 0~4000 | ü | ü | ü | ü |
Air supply | DC Power supply | Internal pressure Of VE | Oil return of VE | Travel of tooth bar | Advanced angle | Available with pump type |
ü | 12V 24V | ü | ü | ü | ü | All in-line and rotary pump |
Introduction:
JHDS-4 Diesel fuel injection test bench is design for customer’s require. This series test bench adopt high quality frequency conversing device(Inverter), and it has characteristic with hi-reliability, ultra-low-noise, energy save,high output torque,perfect auto-protecting funciton and operate easy.
It is the kind of product with high quality and good price in our business.Used for Bosch in line pumps of K,M,MW,A,B,BV,P(ZU,ZW,ZM) and BOSCH rotative distributor injection pumps EP/VA,EP/VM,VE….F…,also used for Chinese pumps such as Ⅰ,Ⅱ,Ⅲ,K,P7,BQ etc.
Main function:
1. Measurement of each cylinder delivery at any speed.
2. Test point and interval angle of oil supply of injection pump.
3. Checking and adjust the mechanical governor.
4. Checking and adjusting the distributor pump.
5. .Experiment and adjusting of behavior of supercharging and compensatory device.
6. Measurement of oil return of distributing pump
7. Testing of the electromagnetic valve of distributor pump.(12V/24V)
8. Measurement of the internal pressure of distributor pump.
9. Checking of the advance angle of advance device.(on request)
10. Checking the sealing of injection pump body
11. Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.)
12. Checking the travel of stroke(on request)
13.oil lubricate (on request)
14. Foced cooler (on request)
