China factory Q235 steel safe andamio del cuplock

China factory Q235 steel safe andamio del cuplock

Cup Lock Scaffold Verticals

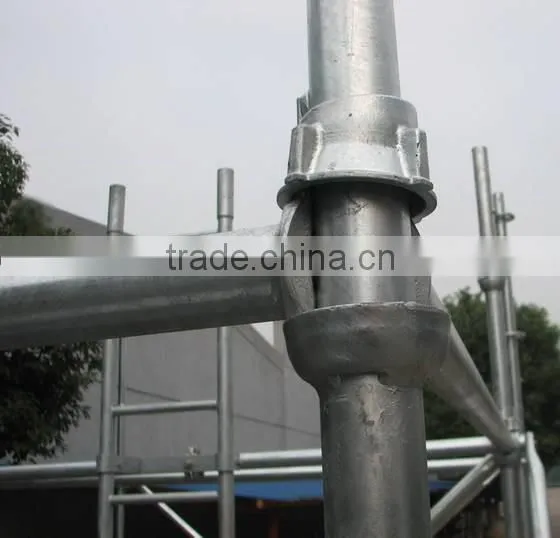

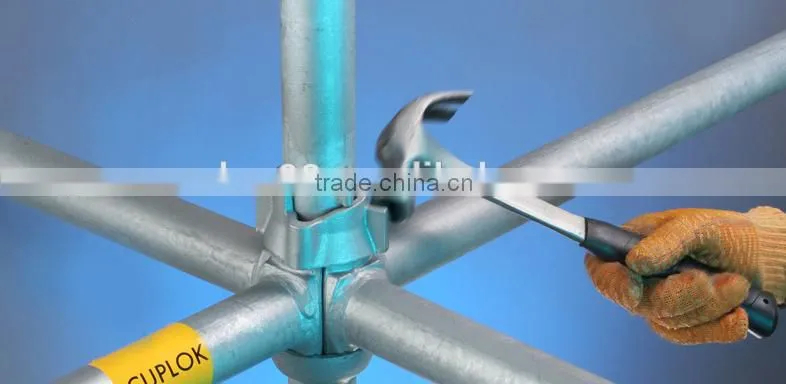

Made from 48.3mm diameter x 3.2mm thick high grade steel tube & Two Cups In Distance of 500mm. A fixed bottom cup which is welded to the Stan- dard and a sliding top cup. The forged blade ends of the Ledger (Horizontal) are located into the bottom cup. The top cup is moved down and rotated to secure the components in place and tightened by a hammer blow to give a positive and rigid connection.

Cup Lock Scaffold LEDGER (HORIZONTAL)

Made from 48.3mm diameter high grade steel tube with forged steel blade ends, which locate into the bottom cups of the Standard (Vertical) and are locked in place by the corresponding top cups.

Cup Lock Scaffold Diagonal Brace

Diagonal braces are made from 48.3mm diameter high grade steel tube with a swivel blade at each end. They are placed diagonally from ledger to ledger, next to the standards to which they are fitted.

Pcking: Steel pallets,or Customized package

Shipping: 15-25Days after receiving your payment

Introduction

CNBM Metal International Corporation was found in 1984. It is a professional manufacturer of
casting parts for industrial, formwork and scaffolding field. There are altogether 300
employees including 43 technicians and 10 senior engineers. The weight of each casting part
ranges from 0.1kg to 10 tons. The products are extensively used on construction machinery,
building equipment, formwork and scaffolding. The products are mainly exported to foreign
countries like Europe, America, Great Britain, Canada, Japan, Middle East, etc.

Enterprise Development

1, To decide the product structure according to the market equipment
Basic strategy: To develop casting and punching part steadily for industrial, formwork and
scaffolding and actively expand market in all over the world, and improve the manufacturing
level.
2, continuously improvement is our tenet and customer’s satisfaction is our goal.
Continuously improvement is the method for persistent progress, focusing on details is the
way of process control, and exceeding the customer’s expectation is our eternal pursuit.
3, Continuous development
To develop, enlarge and strengthen is the basis of enhancing market competitiveness and
basic on human oriented to strength teamwork, improve management level, insist on steady
and continuous development is the tenet of achieving the “ A century company”.

Quality Inspection
In regard to meet the quality requirement, our testing lab is established with different kind of
material inspection equipment, the inspectors are trained with professional inspecting
knowledge and working experience at site. The testing report for each shipment is properly
recorded and convenient for customer and our chief engineer to check out and track
according specified shipment.

   Tag:    hdg cuplock scaffold
