Trade Assurance Bearing Factoy Nylon Bush/pure PTFE Bush/plastic Bearing

Trade Assurance Bearing Factoy Nylon Bush/pure PTFE Bush/plastic Bearing photo-1
Trade Assurance Bearing Factoy Nylon Bush/pure PTFE Bush/plastic Bearing photo-2
Trade Assurance Bearing Factoy Nylon Bush/pure PTFE Bush/plastic Bearing photo-3
Trade Assurance Bearing Factoy Nylon Bush/pure PTFE Bush/plastic Bearing photo-4
Trade Assurance Bearing Factoy Nylon Bush/pure PTFE Bush/plastic Bearing photo-5
Trade Assurance Bearing Factoy Nylon Bush/pure PTFE Bush/plastic Bearing photo-6
US$ 0.05 - 0.08 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
Yifangzhijia
Model Number:
nylon bush
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Anhui, China
Brand Name Yifangzhijia
Model Number nylon bush
Comany Profile

Alibaba Trade Assurance bearing factoy nylon bush/pure PTFE bush/plastic bearing

The standard range of composite bearings is very comprehensive and covers almost every standard size. This range comprises bushing and flanged bushings, thrust washers and strips.

Product Details

Materials: Steel,Brass or bronze

plastic bearing is a sintered PTFE resin molded billet, and then processed by a high-precision CNC lathes from. Teflon is one of the best material in the world today corrosion resistance, so too "plastic king" reputation. It is longer term use of any kind of chemical mediators. PTFE seals, gaskets, shims. PTFE compared with other plastics having excellent chemical resistance and high-temperature characteristics. It has been widely used as a sealing material and a filler material.

Feature
ASTM Experimental methods and conditions
PTFE/TEFLON
Density
D792
2.13-2.35
Water Absorption (%)
D570/24h,1/3”t
<0.00
Melting Point (℃)

327
Max. Working Tm(continuous) (℃)

260
Tensile Strength (Mpa)
D638/23℃
20-45
Elongation(%)
D638/23℃
200-450
Hardness
Scleroscope
D50-D65
Static Friction Coefficient
Friction with steel
0.02
Dielectric Constant
D150/103 HZ
2.1
Dielectric Breakdown Strength (MV/m)
D149,3.2mm
19
Resistance to chemical reagents

Excellent
Fire Retardancy (%)
D2863 Oxygen Index
>95
Main product
1)

SF-1(du) metal backing oilless bearing bushing (PTFE Composite)
2)

 SF-2(dx) metal backing slide bearing bushing (POM Composite)
3)
 FU sintered bronze or iron bushing
4)
 FB090 wrapped bronze bushing with oil pockets
5)
 FB092 wapped bronze bushing punch through hole
6)
 FB09G wrapped bronze bushing with oil pockets
7)
JDB,JCB solid graphite steel bushing and copper bushing
8)
FZ series  Cu/Al/ plastic resin ball cage retainer
9)
Solid casting bronze bushing and brass bushing
10)
JF series steel+bronze bi-metal bushing
11)
Tungsten Steel High Speed Carbide Mosaic bearing
12)
Steel bushing and non-standard parts
Model No.
Min. I.D.
Min.O.D.
Max.I.D.
Max.O.D.
Max. Length
DU,SF-1
6mm
8mm
300mm
305mm
100mm
DX,SF-2
10mm
12mm
300mm
305mm
100mm
FU
1.5mm
3mm
50mm
70mm
70mm
JF 800
10mm
12mm
173mm
180mm
100mm
FB090
10mm
12mm
300mm
305mm
100mm
FB092
10mm
12mm
300mm
305mm
100mm
FB09G
10mm
12mm
300mm
305mm
100mm
JDB ,JCB
8mm
12mm
160mm
180mm
150mm
FU
1.5mm
3mm
50mm
70mm
70mm

 I.D. = inner diameter


O.D. = Outer diameter
Technical Process

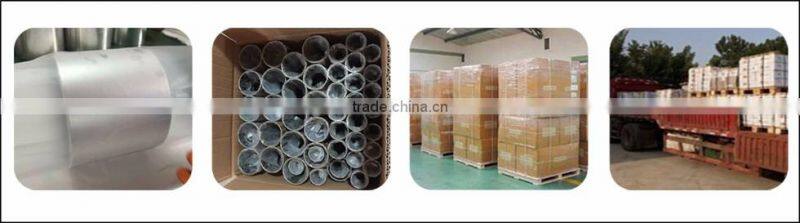

Packing & Delivery
Our Team
Why Us

 1.we have 8 years technology experience, focus on the production of copper sleeve, steel sleeve, sliding bearing and mosaic series bushing, axle bush, product quality is reliable.

2.we are Alibaba contract cooperative partner ,the losses occurred in the process of trade by the Alibaba compensate pays first.We will give you enough sense of security.

3.automation equipment and special machinery production and processing, to ensure the accuracy of the product, saving time and lower labor costs, making products with prices.

4.the number of domestic counterparts, the company jointly formed a large and ample supply base, reliable delivery capability, delivery is guaranteed.

5.support customers more successful as our team belief unremitting efforts, it is the most worthy of your own suppliers in China.

6.free latest offer price, authoritative technical advice, more products and services quickly contact us.
