Flange Bimetal Bearing Bimetallic Bushing Trunnion Shaft Bushing

Flange Bimetal Bearing Bimetallic Bushing Trunnion Shaft Bushing photo-1
Flange Bimetal Bearing Bimetallic Bushing Trunnion Shaft Bushing photo-2
Flange Bimetal Bearing Bimetallic Bushing Trunnion Shaft Bushing photo-3
Flange Bimetal Bearing Bimetallic Bushing Trunnion Shaft Bushing photo-4
Flange Bimetal Bearing Bimetallic Bushing Trunnion Shaft Bushing photo-5
Flange Bimetal Bearing Bimetallic Bushing Trunnion Shaft Bushing photo-6
US$ 0.1 - 0.1 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
Yifang Zhijia
Model Number:
Trunnion Shaft Bushing
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai /ningbo
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Anhui, China
Brand Name Yifang Zhijia
Model Number Trunnion Shaft Bushing
Type Flanged
Material steel + copper alloy
Product Description

                                                 Flange Bimetal bearing Bimetallic bushing Trunnion Shaft Bushing

Material : steel + copper alloy
Type: roller/casting.  sleeve/flange.

Trunnion Shaft Bushing is made of steel and copper alloy. The soft bronze inner layer can provide good lubricating performance with oil grease, hard steel back can provide good support on the whole bearing and cut down the cost.

These bearings are primarily used for bearing arrangements where heavy loads have to be supported and where rotational or oscillating movements are relatively slow.

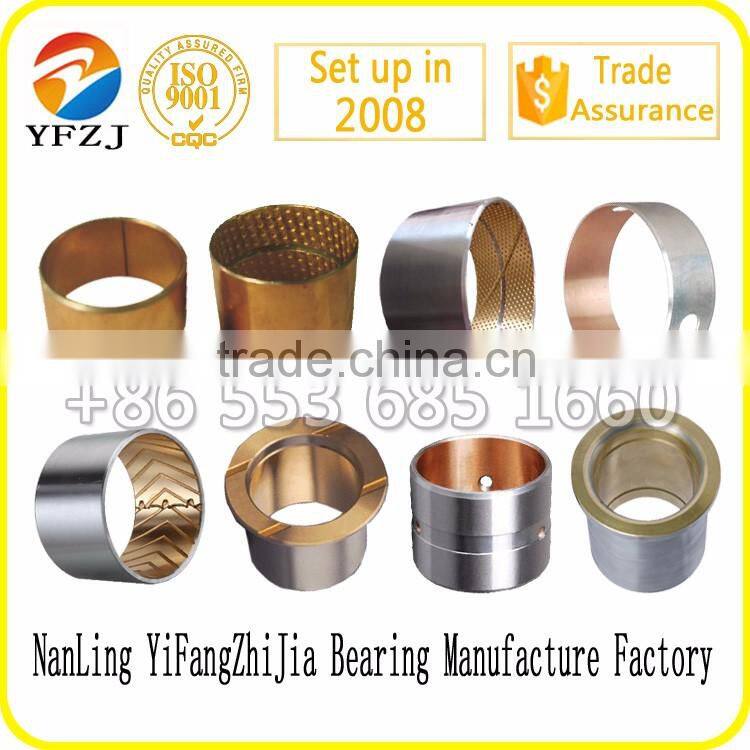

Types of material
Specifications of bronze alloy
Alloy Hrdness
Charateristics and Application
JF-930
CuSn6.5p0.1
HB(60-90)
Lead free
JF-850
CuSn6Zn6Pb3
HB(40-80)
staring motor
JF-800
CuPb10Sn10
HB(60-90)
the strongest material type,wide application scope
JF-750
CuPb24Sn1
HB(45-70)
link Arm
JF-720
CuPb24Sn4
HB(45-70)
link Arm
 we can also customize it according to your drawing.

Tech. Data:

Max. Load
static
250N/mm²
yield strength
240N/mm²
dynamic
140N/mm²
temp. limit
-40℃~+250℃
Max.linear speed
2m/s
friction coeff.
0.08~0.20
PV limit
2.8N/mm².m/s
thermal conductivity
60W(m.k)-1
Shear resistance strength
350N/mm²
thermal conductivity
14.10-6/k
Packing & Delivery

Packaging Details : Standard export packing, or as customers' requirement.
Delivery Detail : 7-30days

Our Advantage

1.we have 8 years technology experience, focus on the production of copper sleeve, steel sleeve, sliding bearing and mosaic series bushing, axle bush, product quality is reliable.

2.we are Alibaba contract cooperative partner ,the losses occurred in the process of trade by the Alibaba compensate pays first.We will give you enough sense of security.

3.automation equipment and special machinery production and processing, to ensure the accuracy of the product, saving time and lower labor costs, making products with prices.

4.the number of domestic counterparts, the company jointly formed a large and ample supply base, reliable delivery capability, delivery is guaranteed.

5.support customers more successful as our team belief unremitting efforts, it is the most worthy of your own suppliers in China.

6.free latest offer price, authoritative technical advice, more products and services quickly contact us.


Company&Certificates

Nanling Yifangzhijia Bearing Manufacture Factory is a professional manufacture, which produces multiple models like Sliding Bearing, Linear Bearing, Copper Sleeve, Steel Sleeve and Non-standard Parts. With a professional business development team, a sound sales network, a perfect management system and a cooperative alliance with domestic bearing enterprises, Yifangzhijia has formed a large and adequate supply base. Products mainly include Oil less Self-lubrication Bearing, Bimetallic Bearing, Solid Mosaic Bearing, Bronze Rolling Bearing and other series. The products widely used in all kinds of machine manufacture, like automobile, metallurgy, mine, shipbuilding, textile, lifting equipment, printing, construction machinery, injection molding and so on.
