New Products for Bronze Floating Bushing/Flanged Floating Bushing/Floating Bushing

New Products for Bronze Floating Bushing/Flanged Floating Bushing/Floating Bushing photo-1
New Products for Bronze Floating Bushing/Flanged Floating Bushing/Floating Bushing photo-2
New Products for Bronze Floating Bushing/Flanged Floating Bushing/Floating Bushing photo-3
New Products for Bronze Floating Bushing/Flanged Floating Bushing/Floating Bushing photo-4
New Products for Bronze Floating Bushing/Flanged Floating Bushing/Floating Bushing photo-5
New Products for Bronze Floating Bushing/Flanged Floating Bushing/Floating Bushing photo-6
US$ 1 - 1.5 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
Yifang Zhijia
Model Number:
JDB-1U
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Anhui, China
Brand Name Yifang Zhijia
Model Number JDB-1U
Type Sleeve
Material Bronze or Brass
Comany Profile

New products for Bronze Floating Bushing/Flanged Floating Bushing/Floating Bushing

The standard range of composite bearings is very comprehensive and covers almost every standard size. This range comprises bushing and flanged bushings, thrust washers and strips.

Product Details

Catering to our rich knowledge and know-how in this domain, our firm is noted as a leading manufacturer and exporter of Floating Bushing. This bushing is made at our fully incorporated manufacturing unit by making use of optimum grade materials and sophisticated technologies in adherence with the quality norms set by the industry. These bushings are widely used in various industries for piping applications to ensure excellent component fitting. We offer Floating Bushing to our clients after testifying on various quality parameters under the supervision of our adroit quality controllers ensuring best grade product delivery.

technical parameter:

Model
JDB-1
JDB-2
JDB-3
JDB-4
JDB-5
Base material
CuZn24Al6
CuSn6Zn6Pb3
CuSn6Zn6Pb3
HT-250
CuCr15
Base hardness
Hb230
HB 220
HB 180
HB 90
HB 80
Friction coefficient
<0.12
<0.13
<0.14
<0.17
<0.17
Max Working Temperature
300℃
350℃
300℃
400℃
350℃
Dynamic load limit
100 N/mm 2
60 N/mm 2
70 N/mm 2
60 N/mm 2
250 N/mm 2
load limit
25 N/mm 2
15 N/mm 2
20 N/mm 2
15 N/mm 2
70 N/mm 2
Max Slide Velocity
Dry 0.40 m/s
15 N/mm 2
2 m/s
0.5 m/s
0.1 m/s
PV Value Limit
Oil 5 m/s
2 m/s
2 m/s
0.5 m/s
0.1 m/s


Main product
1)

SF-1(du) metal backing oilless bearing bushing (PTFE Composite)
2)

 SF-2(dx) metal backing slide bearing bushing (POM Composite)
3)
 FU sintered bronze or iron bushing
4)
 FB090 wrapped bronze bushing with oil pockets
5)
 FB092 wapped bronze bushing punch through hole
6)
 FB09G wrapped bronze bushing with oil pockets
7)
JDB,JCB solid graphite steel bushing and copper bushing
8)
FZ series  Cu/Al/ plastic resin ball cage retainer
9)
Solid casting bronze bushing and brass bushing
10)
JF series steel+bronze bi-metal bushing
11)
Tungsten Steel High Speed Carbide Mosaic bearing
12)
Steel bushing and non-standard parts
Model No.
Min. I.D.
Min.O.D.
Max.I.D.
Max.O.D.
Max. Length
DU,SF-1
6mm
8mm
300mm
305mm
100mm
DX,SF-2
10mm
12mm
300mm
305mm
100mm
FU
1.5mm
3mm
50mm
70mm
70mm
JF 800
10mm
12mm
173mm
180mm
100mm
FB090
10mm
12mm
300mm
305mm
100mm
FB092
10mm
12mm
300mm
305mm
100mm
FB09G
10mm
12mm
300mm
305mm
100mm
JDB ,JCB
8mm
12mm
160mm
180mm
150mm
FU
1.5mm
3mm
50mm
70mm
70mm

 I.D. = inner diameter


O.D. = Outer diameter
Technical Process

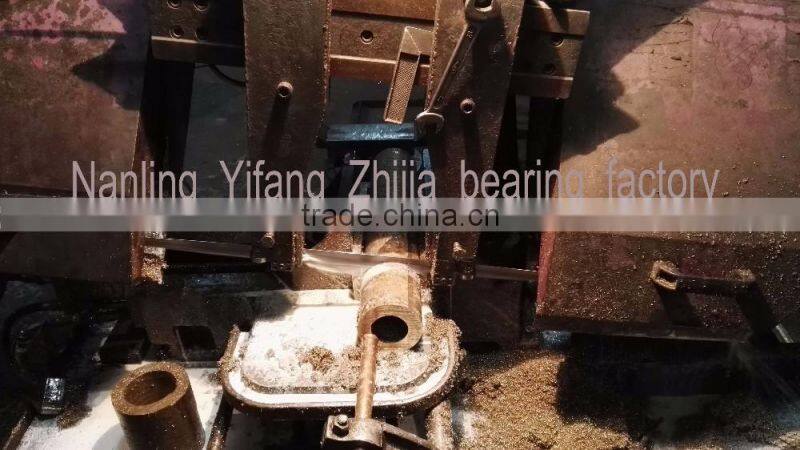

Floating Bushing specific processing process:

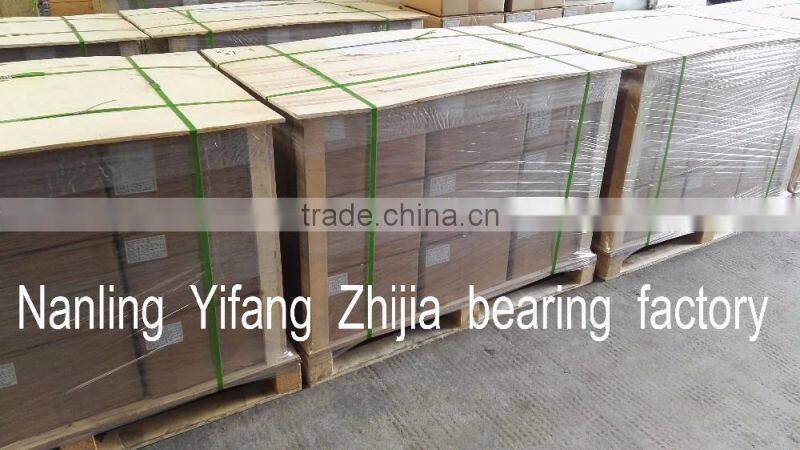

Packing & Delivery

Floating Bushing

Packaging Details:Standard export packing, or as customers' requirement.
Delivery Detail:7-30days.

Our Team
Why Us

 1.we have 8 years technology experience, focus on the production of copper sleeve, steel sleeve, sliding bearing and mosaic series bushing, axle bush, product quality is reliable.

2.we are Alibaba contract cooperative partner ,the losses occurred in the process of trade by the Alibaba compensate pays first.We will give you enough sense of security.

3.automation equipment and special machinery production and processing, to ensure the accuracy of the product, saving time and lower labor costs, making products with prices.

4.the number of domestic counterparts, the company jointly formed a large and ample supply base, reliable delivery capability, delivery is guaranteed.

5.support customers more successful as our team belief unremitting efforts, it is the most worthy of your own suppliers in China.

6.free latest offer price, authoritative technical advice, more products and services quickly contact us.
