new bearing products FB090 Bronze-Wrapped bronze bearing
bronze bearing,copper sleeve, steel sleeve,sliding bearing and mosaic series bushing, axle bush choice for ZhiJia Bearing Manufacture Factory who focus on the slide bearing more than 8 years.
bronze bearing Specification

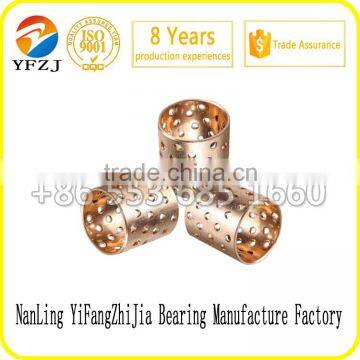

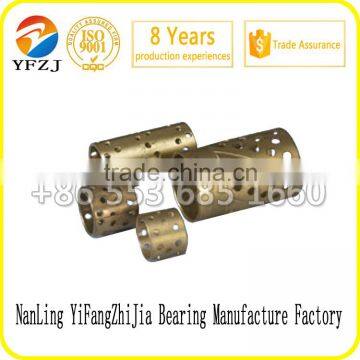

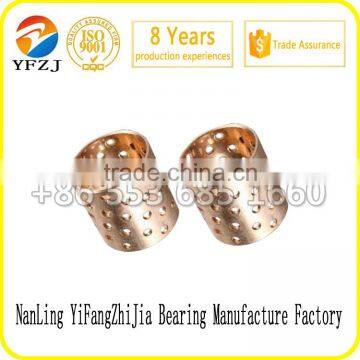

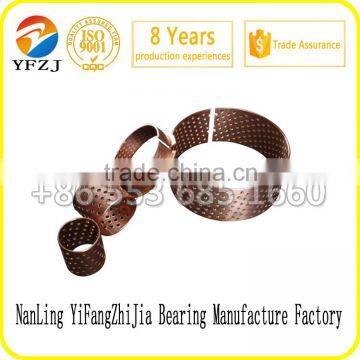

bronze bearing FB090 is a kind of bushes wrapped by bronze strip. The bronze is made as the particular formulation with high specific and gravity, and on its surface may be incorporated with spherical or diamond shaped indentations or/and oil grooves as required by customers. It is of high load capacity and long life, in place of traditional casting bronze bush. It is more cheap and more compact. It is widely applied in hoisting machines and other construction machines, automobiles, tractors, trucks, machine tools and some mineral engines.
bronze bearing Technical Parameters
Density |
8.9g/cm3 |
Hardness |
90-120HB |
Pressure resistance strength |
470N/mm2 |
Elongation |
55% |
Coefficient of heat conduction |
60W/m.K |
Alloy material |
CuSn8P |
Linear expansion coefficient |
18.5 x 10-6/K |
Other material |
CuSn6.5P |
Type |
Category |
Material |
Cu |
SN |
Pb |
Zn |
P |
Other |
|
FB090 FB092 |
Standard |
CuSn6.5P |
Remainder |
6~7 |
--- |
--- |
0.1~0.25 |
<=0.1 |
Special |
CuSn8P |
Remainder |
7~9 |
--- |
--- |
0.01~0.35 |
<=0.2 |
|
Special |
H68(CuZn31Si) |
66~70 |
--- |
<=0.8 |
Remainde |
--- |
<=0.5 |
|
FB08G |
Standard |
CuSn10P b10+Gr |
Remainder |
9~11 |
9~11 |
--- |
--- |
<=0.5 |
FB09G |
Standard |
CuSn6.5P +Gr |
Remainder |
6~7 |
--- |
--- |
0.1~0.25 |
<=0.1 |
Special |
CuSn8P +Gr |
Remainder |
7~9 |
--- |
--- |
0.01~0.35 |
<=0.2 |

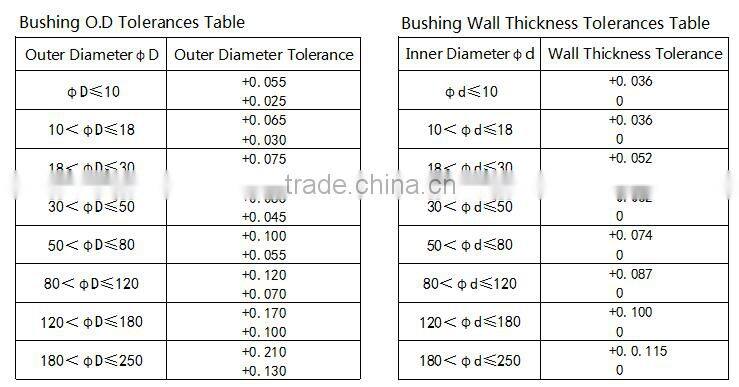

bronze bearing Bushing O.D Tolerances Table
bronze bearing Application Feature

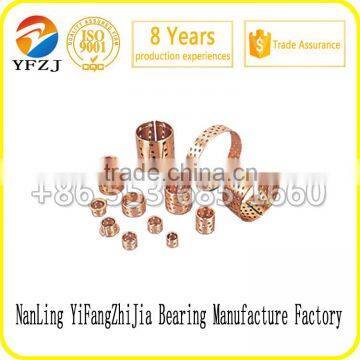

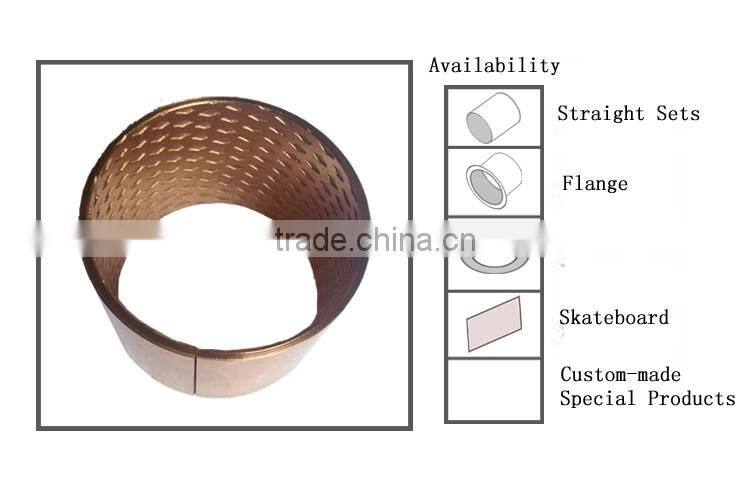

bronze bearing FB090 Bronze-Wrapped Bearing specially formulated high-density copper alloy strip for the substrate, the surface can berequested by the user rolling oil hole diamond shaped or hemispherical sump. Havinghigh density, bearing pressure, wear resistance, long life and other advantages, to replace the traditional castingof copper, can reduce mechanical volume and reduce costs. FB090 has been widely used in lifting machinery, construction machinery, automobile and tractor chassis, the machine tool industry and mining machinery, it can also be made bearings, flanged bushings, thrust washers and bowl
bronze bearing
Packaging Details: Standard export packing, or as customers' requirement.
Delivery Detail: 7-30days
1.we have 8 years technology experience, focus on the production of copper sleeve, steel sleeve, sliding bearing and mosaic series bushing, axle bush, product quality is reliable.
2.we are Alibaba contract cooperative partner ,the losses occurred in the process of trade by the Alibaba compensate pays first.We will give you enough sense of security.
3.automation and special machinery production and processing, to ensure the accuracy of the product, saving time and lower labor costs, making products with prices.
4.the number of domestic counterparts, the company jointly formed a large and ample supply base, reliable delivery capability, delivery is guaranteed.
5.support customers more successful as our team belief unremitting efforts, it is the most worthy of your own suppliers in China.
6.free latest offer price, authoritative technical advice, more products and services quickly contact us.
We believe that if you give us a chance , you will become a VIP!
