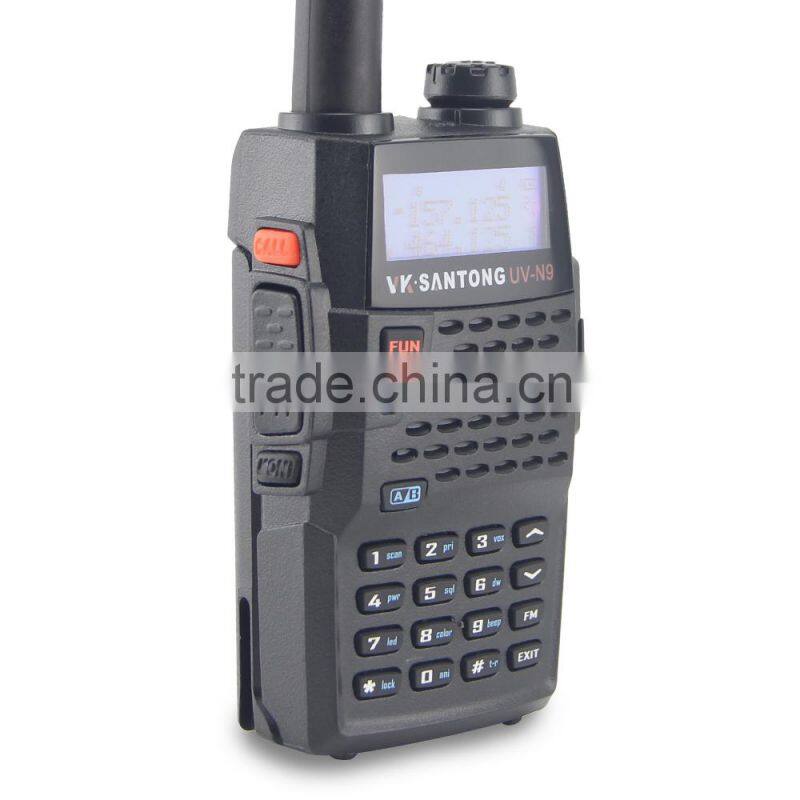

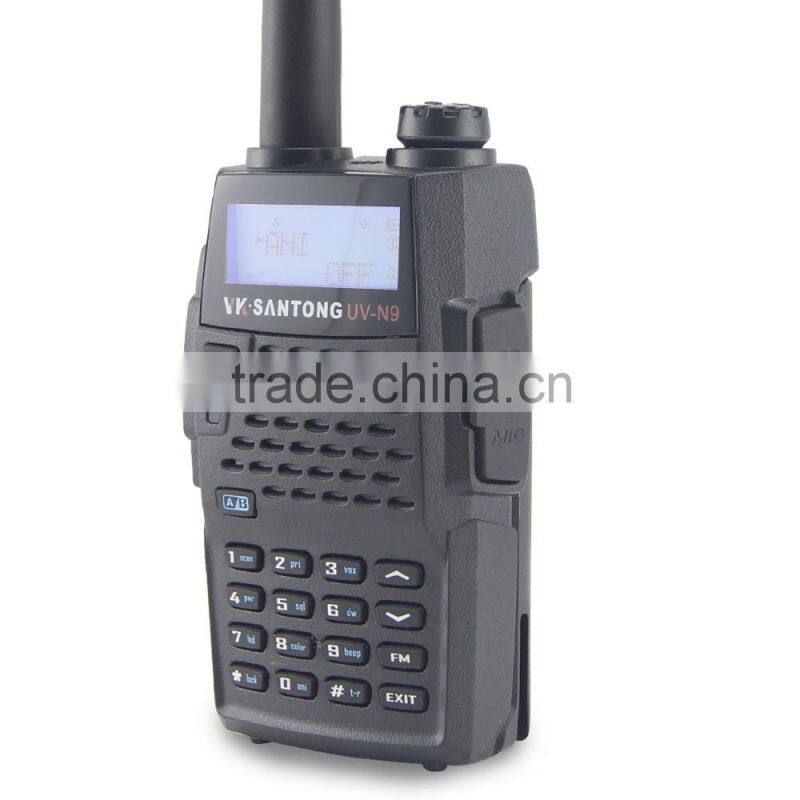

UV dual band transceiver walkie talkie radio for cctv radio interphone
Features
1.Output power: 5W
2.Frequency range: VHF:136-174MHz,UHF:400-470 MHz
3.Dual Band/Standby/Display
4.FM Radio
5.BCL function
6.Battery saving
7.VOX Function
8.DTMF encoding & decoding
9.Emergency alarm
10.High and low power switchover
11.Time-out timer (TOT)
12.Reporting number command of English and Chinese
13.Dimensions: 95x59x33mm(without antenna)
Technical Parameters | |
General | |
Frequency Band |
VHF/UHF |
Frequency Range |
136-174MHz/400-480MHz |
Channel Capacity |
16 |
Channel Spacing |
25KHz |
Antenna Impedance |
50Ω |
Microphone Impedance |
600Ω |
Operating Voltage |
7.4V DC±15% |
Frequency Stability |
±2.5ppm |
Battery |
1800mAh(Polymer Li-ion) |
Compatible With American Military Standard(Mil-STD-810C/D/E) | |
Transmitter(EIA-RS 316B STANDARD) | |
RF Power Output |
≤5W |
Modulation Type |
FM |
Modulation Sensitivity |
<15mV |
Modulation Distortion |
≤3% |
Max Freq Deviation |
<5KHz |
Occupied Bandwidth |
≤16KHz |
Modulation Feature |
±3dB |
Spurious Radiation |
≤7.5μW |
Adjacent Channel Power |
≤-65dB |
Receiver | |
Sensitivity(12db SINAD) |
≤0.15μ(12dB S/N) |
Squelch Sensitivity |
≤0.1μV |
Audio Power output |
1W/16Ω |
Audio Respond |
+2-8 |
Operation Bandwidth |
>5KHz |
Co-channel Rejection |
≥-8dB |
Blocking |
≥85dB |
Adjacent Channel Selectivity |
≥65dB |
Standby Current |
60mA,15mA |
Spurious Rejection |
≥60dB |
Intermodulation Resistance |
≥60dB |

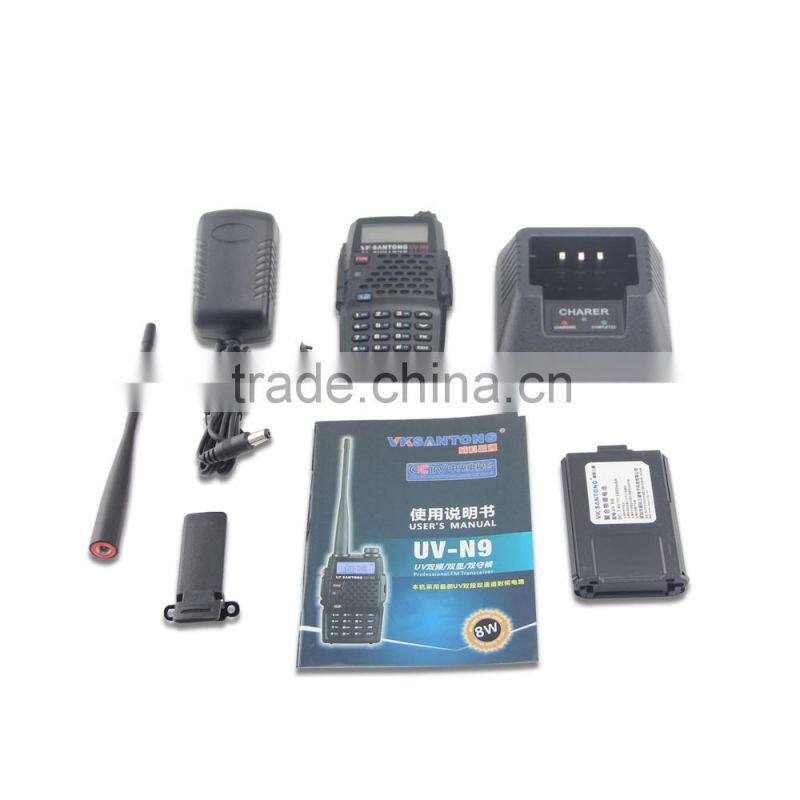

Package inculding:
1*5W walkie talkie UV-N9

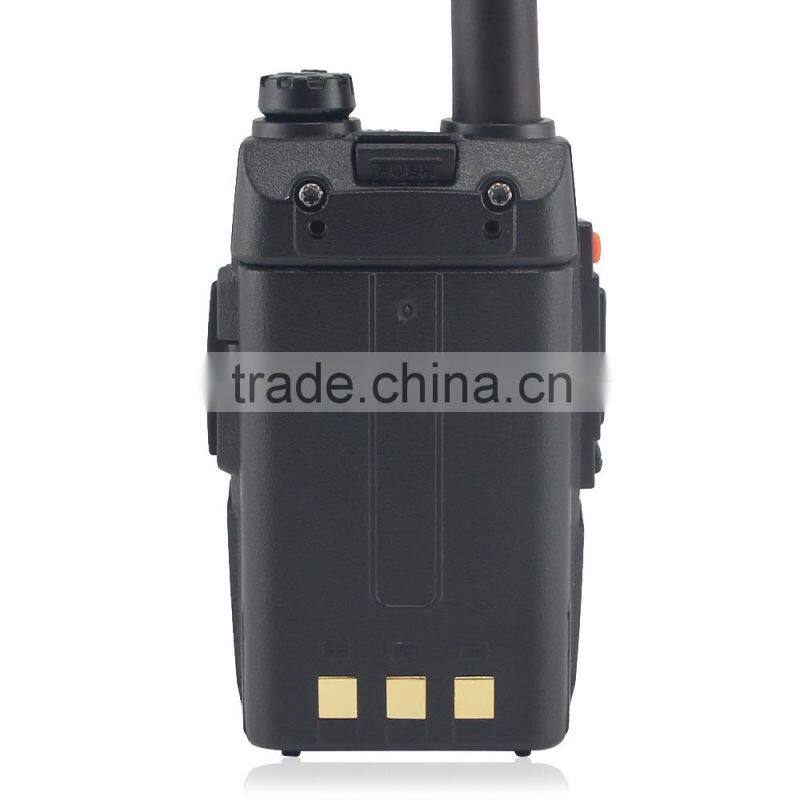

1*1800mAh Li-ion battery pack

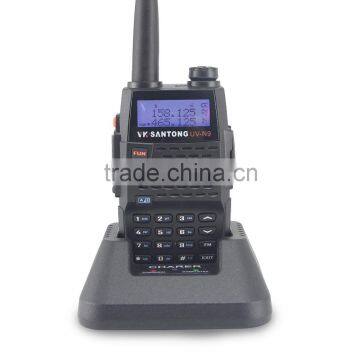

1*Desktop Charger
1*Adapter
1*Antenna
1*Belt clip
1*Hand Strap
1*User Manual
Photos

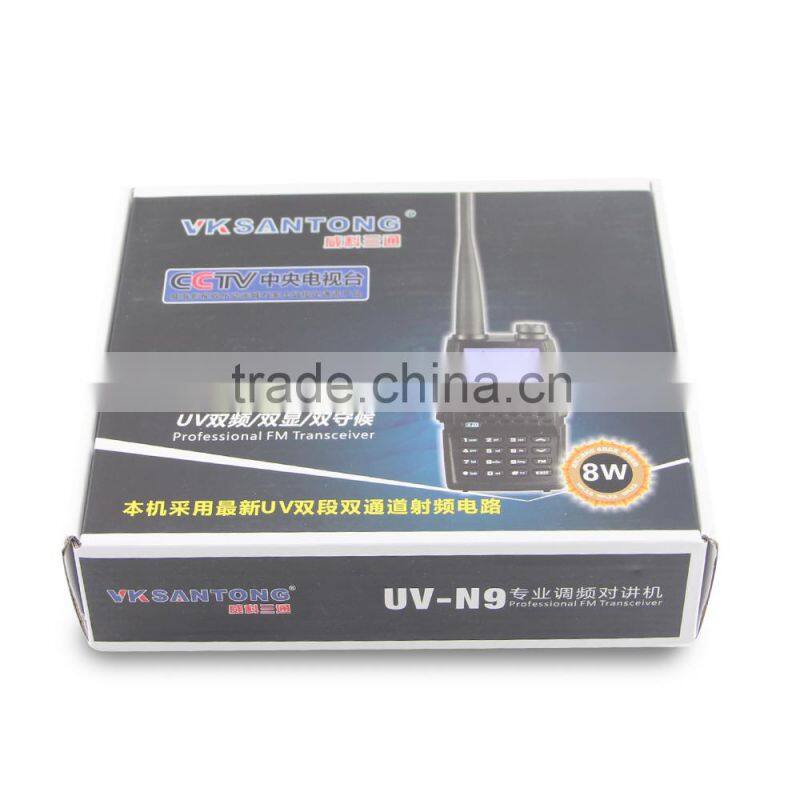

Packaging: Gift box or carton box
Shipping terms:
1-5 working days for sample order
5-10 working days for medium order
10-18 working days for OEM order
1. OEM & ODM serivice offered
2. Sample cost can be refund after order reached 1000 sets.
3. Delivery can via DHL, UPS, FedEx, EMS, TNT, shipping logistic,etc. And post mail for samples.
Warranty:
* Before delivery , we will check the items' quality strictly one by one .
* 12 months for radio body & 6month for accessories warranty, please contact us immediately when you get defective,thanks.
Payment terms:
Payment method: T/T, Western Union and Escrow.
Notice: Please do NOT believe anybody by email say our bank changed, thank you.
Shenzhen VK-Santong Electronics Science & Technology Co., Ltd. is located in LongHua District of Shenzhen City, which was founded in 2000. With competitive price and best quality two way radio products, we established good business relationship with customers all over the world. We are glad cooperate with you, please contact us freely to get more information.
