P/N: SK01 3 pins mini slide switch
interrupteur tactile, takt schalter, interruptor contacto, interruttore tattile, interruptor tacto, interruptor táctil, takt schaltung, herd schalter, intérrupteur
*Applications
MP3,MP4, digital camera,Mobile, Video intercom,Electronic Toy,etc.
*Features
| Enviromental Temperature | -25~+70℃ |
| Relative Humidity | (40°C) ≤ 95% |
| Rated Load | DC 12V 50mA |
| Contact Resistance | 50mΩ max. |
| Insulation Resistance | ≥100MΩ |
| Withstand Voltage | AC250V, 50Hz /min |
| Life | 10,000 cycles above |

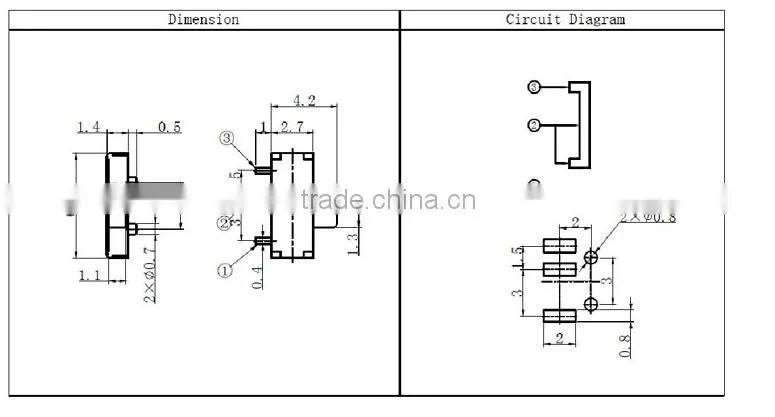

*Dimensions
*Packing Specifications
bulk packing:

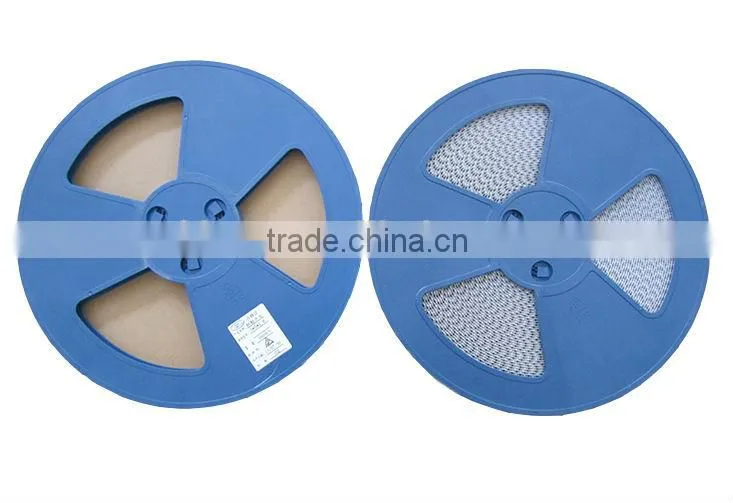

Taping:
* Soldering Conditions
Condition for Reflow
1. Heating method
Double heating method with infrared heater.
2. Temperature measurement
Thermocouple 0.1 to 0.2 Φ CA(K) or CC(T) at solder joints (copper foil surface). A heat resisting tape
should be used for fix measurement.
3. Temperature profile
(1) The above temperature shall be measured of the top of switch. There are cases where PC board's temperature greatly differs from that of the switch, depending on the material, size, thickness of PC board's and others. Care, should be taken to prevent the switch's surface temperature from exceeding 260°C.
(2) Soldering conditions differ depending on reflow soldering machines. Prior verification of soldering condition is highly recommended.
Manual Soldering
| Items | Condition |
| Soldering temperature | 350°C max. |
| Duration of soldering | 3s max. |
| Capacity of soldering iron | 60W max. |
1. Consult with us for availability of TACT switch washing.
2. Prevent flux penetration from the top side of the TACT switch.
3. Switch terminals and a PC board should not be coated with flux prior to soldering.
4. The second soldering should be done after the switch returns to normal temperature.
5. Use the flux with a specific gravity of min.0.81
Use Notes:
1. Terminals to carry our welding, if the load imposed on the terminal, it may be relaxed, deformation and deterioration of the electrical characterisics due to the different conditions, please note that when in use
2. The use of through holes brushes circuit board and other recommended board, due to the heart stress of change, so please pre-conditions on the welding and full recognition.
3. Welding on the set of conditions needed to confirm the actual conditions of mass production.
