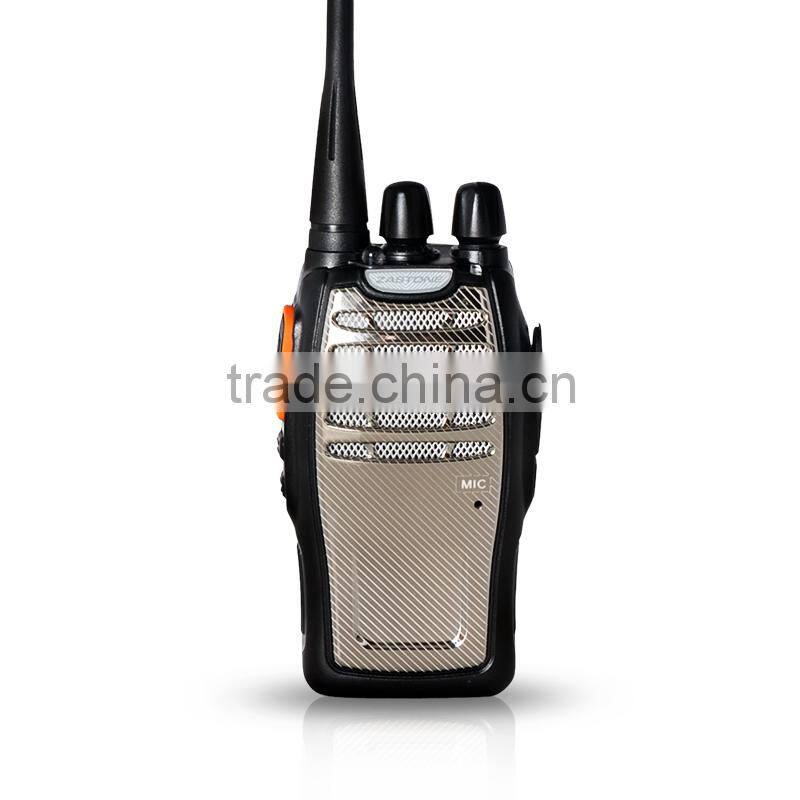

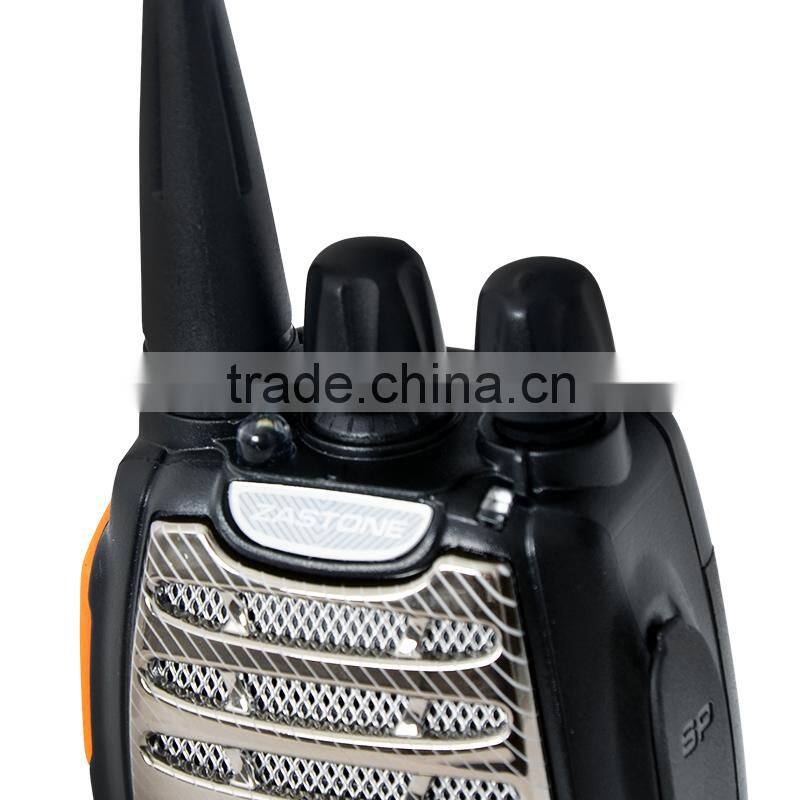

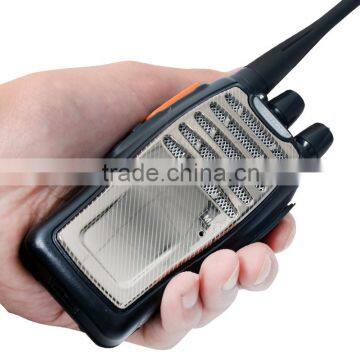

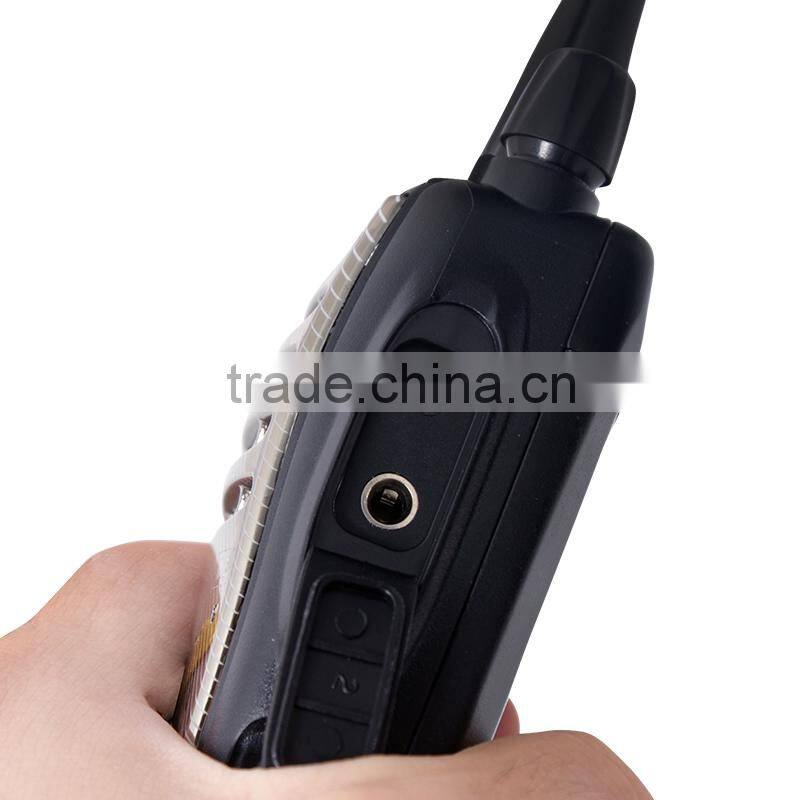

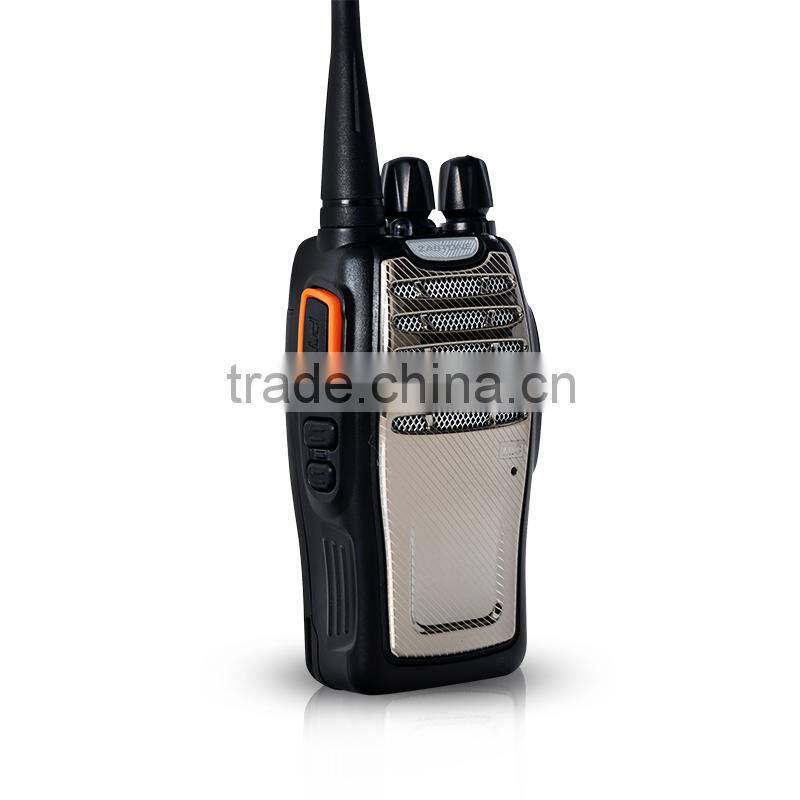

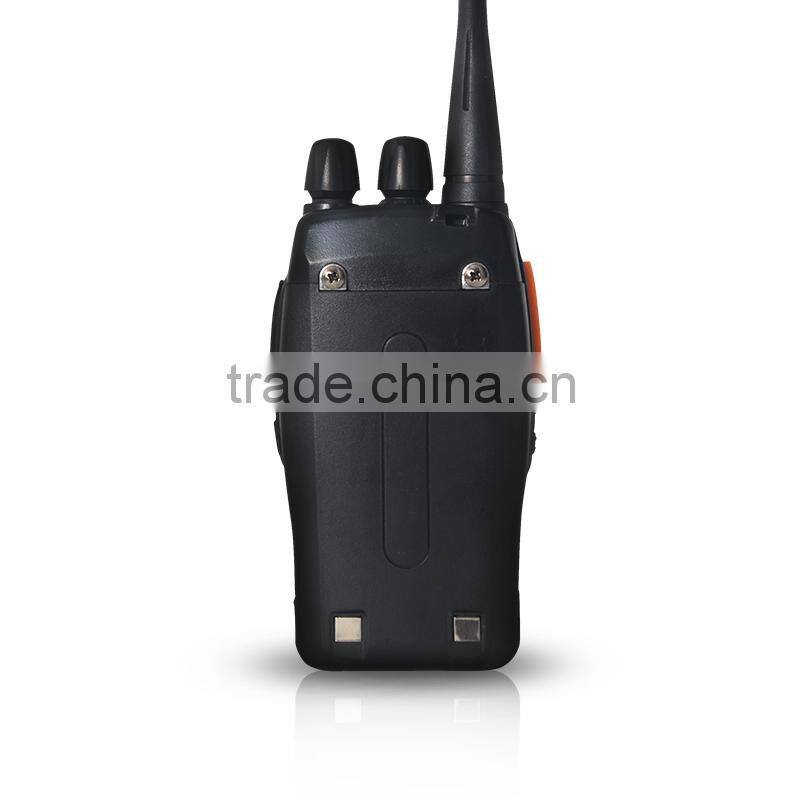

New launch two way radio ZASTONE V65 UHF cheap walking talking
Features: |
1)Output : 4W/1W |
2)Frequency Range:400.00-480.00MHz |
3)Frequency Step Setting |
4)High &Low Power Switchover |
5)Battery Saving |
6)VOX Function |
7)Wide/Narrow Band Selection |
8)Auto-Back Light |
9)Dual Band Standby |
10)Time-out Timer (TOT) |
11)50 CTCSS and 104 DCS Codes |
12)Voice Prompt |
1)Output: 5 W |
2)Frequency Range: 400.00-470.00 MHz |
3)PC Program |
4)FM Radio Function |
5)Voice Prompt |
6)39 CTCSS and 83 DCS Codes |
7)Battery Saving |
8)VOX (Voice Operated Transmitting)Function |
9)Busy Channel Lock |
10)Low Battery Warning |
11)Over Voltage or Low Voltage Protection |
12)Emergency Alarm |
13)Channel Monitor |
14)TOT (Time-out Timer) |
15)Chinese/English Switch |
16)High &Low Power Switchover |
Specification
Frequency Range: |
400.00- 470.00MHz |
Storage Channel |
16 |
Rated voltage |
DC 7.4 V |
Battery Capacity |
H-1800 mAh |
Battery Life |
About 10 Hours |
Frequency Stability |
±2.5ppm |
Work Temperature |
-20 ℃ to +60℃ |
Frequency Combination |
PLL frequency synthesis |
Antenna Impedance |
50 Ω |
Wok Mode |
Same Frequency simplex Operation or |
Different Frequency simplex Operation | |
Dimension |
116x57x 35 mm (Excluded Antenna) |
|
|
Transmitter | |
Output Power |
5 W |
Modulation Mode(W/N Band) |
FM (F3E) |
Maximum Frequency Deviation (W/N Band) |
<5KHz(W), <2.5KHz(N) |
Spurious Power |
≤7.5 µW |
Adjacent channel power |
65dB (W) ,55dB (N) |
Spurious Radiation |
<-60 dB |
Audio Distortion |
<5 % |
SNR |
-52dB(W), -48dB(N) |
CTSCC/DCS Frequency Deviation(W/N Band) |
0.7±0.1KHz (W), 0.4±0.1KHz (N) |
Modulation Sensitivity |
8-12mV |
Transmitting Current |
≤1500mA |
Receiver | |
Sensitivity |
<0.20 µ V (12dB SINAD) |
Audio Power |
1 W |
Inter modulation Interference Resistance |
≥65dB (W), ≥55dB (N) |
Adjacent channel Sensitivity (W/N Band) |
≥65dB (W), ≥55dB (N) |
Audio Distortion |
5% |
Receiving Current |
≤ 400m A |
ZT-V65 Radio *1
Battery *1
Charger *1
Adaptor *1
Antenna *1
Back clip*1
English Manual *1
Shipping terms
1-5 business days for sample order
5-10 business days for medium order
10-15 business days for OEM order
Delivery can be Express:DHL,UPS, FedEx, EMS, TNT; shipping logistic etc & post office for samples
1. OEM & ODM serivice offered
2. Sample's fee can be refund after order reached 1000 sets.
3. Before delivery , we will check the items' quality strictly one by one .
4. 12 months for radio body & 6month for accessories warranty, please contact us immediately when you get defective,thanks.
5. Payment(shown on home page to customer anti cheater ): T/T, Western Union, escrow
below US$1000 accept Paypal payment term
(please do NOT believe anybody by Email say Our bank changed, thank you)
Shenzhen ZASTONE Technology Co., Ltd. is located in Huaqiang North of Shenzhen City, which was founded in March 2004, With Supply competitive price Best quality two way radio products we established good business relationship with customers all over the world. We are glad cooperate with you, please contact Us freely to get more Information,Thank you.
1. Q: What is MOQ(mini Order Quantity)?
A: In general, it is 100pcs. According situation, it is negotiable.you can also place sample order on our aliexpress.
Support Sample Order,welcome to place Sample Order on aliexpress or make dropshipping
/store/702854
2. Q: do you accept Customized?
A: yes,we did produce as customer requirement for Chile Russian Business Partner,OEM & ODM are welcomed.
3. Q: Could you offer free sample to test?
A: Yes, sure. For regular VIP agency we offer free sample when New Products Launch,for New customer you pay the sample fee first when your Order reach required amount we minus the sample Cost for you.
