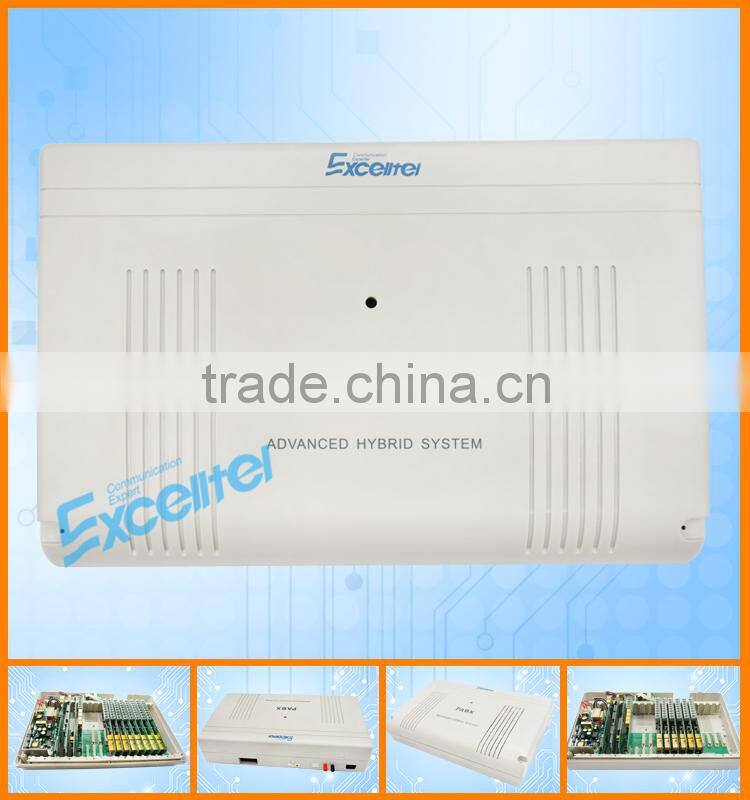

Product Name : Keyphone System
Model : CP1696-856
Capacity : 8 CO lines 56 extensions
| Product detailed | |
| Product Name | Keyphone system |
| Brand Name | Excelltel |
| Model | CP1696-856 |
| Color | White |
| Material | Plasitc |
| PSTN line | 8 |
| Extensions | 56 |
Features
| Keyphone System | ||
| Model | CP1696-856 | |
| Capacity | CO Capacity(Min/Max) | 8 |
| Extension Capacity(Min/Max) | 56 | |
| Expandability | Yes | |
| No. of Port on C.O. Card | 4 | |
| No. of Port on EXT Card | 8 | |
| Wireless expansion Board | Optional | |
| Wireless trunk type (GSM/CDMA) | GSM | |
| Max wireless trunk lines | 1-8 | |
| External Hardware Interface | keyphone interface | Optional |
| Door Phone | Yes | |
| Door lock opener | Yes | |
| External Broadcasting Interface | Yes | |
| External Music on Holding | Yes | |
| RS232 Series port | Optional | |
| Backup Battery Interface | Yes | |
| Operator | keyphone interface | Optional |
| Operator/Auto-attendant Mode | Yes | |
| Operator designation | One/Two | |
| Day/Night Mode(Auto) | Yes | |
| Day/Night Mode(Manual) | Yes | |
| Music & Ringing | Recordable OGM(outgoing messae) | Yes |
| 10 Seconds | No | |
| 20 Seconds | Yes | |
| 50 Seconds | Optional | |
| 60 Seconds | Optional | |
| 90 Seconds | Optional | |
| Internal Music on Holding | Yes | |
| External Music on Holding | Yes | |
| 11 Chord Melody Music Selectable | No | |
| Ringing Assignment(CO-Ext group) | Yes | |
| Ring Identify | Yes | |
| System CRBT | Yes | |
| Caller ID | External Caller ID | Yes |
| Transfer Caller ID | Optional | |
| Intercom Caller ID | Yes | |
| Call Operation | Call Transfer | Yes |
| Call Forwarding | Yes | |
| Outgoing Call Transfer | Yes | |
| CO to CO Transfer | Yes | |
| Call Switch (pickup in conversation) | Yes | |
| Call Pickup (External call) | Yes | |
| Call Pickup (Internal call) | Yes | |
| C.O. Line Reservation(Call waiting) | Yes | |
| C.O. Line Booking | Yes | |
| Specific C.O. Line Dialing | Yes | |
| Call All Extensions | Yes | |
| Three Way Conference | Yes | |
| Do Not Disturb | Yes | |
| Auto/Manual Dial-Out Mode | Yes | |
| Internal Hot Line | Yes | |
| Internal Fast Dialing | Yes | |
| Abbreviated Dialing | Yes | |
| Auto IP Dialing | Yes | |
| Private Password | Yes | |
| Redial in Indirect-dailing-out mode | Yes | |
| Billing & Management Software | Billing Software (include program) | Optional |
| Reverse Polarity Signal | Yes | |
| Alarm clock | Yes | |
| Other Feature | Call Restriction | Yes |
| Call Duration Control | Yes | |
| C.O. Line&Exts Monitor | Yes | |
| Exts. Groups | Yes | |
| External Line Group | Yes | |
| Ringing Assignment | Yes | |
| Real Time Clock | Yes | |
| Intelligent Routing(LCR) | Yes | |
| Flexible coding(change Ext.No.) | Yes | |
| Automatic Ext. Reporting | Yes | |
| Flash Time Choice | Yes | |
| System Password | Yes | |
| Automatic C.O. Line Detection | No | |
| Remote Programming | Yes | |
| Memory Protect while Power off | Yes | |
| Multiple Communications Channel | 16 | |
| Fax Detection | Optional | |
| Power Failure Transfer | No | |
| Lightning Protection | Yes | |
| Housing Material | Plastic | |
| Power supply | Normal Transformer Power | No |
| Switch Power | Yes | |
| Backup Battery Interface | Yes | |
Packing detail
Weight: 6.0 KGS/PC
Quantity: 3 pcs in one carton

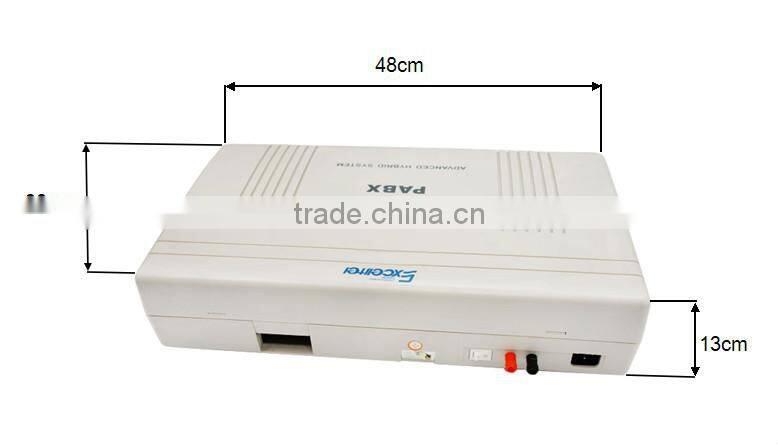

Gift box size: 48.8*31 *11 cm
Carton size: 61*53*39.5cm
About shipping
- WORLDWIDE SHIIPPING
- Orders processed timely after and the payment verification
About Guarantee
1 year manufacturer’s limited Warranty for defective items (excluding items damaged and /or misused after receipt.
Excelltel Technology CO., Ltd
Excelltel Tech Co Ltd,a professional PABX designer and manufacturer in China. We work in PABX field over 15 years and our core business cover from R & D, production and marketing of different types of PABX. Our PBX range multiple levels, including small & simple PABX, hotel PBX, GSM wireless PBX, Key phone hybrid PBX, large digital PBX etc... the C.O line range from 1-16, extension range from 6-128. We also provide PBX accessories, like key phone, analog caller ID phone, headset phone, door phone, recording system etc...Till now Excelltel PABX already been exported to over 50 countries and won good reputation.
All of our PABX is originally designed by ourselves, SMT technology, our factory plant area is around 3000 sqm, 100 workers and office staff. We have an excellent R&D team, most of whom work in telecommunication field over 15 years. We make OEM/ODM for many oversea buyers and China dealers.
