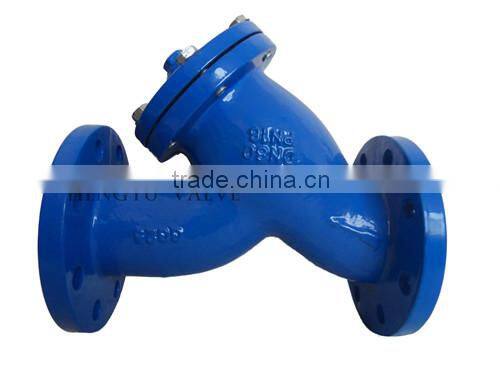

flange end DN50-DN1400 ductile iron y strainer
Feature:
1. BSPT blowoff outlet on cover are finished with plugs;
2. Screens are performated 304 stainless steel with spot welded seam;
3. Recessed seat in body assures accurate screen alignment.
4.With flange EN1092-2 PN16/PN25, other types are available.
5. Face to face dimension in accordance with DIN3202 series F1.
Working pressure:
16 bar for size DN50 to DN600.
25 bar for size DN50 to DN300.
Working temperature:
-10℃ to 120℃
Corrosion pretection:
Internally and externally liquid epoxy painted or fusion boned epoxy powder coated(FBE).

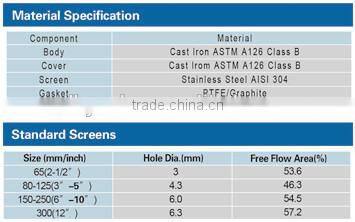

| Material spec.: | ||
| part name | material | |
| body | cast iron/ductile iron | |
| cover | cast iron/ductile iron | |
| screen | stainless steel | |
| gasket | teflon/EPDM/graphite | |
| plug | cast iron/ductile iron | |
| standard screen | ||
| size | hole dia. | free flow area |
| DN50 to 80 | 1.5mm | 33% |
| DN100 to 600 | 3.0mm | 40% |
BY HIGH QUALITY BUBBLE PLASTIC BAGS, THEN IN WOODEN CASES

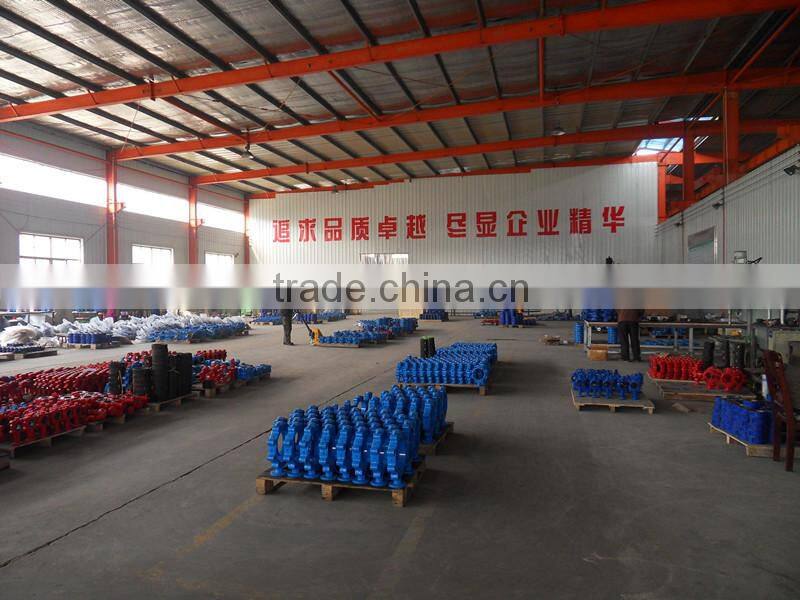

We are a Chinese valve manufacturer, named Ningjin hengyu valve Co., Ltd, it is a professional manufacturer and designs all kinds of industrial valves and marine valves. Aimed at offering best quality and service for our customer, the company make production and management strictly in accordance with ISO9001: 2000 quality system. We have already achieved ISO9001 and CE certificate, and DNV certificate.
Our mainly products are butterfly valve, check valve &Y-strainer, also we produce ball valve, gate valve, globe valve, air release valve, rubber expansion joint, Y-strainer and stainless steel pipe fitting, expansion joints, aluminum die casting and various pipe fittings and other products comply with international ANSI / API, JIS, DIN, BS, NF and GB standards requirements for customers with better and convenient services
Nowdays our product has been exported to Spain, America, Italy, Germany and Norway etc. Under the market diversification demand situation, our company will, as always, provide our customer the first-class quality, competitive price and good delivery cycle and perfect service.
Certificates: ISO9001, CE
