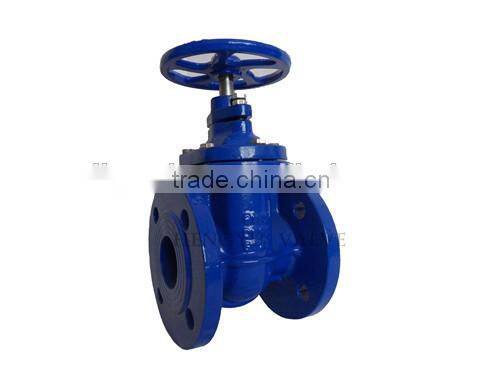

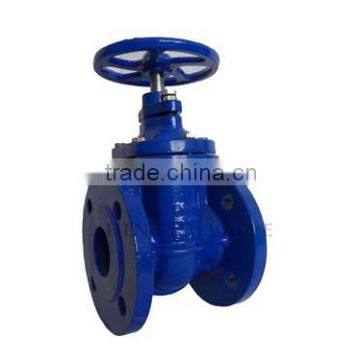

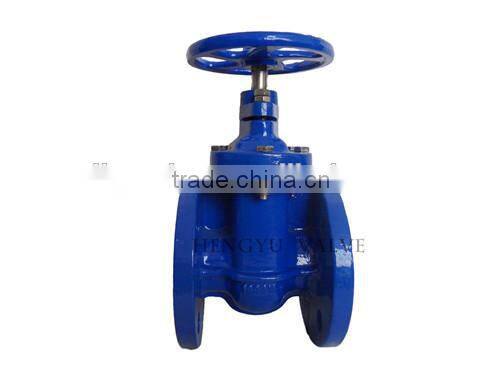

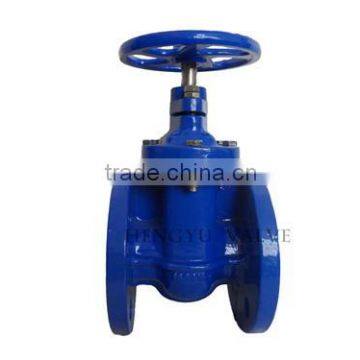

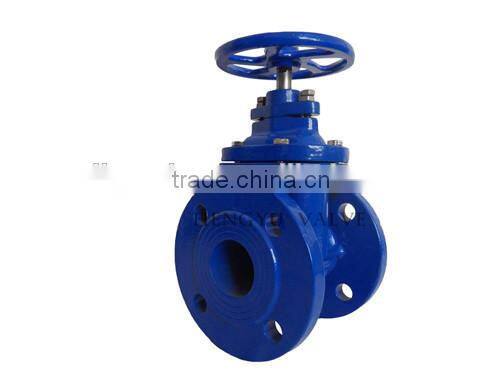

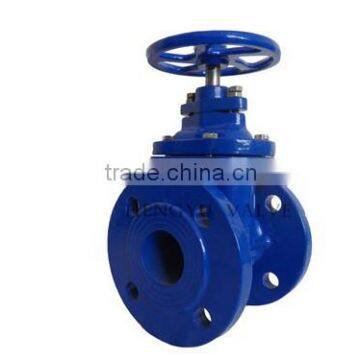

OS&Y resilient sealed gate valve
Feature:
1.Valve comply with AWWA C515
2. The handwheel is attached to the yoke by a heavier nut.
3.NPT brass plug on body.
4. One brass plug screwed on body.
5.High quality graphite stem seal.
6.Flange EN1092-2 PN10/PN16,ANSI B16.1 CLASS125(others available on request).
Working pressure:
200PSI.
Working temperature:
0.6 ℃ to 52℃
Corrosion protection:
internally and externally liquid epoxy or fusion bonded epoxy powder coated(FBE).
Part material:
Body: ductile iron
Wedge: ductile iron EPDM encapsulated
Wedge nut/stem: stainless steel
Bonnet: ductile iron
Gasket: EPDM
Packing: graphite
handwheel: ductile iron
NPT plug: brass
Gland bolts:stainless steel
Bonnet bolts: carbon steel

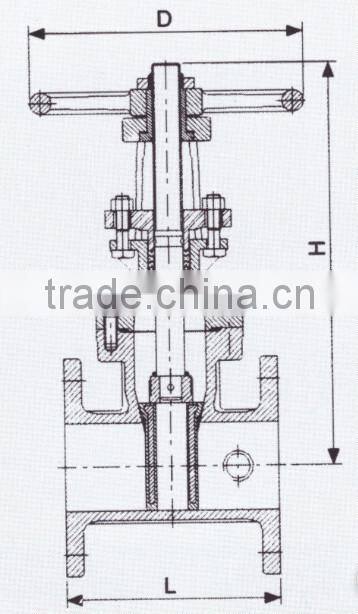

| dimmension | ||||||||
| size | 2.5" | 3" | 4" | 5" | 6" | 8" | 10" | 12" |
| L | 190.5 | 203 | 229 | 254 | 267 | 292 | 330 | 356 |
| H(open) | 415 | 480 | 550 | 655 | 740 | 930 | 1130 | 1320 |
| H(close) | 350 | 400 | 450 | 530 | 590 | 730 | 880 | 1020 |
| D | 184 | 254 | 254 | 305 | 305 | 356 | 445 | 445 |
| weight(kg) | 20 | 25 | 30 | 42 | 50 | 77 | 120 | 170 |
Size: 2.5",3",4",5",6",8",10",12".
Weight: 2.5": 20kg;
3":25kg,
4":30kg;
5": 42kg;
6": 50kg;
8": 77kg;
10": 120kg;
12": 170kg.
Packaging & Shipping
(bubble) plastic bags in kraft carton,wooden cases or as clients'requirements.
Professional research team, high quality products, competitive price, sincere service.
Aimed at offering best quality and service for our customer, the company make production and management strictly in accordance with ISO9001: 2000 quality system. We have achieved already ISO9001 and CE certificate, and DNV certificate, will also achieve others soonest possible.
Nowaday our product has been exported to Spain, America, Italy, Germany and Norway etc. Under the market diversification demand situation, our company will, as always, provide our customer the first-class quality, competitive price and good delivery cycle and perfect service.
Mainly produces butterfly valve, check valve, ball valve, gate valve, globe valve, Y type filters, expansion joints, aluminum die casting and various pipe fittings and other products comply with international ANSI / API, JIS, DIN, BS, NF and GB standards requirements for customers with better and convenient services
