Specifications
30w street led lightLuminous efficiency:105-115LM /W
Power factor>0.95;
3 years warranty
CE&RoHS;E27/E40 base
Features of street led light
1. Input Voltage: DC12,24V,36V / AC85-265V/ 277VAC (12VDC is workable with solar system)
2. Power Factor: >0.95

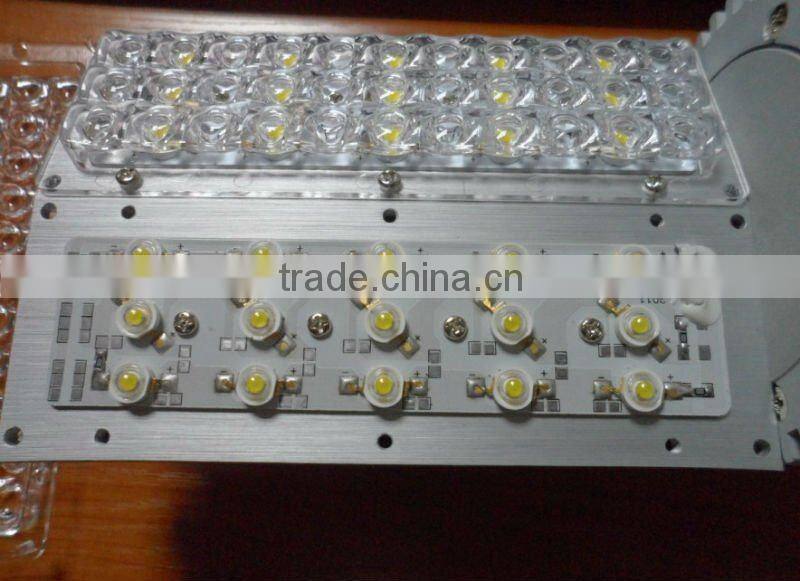

3. LED Consumption: 30W ( 30pcs 1w high power led), Total Watt: 35W
4. LED Luminous Efficiency: >110LM/1W
5. LED Initial Flux : 3000Lm
6. Average Illumination: 23Lux-6m, 13Lux-8m
7. Effective llluminated area: 30*12sq.m. -6m , 35*14sq.m. -8m
8. Color Temperature: 3000-4000K warm white, white 5800-6500k
9. Color Rendering Index : Ra>85
10. Light DistributionCurve/Beam Pattern: Asymmetric(Bat Wing/Rectangular Beam
11. IP Rating: IP65
12. Working Life: > 50,000hrs
13. Light Body& Lampshade Material : Aluminum
14. Net Weight : 1.3kg
15. Size: 105*265mm
16. Base: E39/E40 or E26/E27
Specifications of street led light
ItemNumber |
PL-LD-30W |
Input Voltage |
DC12/ DC 24V/ AC85-265V, 277VAC |
Power Factor |
>0.95 |
LED Quantity |
30pcs |
LED Consumption |
30W |
Rated Power |
35W |
LED Luminous Efficiency |
>110LM/1W |
LED Flux |
3000Lm |
Color |
warm white, white, red, green, blue, yellow |
Color Rendering Index |
Ra>85 |
View Angle |
180D |
Working Life |
>50000hrs |
Material |
Aluminum Alloy |
Size |
(Dia)105x265mm(L) |
Weight |
1.3KG |
Socket |
E39/E40 or E26/E27 |
Feature of street led light

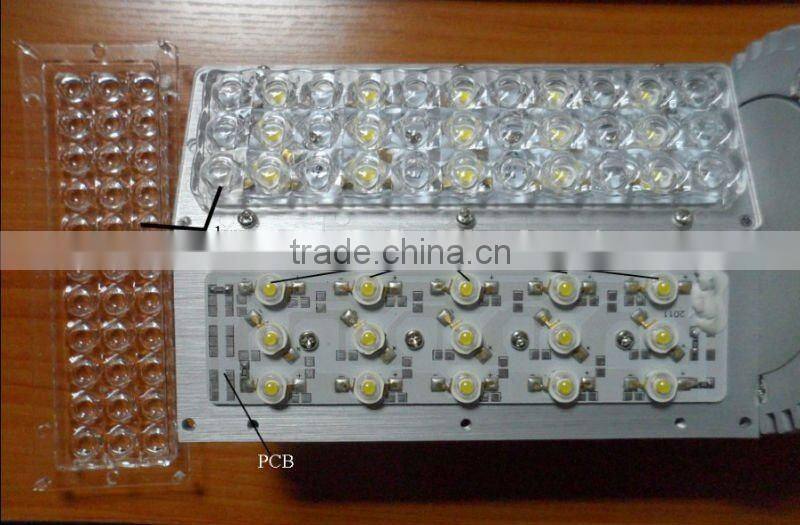

The lights applied with best light source-LED. Accelerated the unique reflector which was developed by us ourself,it
attains the light onto the road with maximum effect and formed a rectangular light spot.The entire light was made of
the aluminum alloy with high index of the heat dissipation,the oxidize surface also ensured the heat dissipation
reliability.Meanwhile the lamp has been designed a respiratory system to ensure the dust resistance,water resistance and self cleaning ability
Application of street led light
The lights mainly applied in high-way ,urban major road ,secondary road,plaza,park,industry zone,residence area etc
