High Power Street Illumination is a new series of energy saving products that utilize high power LEDs as effective lighting source to traditional illumination, such as LPS, HPS, or MH street lights.
This smart, "greener" option for outdoor lighting has emerged on the green scene due to the recent technological advancements of LED Street lamp Illumination
Product Features(led street light/street led light/street light led)
1. More than 70% energy saving
2. Single LED design, convenient for maintenance
3. High quality led with light effiency 110-120lm/w
4. Universal input voltage: AC 85-264V,12v,24v
5. High quality power supply, reliable and stable, automatically reduce current against overheating temperature
6. Unique optical design & rectangular beam, suitable for roadway illumination
7. Can be used in wide range such as main street, high speed way, square, and etc.
Drawing
General Characters of led street light
Model NO.: |
PL-LD-RT112W-street light led |
Light lamp Source |
Epistar |
LED Quantity |
112pcs*1W |
Power consumption |
105W |
Input power |
AC85-265V |
Luminous Flux: |
110-120lm/W |
COLOR Rendering Index(CRI) |
Cold White Ra>70 Warm White Ra>75 |
Color Temperature: |
Warm White 2700-3500K Pure White 4000-5000K Cold White 6000-7000K |
Operation Temperature: |
-35°c→+50°c |
Power Factor |
>0.90 |
Frequency range (Hz): |
47--63Hz |
Total harmonic distortion |
<15% |
Power efficiency |
85% |
Storage Temperature: |
10°C~85°C |
IP Rating for street lamp: |
IP65 |
Average illumination intensity grade(E) |
6M Height 24*10m >39LUX 9M 30*12m >21LUX 12M 35*16m >14LUX |
Material: |
Aviation aluminum +Tempered glass |
Size: |
610x310x80mm |
work life: |
50000HRS |
N.W. |
11 kg |
Certification |
CE/LVD,CE/EMC, RoHs |

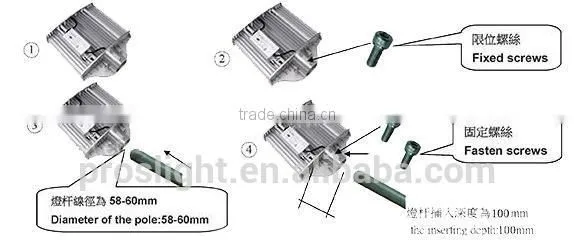

Led street lamp Installation
- 1. Insert the Power wire into the pole
- 2. Fasten the fixed screws
- 3. insert the pole into the lamp
- 4. fix the position of the lamp and then fasten the screws
Typical Applications of led street lamp
* Tunnel, Subway lamp;
* Gymnasium, Sports Stadium Lighting;
* Gas Station, Garage light;
* Park, Garden Night light lamps;
* Workshop, Factory Lighting;
* Warehouse, Storage Lights;
* Yard, Square Night Lighting;
* Road, Highway light;
* Station, Dock Lights etc
Accessories of led street light:
High power newest design led street light,street led light,street light led :
- 5 pcs per carton,gross weight:9.5KG/piece
- 3-5 work days
1..OEM/ODM service(our company will offer odm design with high quality and reasonalbe price for led street light
2.great after sales service(most of our products has at least 2 years warranty and for some items,have 5 years warranty)
3.offer hot sale and new design for1112w led street light/street led lights/street light led lighting
Pros Light Co.,Ltd is a well established high-tech firm specialized in production, R&D and marketing of led lighting products.
All of our products has passed ce/rohs certificated and for some items have UL,DLC certificate.
For more information about 60w 70 watt 80w 100w 120w 150w 198w led street light fixtures/street led light/street light led/led street lamps/led street lighting,please feel free to contact us.
1.Questions: How will the new led street lights affect major street safety?
=>Answers: with high levels of reported crime are lit to an agreed standard and that advice is given to local residents in helping to report and tackle crime
2.Questions: Why is the city installing LED street lighting throughout the city?
=>Answers:the city’s street light fixtures using the more-efficient ,LED technology is part of the city’s Sustainability Initiative.
3.Questions: What is the advantage of led street light fixtures?
=>Answers:
- LED technology offers greater levels of “color rendering” than the older technology.
- More effectively be “aimed” to light the roadway. Roadway lighting always has been intended to illuminate the sidewalk and roadway areas By directing the light to areas more effectively with LEDs, the city can prevent lighting other areas, such as back yards, side yards, etc.
- The city has chosen LED lamps that generate less glare to the human eye, which will enhance safety of pedestrians and drivers in our community.
4.Questions: Will there be a reduction in carbon emissions by using this led streetlight?
=>Answers: Carbon emissions will significantly reduced as a result of the energy savings
5.Questions: What is the expected life compared with existing fittings/lamps?
=>Answers:LED luminaires and drives is approximately 50 000 hours compared with 20 000 hours of MV and 30 000 hours of SV lamps which are being used currently
