High Quality Suspended Led Panel Light 120x30 cm

Pros Light Co., Ltd. (Shenzhen)
High Quality Suspended Led Panel Light 120x30 cm thumbnail-1
High Quality Suspended Led Panel Light 120x30 cm thumbnail-2
High Quality Suspended Led Panel Light 120x30 cm photo-1
High Quality Suspended Led Panel Light 120x30 cm photo-2
US$ 10 - 20 MOQ: 200 Pieces
Key Specifications
Get Latest Price
LED Light Source:
SMD 2835
Warranty(Years):
2
Input Voltage(V):
100-240v
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
SZ
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source SMD 2835
Warranty(Years) 2
Input Voltage(V) 100-240v
Lamp Power(W) 38
Lamp Luminous Flux(lm) 3000
Lamp Luminous Efficiency(lm/w) 80
Color Temperature(CCT) Other, white,warm white,cool white,nature white,commercial white
Working Temperature(℃) -25, 50
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
IP Rating IP33
Certification CE, EMC, LVD
Place of Origin Guangdong, China
Brand Name pannel led
Model Number PL-P-PAB-led panel 120x30cm

Product Description

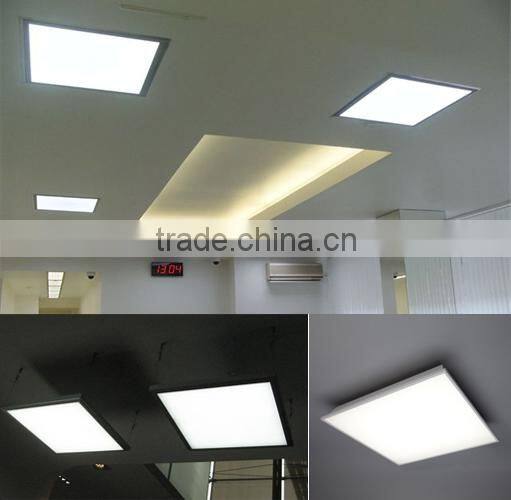

high quality suspended led panel light 120x30 cm

high quality suspended led panel light 120x30 cm

This backlight LED panel 60x60 light is a kind of elegant indoor lighting lamp.Adopt sheet metal forming process with white paint surface treatment, embody a perfect texture;



Its light source is adopted with SMD2835 and the light becomes equally and with good color tolerance after adopting the high transparency PMMA diffuser plate.



The Backlight LED panel lights are mainly applied to commercial lighting, home lighting
and office environment.

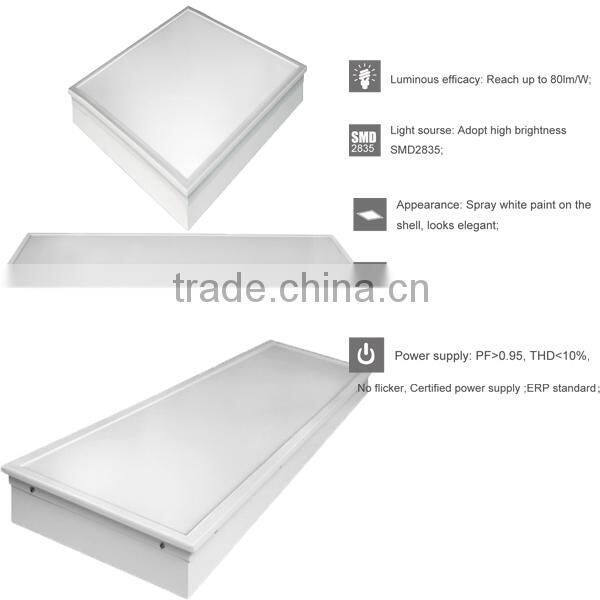

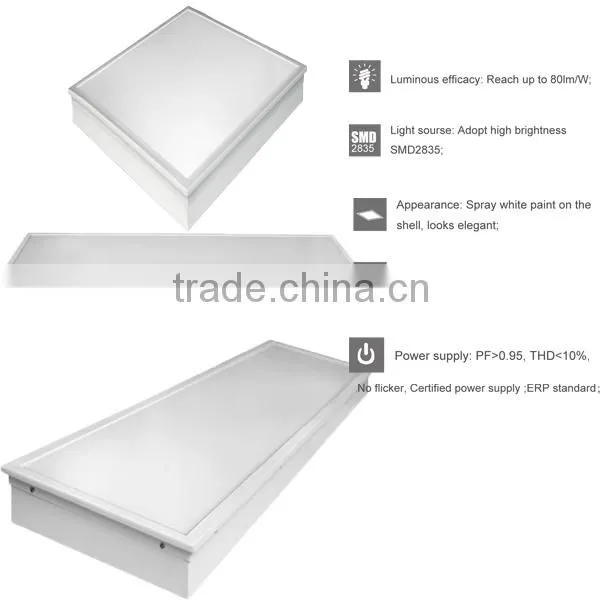

Feature of led panel 2x4 ft:



  • Luminous efficacy: Reach up to 80lm/W;
  • Light sourse: Adopt high brightness SMD2835;
  • Power supply: PF>0.95,THD<10%,Surge>2KV.
  • Appearance: Spray white paint on the shell, looks elegant;
  • Production Capacity: 300,000pcs per month
high quality suspended led panel light 120x30 cm

Specification of led panel 2x4 ft :

Item No

Power(W)

Light Output(lm)

Lighting Intensity(lx)

Size (mm)

1M

2M

3M

Panel-30x120

38

3000

1150

300

150

295*1195*56

Panel-60x60

36

2900

1150

300

150

595*595*56

Panel-60x120

54

4050

1600

400

200

595*1195*56

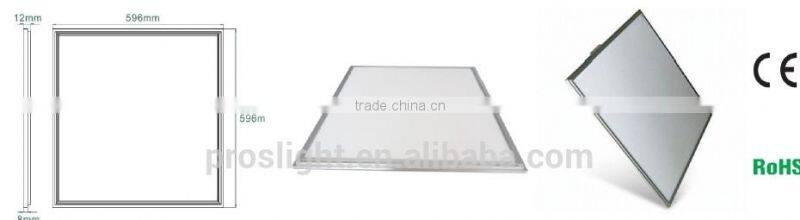

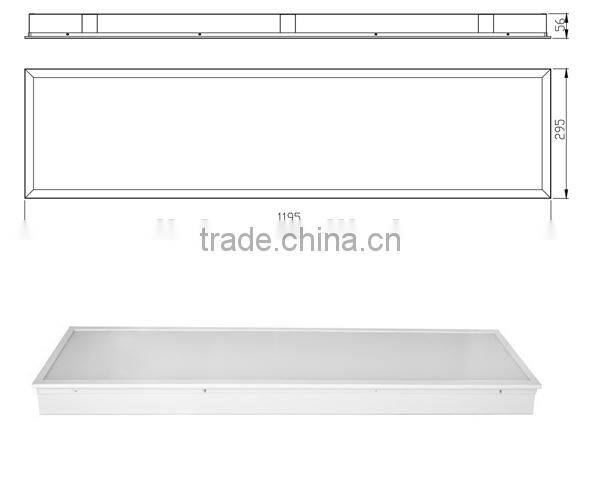

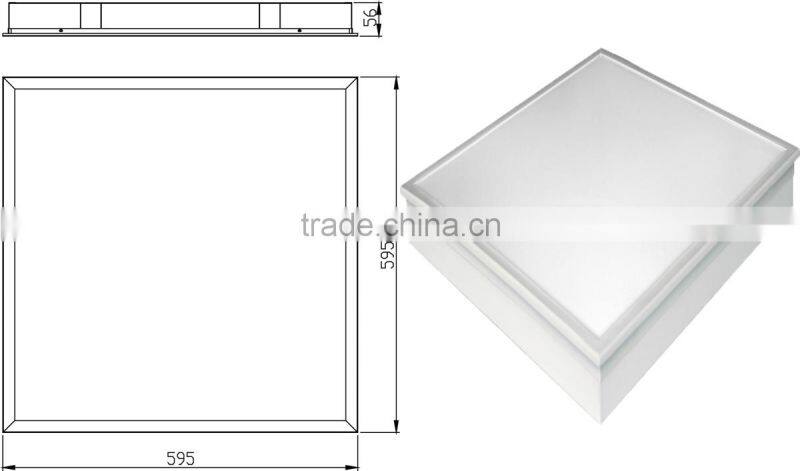

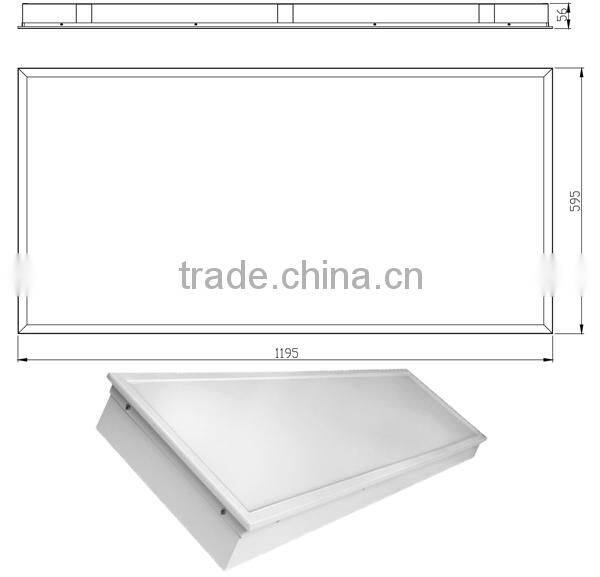

Dimension drawing for size 120x30cm,120x60cm,60x60cm:
high quality suspended led panel light 120x30 cmhigh quality suspended led panel light 120x30 cmhigh quality suspended led panel light 120x30 cm

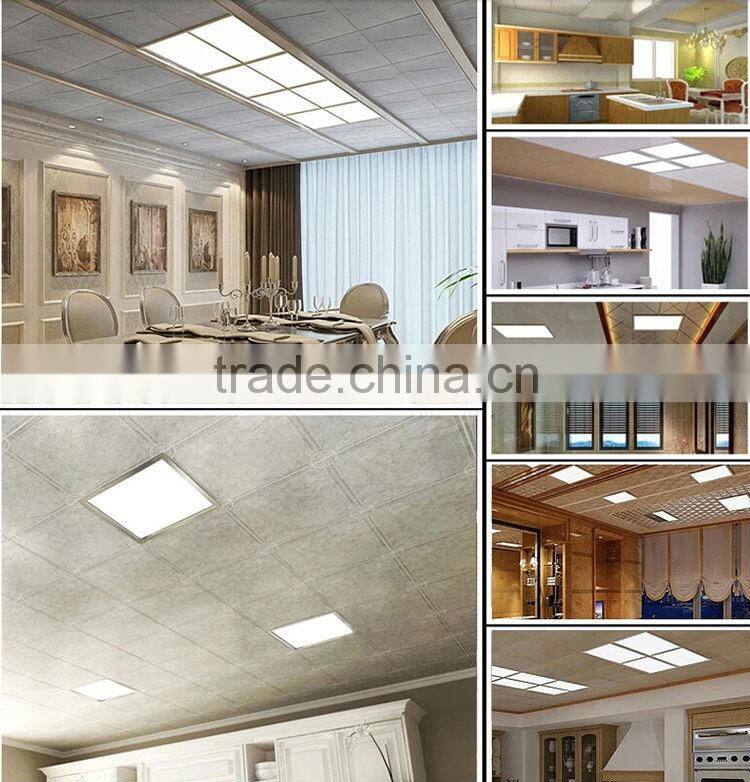

 Application of led panel  :

1.offices,conference rooms,metting romms,factories

2.Residential lighing:living romms,bedroom

3.Commercial lightin:hotesl,shops,stores

4.Shcools,colleges,universitis,hopitals

high quality suspended led panel light 120x30 cm

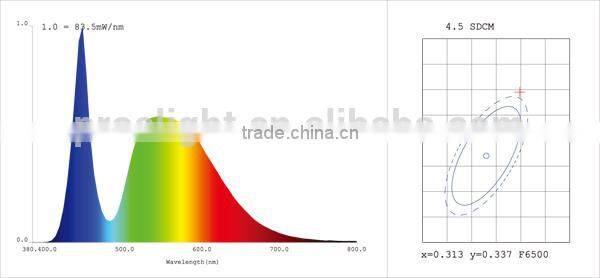

Light Source Test Report

high quality suspended led panel light 120x30 cm

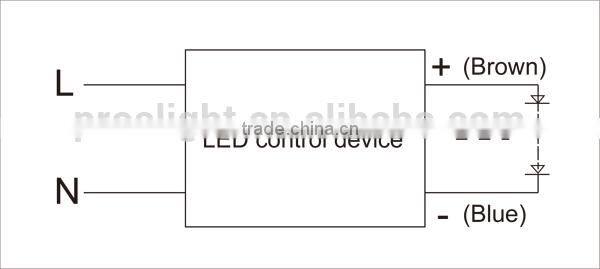

Wire connection photos

high quality suspended led panel light 120x30 cm

Installation of led panel 60x120 cm

A.recessed installation
1.  cut a hole with suitable size on the ceiling, and set the T-shape keel beam in advance(please refer to the products cut hole
size table);
2. make the lamp house installed in the hole, then connect the electric supply L,N electrodes to the related Led controllers' L, N.;
3. set the lamp body steadily on the T-shape keel beam, turn on the power;
Attention: if your T-shape keel beam cannot be able to bear the lamp's weight or any other risks, please add the steel ropes to guarantee
the installation’s stable.


B.surface mounted installation
1. set the steel ropes fixed on the ceiling.
2. set the steel steel ropes connected to lamp house stability, then adjust the rope length to make the lamp house on horizontal position.
3. connect the electric supply L,N electrodes to the related Led controllers' L, N.
4. turn on the power
Attention: The led light source cannot to be replaced, please do not open the lamp body or unscrewed the screws among the LED light source, or
the heating performance of the LED light source will be influenced, make the lifespan shorter, even the led burnt.
Caution:the lamp body cannot be able connected to the AC Commercial power directly, must via the led controller to supply.



high quality suspended led panel light 120x30 cm

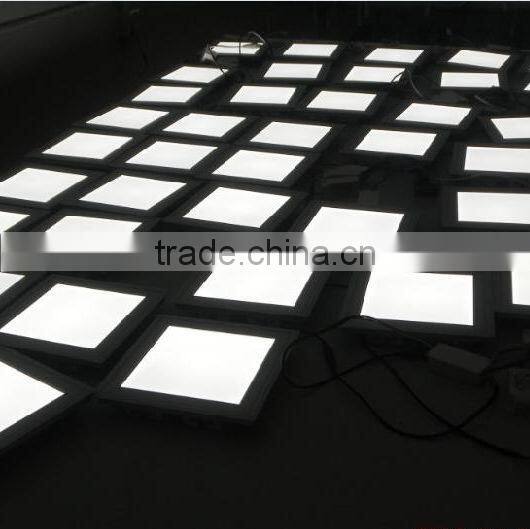

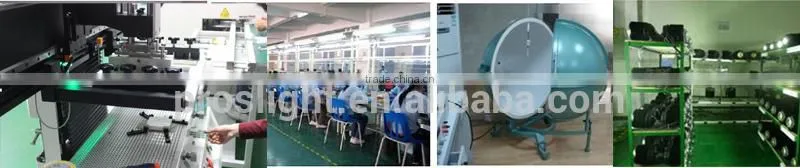

 Aging test picture:

high quality suspended led panel light 120x30 cm

 Accessories

Company Information
Slim type led panel 600x600:
3 years warranty with samsung G2 5630 LED ,can be with Hunging kit



high quality suspended led panel light 120x30 cm

Company Information

high quality suspended led panel light 120x30 cm

Pros Light Co.,Ltd is a well established high-tech firm specialized in production, R&D and marketing of led lighting products.



Our main products are led street light, led floodlight, led explosion-proof light, led high bay light, led panel, led spot light, led tube and so on.



For more information about led panel 600x600,led panel 60x60,60x60 cm led panel lighting,surface mounted led panel light 120x30cm,led panel 4x2 ft,recessed led panel light,please feel free to contact us.

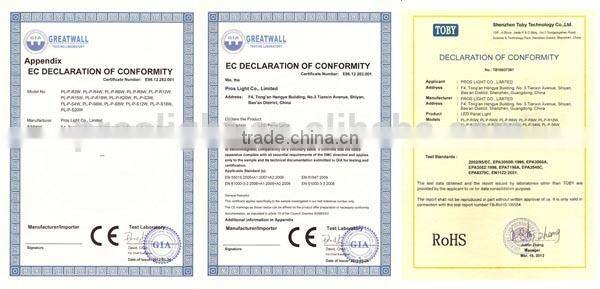

Certifications

ce rohs certificate for led panel 60x60

high quality suspended led panel light 120x30 cm
