Many SMD5630 LEDS around the frame, the mixed soft light is transmitted from the PMMA panel
This led light panel is with constant current driver, it will be stable to use.
rgb 60x60 cm led panel lightsFeature
1. Input voltage 110-240VAC with outside Power supply
2. Panel Input voltage 24V DC
3. Full color available
4. Super thin Panel 10.4mm, 4 size: 300X300, 600X300, 1200X300, 600X600mm
5. Dimmerable or change color with Pros Light DC dimmer and Controller
6.2-way mounting- wall mounted and suspension installation
7. Ultra-Efficient LED Lighting(eco-friendly, lower power consumption)
8. Beautiful, Comfortable Light (colors fully revealed)
9. No Hotspots, No Glare
10. UV-protected, safe to use
11. Long Lifespan, usally >10, 0000 hours
12. RA>80
- Ø Applications:
1. Hotels
2. Conference/Meeting rooms
3. Factories& Offices
4. Commercial Purposes
5. Residential/Institution Buildings
6. Schools, Colleges& Universities
7. Hospitals
8. Places where energy saving and high
color rendering index lightings required
/led street light
/led high bay light
/led canopy light
/floodlight/wallwasher/underground
/underwater/downlight/round-square
/flat led panel luminous lamps
600x600mm(60x60cm/2ft by 2ft)
30x30cm(300x300mm/1ft x1ft)
2ft x 4 ft(60x120cm)
We have 2 kinds of led panel light:THICK AND ULTRA SLIM type one:
| 3 years warranty with samsung G2 5630 LED ,5 years warranty, Hunging kit |
3 ways of installment are available for your choice:
- recessed(embedded)
- surfacemounted(surface mounted)
- suspended(hanging/drop panel):

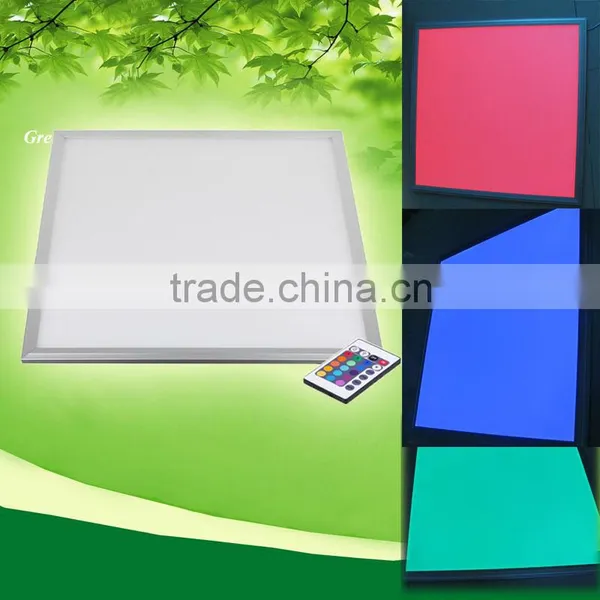

Rgb led panel light(red/green/blue/white/warm white):
Aging test for square led panel light:
600X1200MM LED Panel light
- Ø specification:
Physical parameters | ||||||||
Model |
Power |
Input voltage |
Output voltage |
Size |
LEDs |
|||
PL-P60120S5630-72W |
72W |
AC90-264V |
DC39V |
1196X596X9 mm |
5630 |
|||
Optical parameters | ||||||||
Model |
Lumen output |
Color |
CCT |
Beam angle |
||||
PL-P60120S5630-72W |
5328 lm |
Warm White |
2500~4000k |
120° |
||||
5472 lm |
Cool White |
4000~7000k |
||||||
|
Remark: 1. All are CE, RoHS, FCC approved. 2. working temperature is -20ºC to + 50ºC; the ambient temperature is 30ºC to + 60ºC. 3. LED lifetime is > 50,000 hrs. 4. IP 41
| ||||||||
- Ø Light Distribution Graph:
- Ø Illumination Intensity Chart: (White)
Spacing |
Illumination |
1m |
2200lux |
1.5m |
1160lux |
2m |
714lux |
3m |
359lux |
- Ø Dimension:
Notes:
1, All dimension units are millimeters.
2, All dimension tolerance is ±0.5mm unless otherwise noted.
