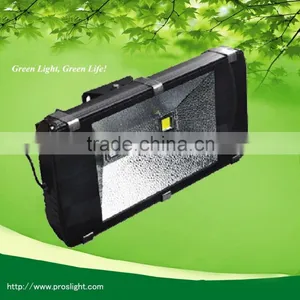

Outdoor new led sport ground flood light
1.Features of Outdoor new led sport ground flood light:
1. Adopting integrated Chip as light source with high lighting efficiency, high CRI(Ra>70),good quality heat dissipation, low light degradation.
2. Aluminium alloy die cast sheel, good strength,high quality heat dissipation.anti corrosion and baking varnish surface,can be for outdoor using.
3. Make a dedicated luminous intensity distribution design via the aluminium reflector,there are two options for lighting distribution,one is for focusing,another is for divergencing.
4. Wide Input Voltage from 85V~265VAC,constant voltage constant current output,can start up at once,no flicker, PFC function available.
2.Geneal Characters of Outdoor new led sport ground flood light:
| Model | PL-TNL160W |
| Dimension | 600*290*110MM |
| Voltage | 85-265V AC 50~60Hz |
| Power | 160W |
| Flux | 14400Lm |
| Led | 2Pcs |
| Color temperature | 2700-3500K(Warm white) |
| 4000-5000k(Natural white) | |
| 6000-7000k(White) | |
| Power Factor | >0.97 |
| Beam angle | 120° |
| IP rating | IP65 |
| Cover | Tempered glass |
| Material | Aluminum |
| Work efficiency | >85% |
| Life span: | 50.000hrs |
3. Outdoor new led sport ground flood light attentions:
1. Only professional electrician can install the lamp, please check the lamp very carefully before installation.
2. Please install the lamp follow up the installation procedure, make sure the screw has been wrested very tightly, the wires have been connected properly, .Please operate according to Product Instructions enclosed.
4. Sloution for Common Fault:
1.If the light can not light on, pls. check whether power on or switch on
2.If the light is on or off continuously, pls. check whether the power supply is loose or not touch well, whether the light's connection is well
Note: if all above points still can not make the light work regularly, pls. contact with professional person.

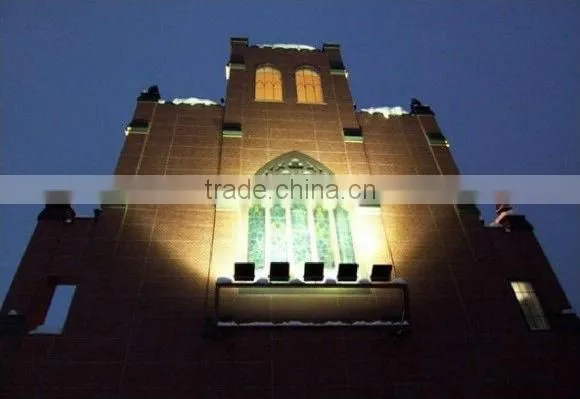

5.Typical Applications of Outdoor new led sport ground flood light:
Buildings, warehouses, street, construction sites, basements, tunnels, stadiums, parking lots, gas stations, billboards, squares, docks, lawn, gardening, design, exhibition hall factory, the factory shops, supermarkets and other light and decorative
lighting situations.
