Specifications
High Quality 180W Led Explosion-proof Lamps1.IP65
2.Color:Warm white,white
3.Black shell
4.CE,Rohs,UL certificated

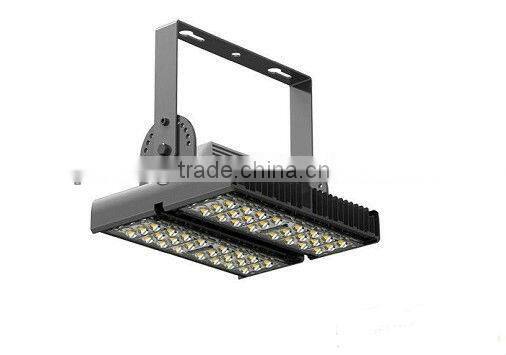

High Quality 180W Led Explosion-proof Lamps
1.Description of 180W Led Explosion-proof Lamps
Adopting 72 PCS of High power LEDs, patent cooling system and high efficiency Waterproof UL approval Meanwell power supply, 120W Outdoor LED Tunnel Lighting is featured with super bright, high efficiency, excellent optic distribution, high optic uniformity, low optic attenuation, excellent appearance and long lifespan. It is widely used in tunnel application.
2.Feature of 180W Led Explosion-proof Lamps
1. High efficiency Waterproof IP65 UL listed Meanwell power supply.
2. High luminous efficiency with 45mil Bridgelux High Power LED Chips
3. Excellent Heat Dissipation Design to slow down the degradation of LED and keep long lifespan.
4. Long lifespan 50,000 hours and extremely low maintenance cost.
5. IP65, suitable for outdoor billboard lighting.
6. Environment-friendly, Lead-free and Mercury-free, CE and RoHS compliant.
7. Working area including workshops, exhibition halls, gymnasiums, gas stations, toll stations, etc.
8. New style, slim and perfect extrinsic feature
3.General Characters of 180W Led Explosion-proof Lamps
| Rated Voltage | AC85-265V |
| Total Harmonic Distortion(THD) | ≤9% |
| PF | >0.9 |
| Power Efficiency | >83% |
| Operation Voltage | DC30-36V |
| Led Chips | Bridgelux 45mil |
| Led quantity | 144Pcs 3W high power Leds |
| Led power | 180W |
| System Power | 200W |
| Led efficiency | 100-110Lm/W |
| Light Efficiency | >80% |
| Uniformity | >0.5 |
| Led Initial Flux | 16000Lm |
| Color Temp. | 2700-7000K |
| CRI | >75 |
| Junction Temp. | <80°C |
| Operation Temp. | -40~+55°C |
| Storage Temp | -25~+65°C |
| Protection Class | IP65 |
| Lamp Shell color | Black |
| Dimension | 596x347x154mm |
| Gross Weight | 8KG |

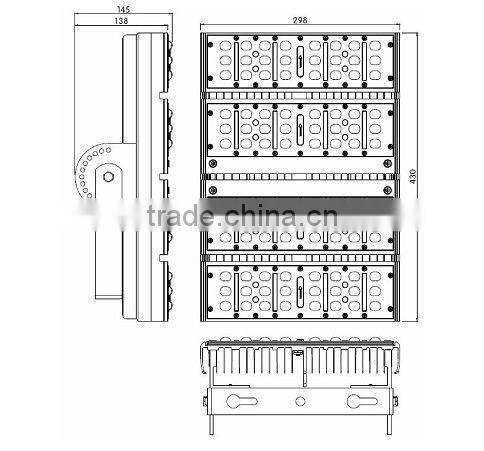

4.Dimension of 180W Led Explosion-proof Lamps
5.Packing of 180W Led Explosion-proof Lamps
1PC per inner carton inner carton size:49x34.5x20cm
2Pcs per carton,carton size:51.5x37x46.5cm

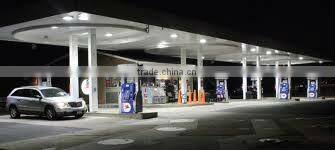

6.Application of 180W Led Explosion-proof Lamps
1. Tunnel
2. Gas Station
3. Factory
4. Warehouse
5. Hall
6. Square
7. Parking Lot
8. Supermarket
9. Sport Stadium
10. Football Field, etc.
7.other model are available
