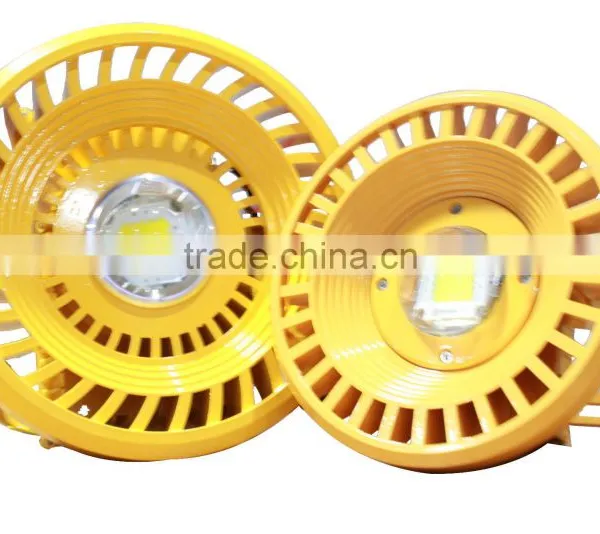

120w Led Canopy Light for Gas Station

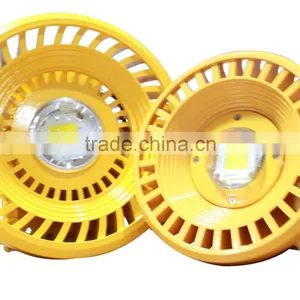

120w Led Canopy Light for Gas Station thumbnail-1
120w Led Canopy Light for Gas Station photo-1
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2011
Factory Size:
1,000-3,000 square meters
Contact Supplier Request Quote Chat Now
Pros Light Co., Ltd. (Shenzhen)
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

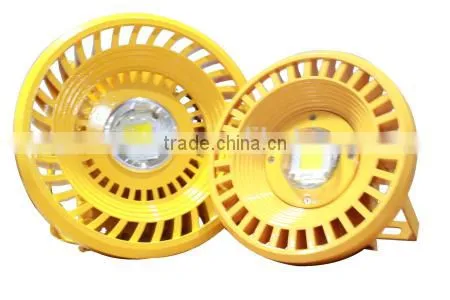

120w led canopy light  for gas station

120w led canopy light for gas station120w led canopy light for gas station

 Main Features

  1. It adopts BridgeLux or Epistar LED as light source, long life span, maintenance free.
  2. The lamp were made of anti corrosion aluminum alloy body for high durability and to efficiently dissipate heat for prolonged LED life up to 50,000 hours and safer operation in hazardous locations.
  3. Anti-static, high explosion-proof degree of flameproof type, dust-proof, waterproof, lens made of bulletproof Acrylic which is thermal resistance, corrosion resistance, and high light transmission.
  4. Low power consumption while high light efficiency, power consumption just 20% as much as high pressure sodium lamp, mercury lamp at the same luminous condition, it saves energy more than 75% than that traditional light.
  5.  Available in several optional mounting configurations including ceiling mounting, pendant mounting, wall mounting etc. Equipped with adjustable gear that enables the operator to position lamp in any directions.
  6. The lamp is tested to Ex d II C T6, IP67. It has two explosion proof chambers which increase the safety than the other lamps.
  7. Advanced quadratic light distribution design result in high uniformity of illumination and good lighting quality, clear lighting effect without a double image.
  8. Maintains consistent color over time with good color rendering.
  9. Meanwell 5year warranty HLG driver is available.

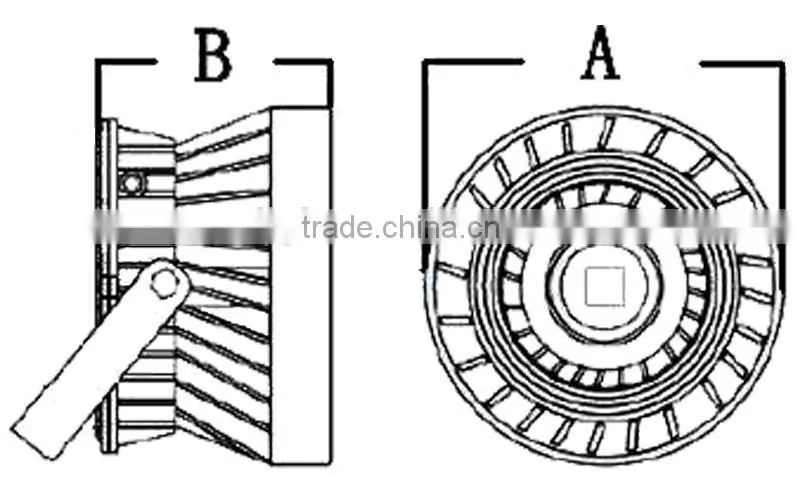

 General Characters& Dimension

120w led canopy light for gas station

Item No.

PL-FB-R50WS

PL-FB-R60WS

PL-FB-R80WS

PL-FB-R100WS

PL-FB-R120WS

Input Voltage

AC90~264V (47~63Hz)

 Power Factor

>0.95

Harmonic Distortion

<3%

Working Voltage

DC 30~36V

LED Power Consumption

50W

60W

80W

100W

120W

LED Luminous Efficiency

≥92Lm/W

Size(A*B)

236*125mm

236*125mm

295*150mm

295*150mm

295*150mm

Lumen

4500lm

5400lm

7200lm

9000lm

10800lm

Effective Illuminated Area

3M height

3.2*3.2m2



6M height

6*6m2



8M height

8.5*8.5m2



10M height

11*11m2

Color

White, warm white

Color Rendering Index

Ra>80

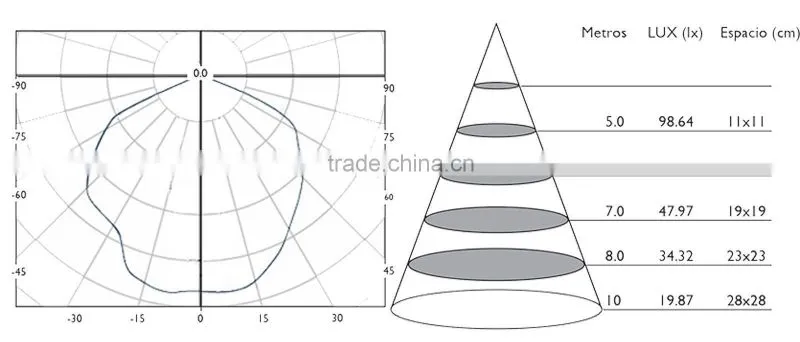

Lux Diagram

120w led canopy light for gas station

Application

Applied to oil fields, oil refineries, offshore oil platform, power plants, gas stations, oil tanks, wharf, tunnel, pumping station, substation, the military base.

120w led canopy light for gas station





 Packing



 120w led canopy light for gas station
