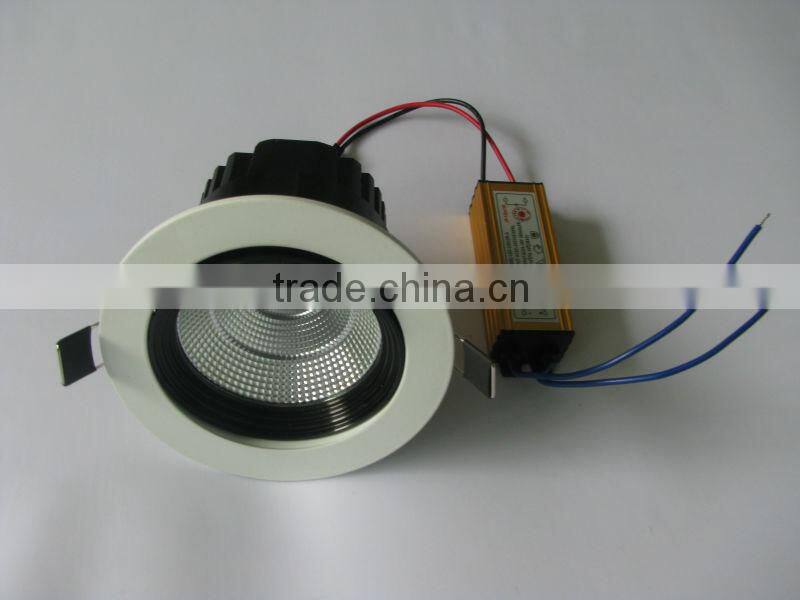

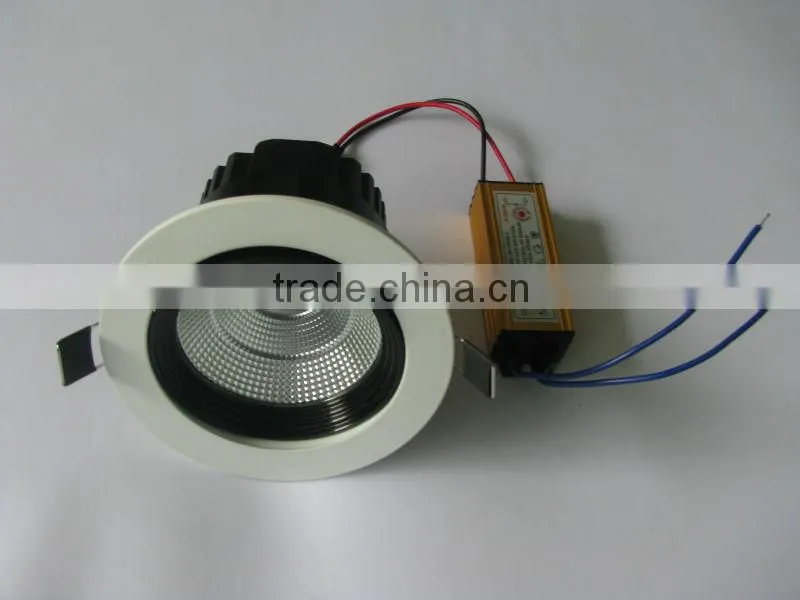

5-15w adjustable ip44 cob downlight led light ,cob led down light,5w cob led ceiling light features:
| Item No. | PL-D-AD15W |
| Material | Aluminum body |
| LED light source | Epistar |
| Power | 15W |
| LED drive mode | Build-out constant current driver |
| CRI | >80 |
| Size | Dia. 110MM |
| Working temperature | -20°C- 45°C |
| Voltage | AC85-265V |
| Cutout size | Dia.95MM |
| Waterpoor Level | IP44 |
| LED Color | White,Warm White ,Cool white |
| Beam angle | 120° |
| Life time | >50000 hours |

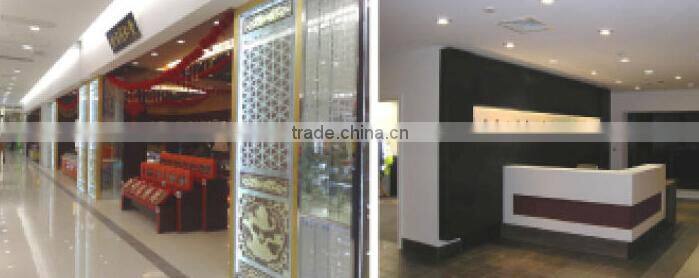

Applications Of 5-15w adjustable ip44 cob downlight led light ,cob led down light,5w cob led ceiling light :
1. Retail lighting
2. Shop window lighting
3. Ceiling lighting
4. Office lighting
5. Commercial lighting used in Bank, restaurant, hotel etc

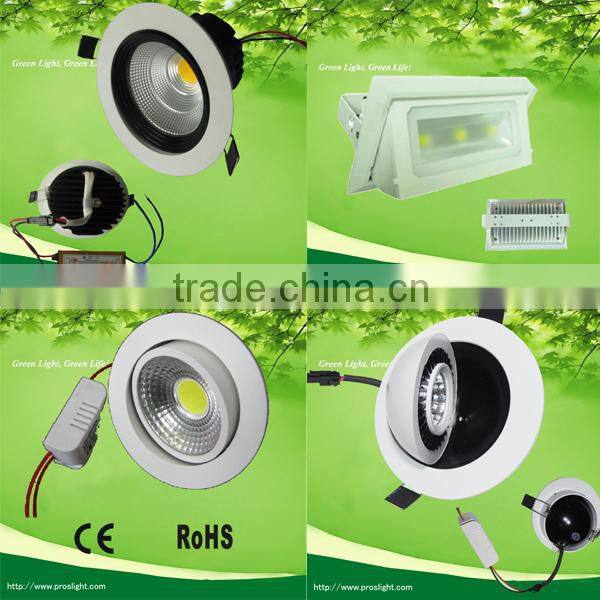

Related Led Downlight for you reference:

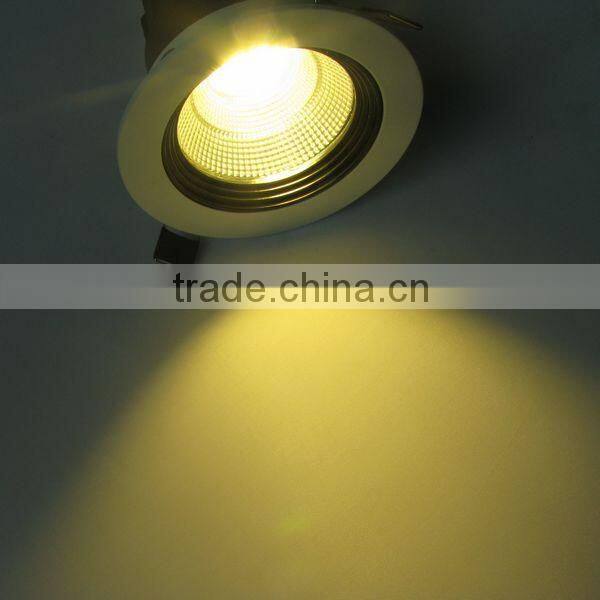

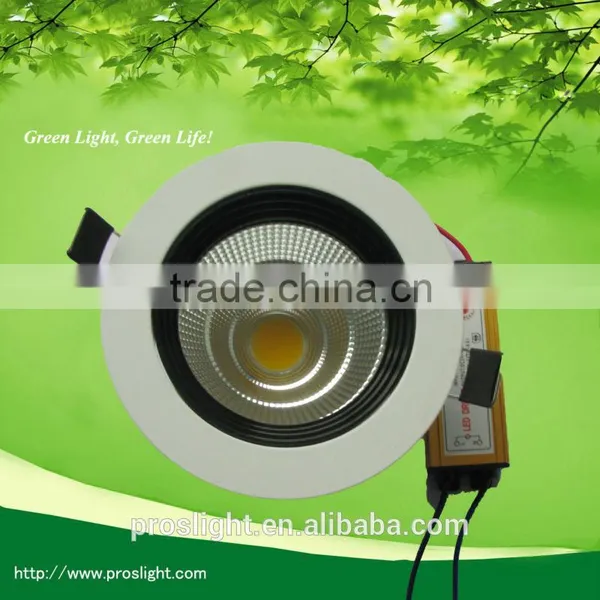

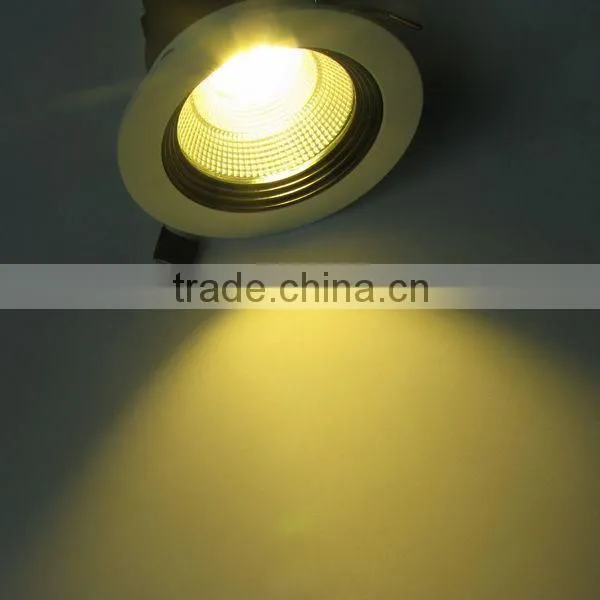

Specific Product Pictures Of Led Downlight:
Company Introduction:
Pros Light, founded in 2008, is an established high-tech factory specialized in the research, development, engineering, and marketing of LED based lighting solutions. Our Mainly products are led downlight, tube, panel light, sportlight and other led lights. For more details of our cob led down light, please feel free to email us
Advantages
Enlarged superficial area ensures the lamps with great heat dissipation, so that there is little light failure .
Clear glass cover
-anti oil and antifog,antidust
-Since LED ceiling lights last 70times longer than incandescent lights, as a result, cost of maintenance and replacement are reduced.
And this also deduct the pollution to our environment.
Certificates
-CE,RoHS, including Europe test standard SAA EN60968 EN61547 EN55015 EN61000, SAA
Instruction for led downlight:
Safety instruction:
1.Ensure the power supply to the fixture is switched off before installing this product.
2.All electrical installation must be carried out by a licensed electrician.
3.This product is NOT suitable for damp or explosive environments.
4.Modification of this product will void any warranty.
Product specification:
IP rating: IP20,indorr use only
Voltage: see details on package
Wattage: see details on package
Ambient temperature: -20 °C to +40 °C
Storage conditions: cool & dry conditions
If dimmable version,it operates from triac dimmer only.

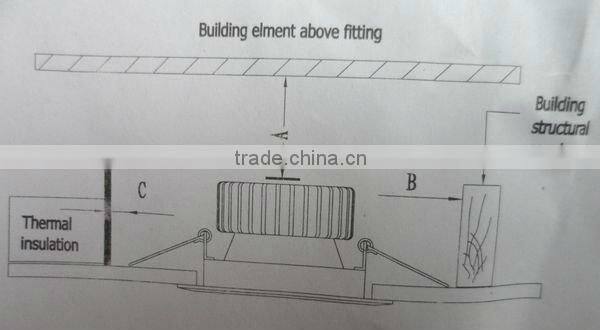

Fig1.
How to install :
1.The downlights shall be installed at locations and in conditions as described in Figure 1 and Tab.2.
2.Switch off the electricity on the circuit which you are working on .
3.Cut out a hole according to downlight's dimension.
See Tab.1.
4.Place fitting into the ceiling.
Tab.1.
| Downlight Dia. (mm) | 90 | 100 | 110 | 143 | 180 | 190 |
| Ceiling cutout. (mm) | 70 | 80 | 90 | 120 | 150 | 160 |
Tab.2.
| A-gap above the top of fitting | 50mm | |
| B-side gap to structural membrane | 30mm | |
| C-the gap to thermal insulation | 30mm | |
Warning:
This product is subject to standard warranty,any modification of this product or improper installation will void the warranty!
Enlarged superficial area ensures the lamps with great heat dissipation, so that there is little light failure .
