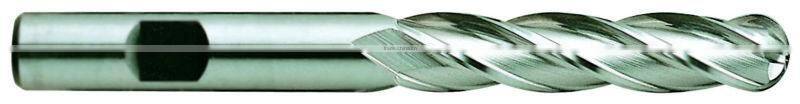

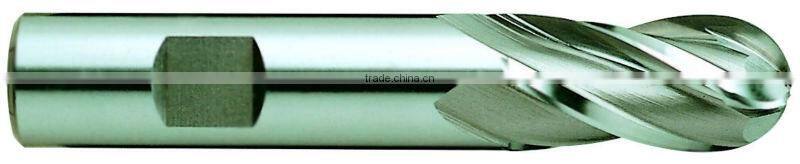

2 Flute Ball Nose End Mill for Wood
- 100000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
- ZY SUPER HARD PCD Polishing Cutter for Acrylic
- Zy Super Hard PCD Straight Bit PCD End Mill Milling Cutter for CNC Router
- ZY Super Hard Polycrystalline Diamond PCD 2-Edge End Mills
- ZY Super Hard PCD Thread Milling Cutter
- ZY SUPER HARD PCD Notching Tools for Roll Machining
- ZY Super Hard PCD 1 and 2 edge End Milling Cutters
Product Details
Place of Origin: | Guangdong, China | Brand Name: | vikda/USG/OEM | Model Number: | E6301 series |
Material: | Other, High Speed Steel, High Speed Steel | Diameter: | R4.0-R25mm | Type: | End Mill |
Coating: | TiCN | Overall Length: | 90-225mm |
Product Description
Specifications
2 Flute Ball Nose End Mill for Wood1.Material:Hss co8
2.Workpiece:HRC35
3.Advantage Inspectiosn equipments
4.Any shank
2 Flute Ball Nose End Mill for Wood
1.materiall:high speed steel
ating: Any coating is awailable
3.Parallel shank /Flat Shank
4.4-6 Flute
5.OEM & ODM are available.

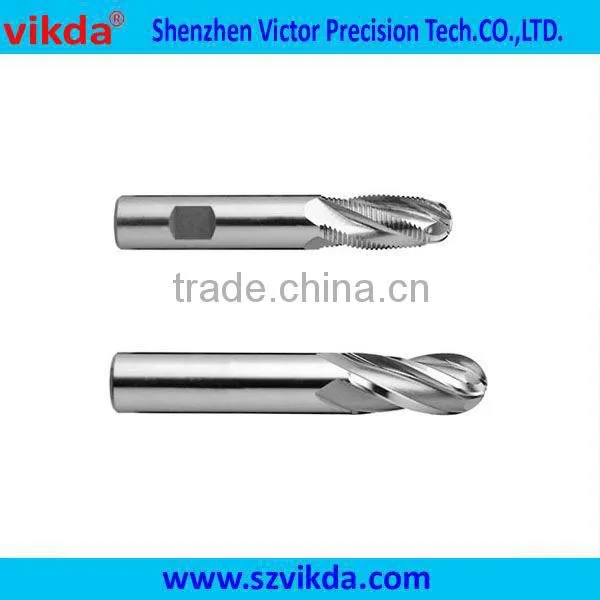

We have square end mill,ball nose end mill and corner radius end mill.Our ball nose end mills have the following advantages:
1) Good Material: <HRC35
2) Size:standard and non-standard.
3) Competitive price and good quality : We promise we only quote a reasonable price, in addition, the quality must make you satisfied.
4) Short Delivery time: we have 20 CNC machines imported from Korea , so we can effect shipment promptly.
5) Cosmetic:TiALN,ALTiN,TiN coating or bright finished.
Type | ball end mill, square end mill, roughing end mill etc. |
sizes | standard and non-standard. |
material | solid carbide,hss-co |
workpiec | wood,plywood,steel,aluminum,plastic,glass,carbon steels etc. |
tool life | Easy and smooth cutting,long lifespan and stable performance. |
customized | Any special specification as customer rquire is available. |
Short length of the flute
ITEM NO. | Radius/mm | Flute Dia./mm | Shank Dia./mm | Flute Length/mm | No. of Flute |
E4301060 | R3.0 | 6 | 6 | 57 | 4 |
E4301061 | R4.0 | 8 | 10 | 69 | 4 |
E4301062 | R5.0 | 10 | 10 | 72 | 4 |
E4301063 | R6.0 | 12 | 12 | 83 | 4 |
E4301064 | R8.0 | 16 | 16 | 92 | 4 |
E4301065 | R10.0 | 20 | 20 | 104 | 4 |
E4301066 | R12.5 | 25 | 25 | 121 | 6 |
Long Length of the flute | |||||
ITEM NO. | Radius/mm | Flute Dia./mm | Shank Dia./mm | Flute Length/mm | No. of Flute |
E4302067 | R5.0 | 10 | 10 | 42 | 4 |
E4302068 | R6.0 | 12 | 12 | 53 | 4 |
E4302069 | R8.0 | 16 | 16 | 63 | 4 |
E4302070 | R10.0 | 20 | 20 | 75 | 4 |
E4302071 | R12.5 | 25 | 25 | 90 | 6 |

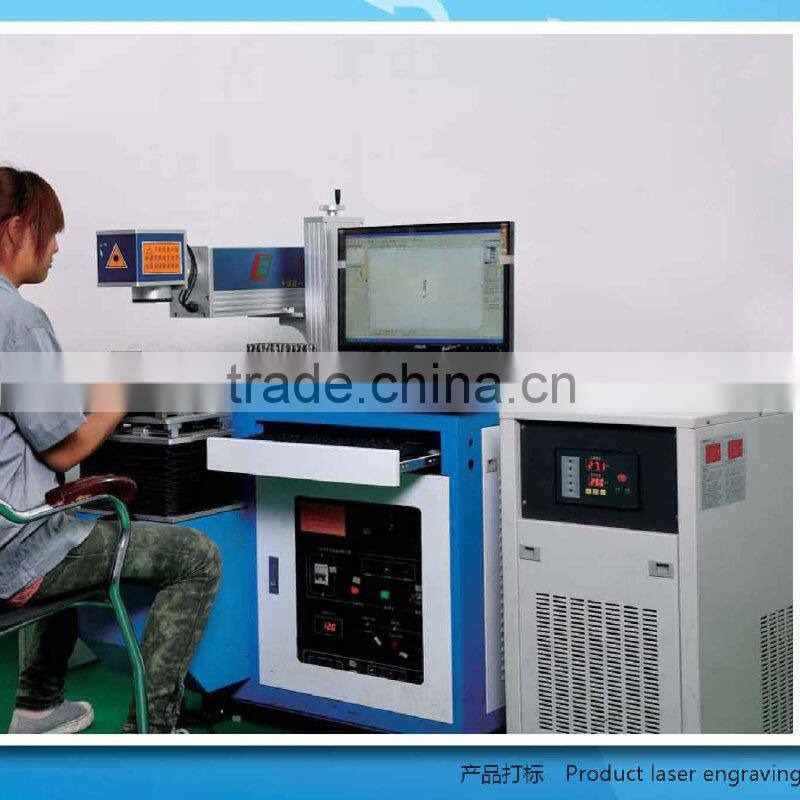

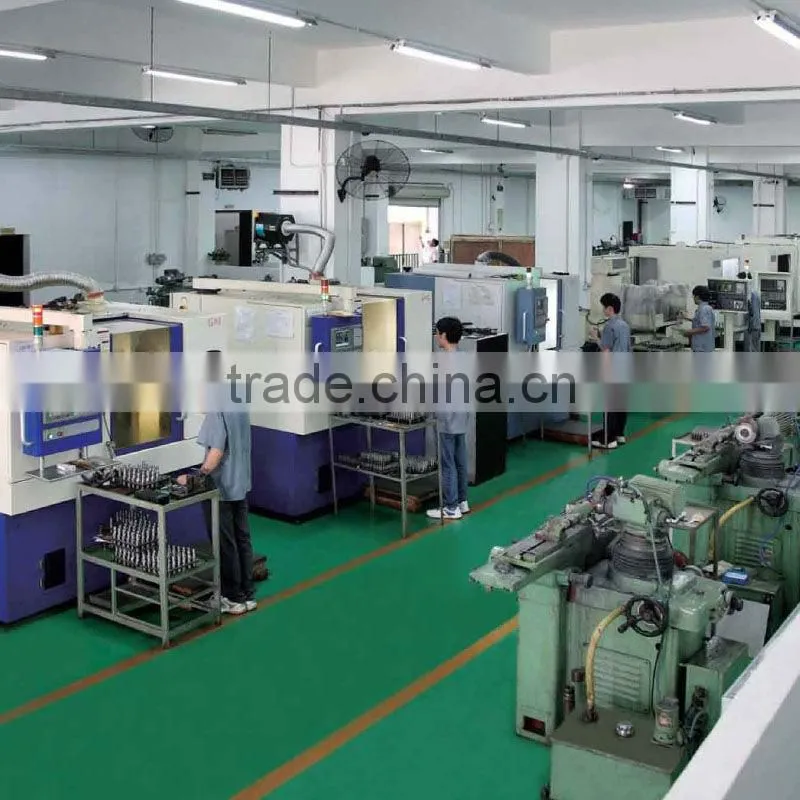

1.Processing Equipments and Testing Equipments
2.ISO9001-2008 Certificate
Contact Us
- Shenzhen Victor Precision Technology Co., Ltd.
- Contact nameThomas Tan
- Phone86-755-33186833
- Address1F, Bldg #1, Bai Men Qian Industrial Park, Busha Road, Buji, Longgang District, Shenzhen,Guangdong
