HSS finishing roughing long length End Mill

Specifications

HSS finishing roughing end mill Co8 long length
1.HSS Co8
2.3~6 flute
piece hardness: HRc20~40
4.flat shank

HSS finishing roughing end mill Co8  long length



Materials: HSS Co8(cobalt 8% HSS)
DIN844
30°helix angle for square end mill
Roughing & finishing –side cutting
3~6 flute
Flat shank(DIN1835B)
TiN-coated and TiCN-coated available



This general purpose rougher is designed for high production metal removal in a wide range of
work piece material. In many instances, surfaces quality are of acceptable quality.
Much longer flute than design allows deeper and wider cutting.



Main details:

ITEM NO.	Flute Dia./mm	Shank Dia./mm	Flute Length/mm	Overall Length	No. of Flute
E6108060	6	6	24	68	3
E6108080	8	10	38	88	4
E6108100	10	10	45	95	4
E6108120	12	12	53	110	4
E6108140	14	12	53	110	4
E6108160	16	16	63	123	4
E6108180	18	16	63	123	4
E6108200	20	20	75	141	4
E6108220	22	20	75	141	5
E6108250	25	25	90	166	5
E6108300	30	25	90	166	5
E6108320	32	32	106	186	5
E6108450	45	40	125	217	6





Our Head Office

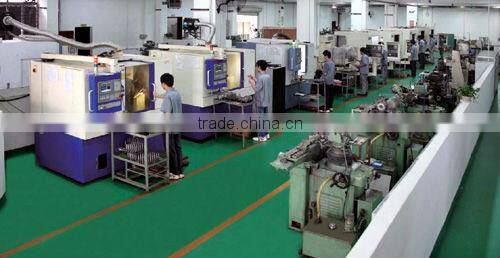

End Mill Workshop

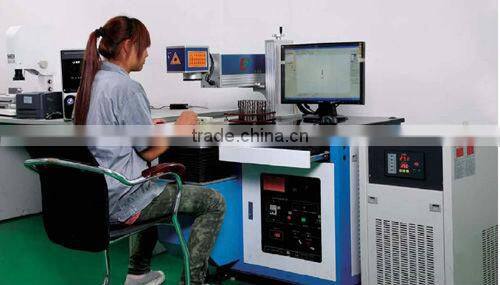

Product Laser Marking

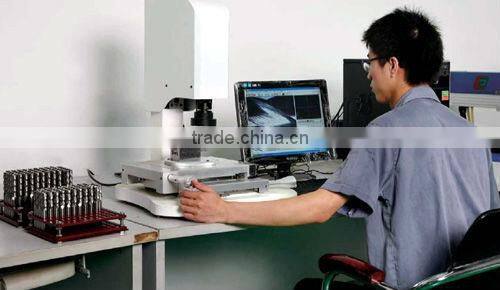

Product Inspection with Univeral Tool Maker's Microscope



Product Inspection with Vision Optical Projector



Packaging









Our competitive technical strength:
1). All the technicians have an academic background of engineering, some people have over 40 years' experience in the industry;
2). Being 7 inventive patent holders in the 5-axis CNC tool grinding machine;




Our competitive advantages on products:



1).Offering a wide range of milling cutters for metal cutting;
2).Using only proven high-quality rods and bars material;
3). Our milling cutter made on high precision CNC machines. Preeminent above most of the others, our superb CNC machines load the workpieces only once and complete all the major processes, so that the product precision and quality consistency is guaranteed;
4). Each cutter is inspected by professional Zeiss  Coordinate measuring machines and computerized roundness measuring instruments, to ensure every single product meet the technical specification.




Our competitive advantages on services:
1).  Short lead-time and fast delivery.  We keep constant stock of popular sizes of rods and bars material, and finished square/ball nose/alumnium end mills, ready to deliver at any time. On the other hand, the scores of CNC machines and experienced operators ensure short lead time, as usual;
2). Supplying non-standard cutting tools, according to customers' specifications.
3). Contract manufacturing OEM service available,  with customers' own brand and labels.
