The foam concrete mixer is designed to mix foam concrte ein domestic and small-size enterprises
Activation of foaming agents in mixer NAVIGATOR 250 takes place due to high rotation speed of activator located in the bottom of mixers tank. This allows not to use foam generator at foam concrete production.
The turbulent method based on creation of high velocity gradient, favours the uniform distribution of agents and impurities (fibre, pigments, plasticizing agents) in preparing mix.
Due to simple design and good operating characteristics the turbulent mixers of series "NAVIGATOR" are widely used by manufacturers of building materials. Some limitations of are more than compensated for by high mixing speed, easiness in maintenance of the plant.
Turbulent mixers of series NAVIGATOR allows to produce qualitative material and receive constant results from batch to batch. The material produced on these mixers, corresponds to GOST 25485-89 and have density from 300 to 1600 kg/m³.
Competitive advantages of the turbulent mixer NAVIGATOR 150:

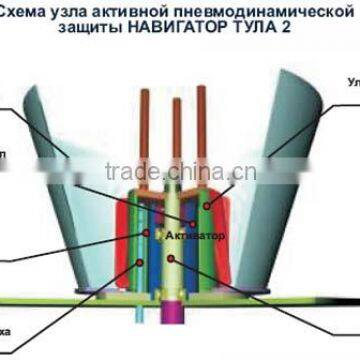

- Unit of active pneumodynamic protection NAVIGATOR TULA 2;
- Compact overall dimensions;
- Quick pay back;
- Easy in maintenance;
Application of qualitative components of well known world manufacturers:
FESTO components for pneumatic system, ERLIN electric components
Technical characteristics of the high speed mixer Navigator - 150
Overall dimensions (LxBxH), mm |
1170×710×1620 |
Weight, kg |
230 |
Power consumption, kW |
4 |
Working air pressure, atm |
0,65 |
Air consumption, l/min |
250 |
Power, V |
380 |
Working tank volume, l |
250 |
|
Capacity at the non-autoclave foam concrete production at the manual loading, m 3/h |
|
Foam concrete production cycle, min |
3~6 |
Distance of the mix supply |
|
The delivery set of turbulent mixer NAVIGATOR 250 includes, operational teaching on the unit, content of mixes, the necessary complementary documentation,
- technology of foam concrete production,
- personnel training,
- mortar compositions
Each customer receive technical consultation as well. Buying a mixer for foam concrete mixing each customer is provided with technological schedule on porous concrete (foam concrete) masses, with practical recommendations based on demands to used components, test methods of received material
