Specifications

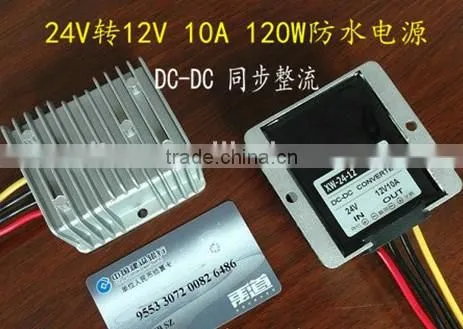

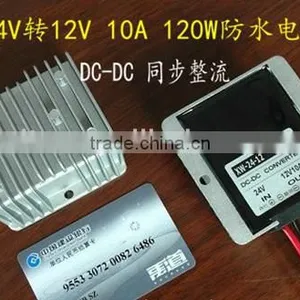

waterproof DC DC buck convertor,DC24V input,DC12V/10A/120W outputSpecification:
waterproof DC DC buck convertor,DC24V input,DC12V/10A/120W output
Info:DC 24V Step-down to DC12V 10A 120W
Size(mm): 74 x 74 x 31
Pitch of holes:65mm
Diameter:6mm
wire length:120mm
weight: 0.3Kg/PCS
epoxy potting, seismic, water, moisture, dust, long term stable and reliable quality.
thin, small size, high efficiency, easy installation.Aluminum alloy Shell waterproof,quality is stable and reliable.
Features and parameter :
1. synchronous rectification, conversion rate is 90% with very low heat.
2. auto protect over voltage, over current, over temperature, short circuit, ,can work in normal condition when restored.
7. working temperature: (-40 °C-80°C) when it is more than 40°C,please make lower power, or enhance heat dissipation
8. full load temperature rise: 50°C
9. Load regulation: ± 1%
10. voltage regulation rate: ± 2%
11. SIZE : 74*74*32MM; Pitch of holes:65mm ;Diameter:6mm; wire length:120
12. minimum pressure: 2V
13. Aluminum Shell
Features:
- Overvoltage protection
- Overcurrent protection
- Overheat protection
- Short-circuit protection
- Input Reverse Polarity Protection: None (Please Series diode at the input port.)
- Waterproof design
- Waterproof full-potting
