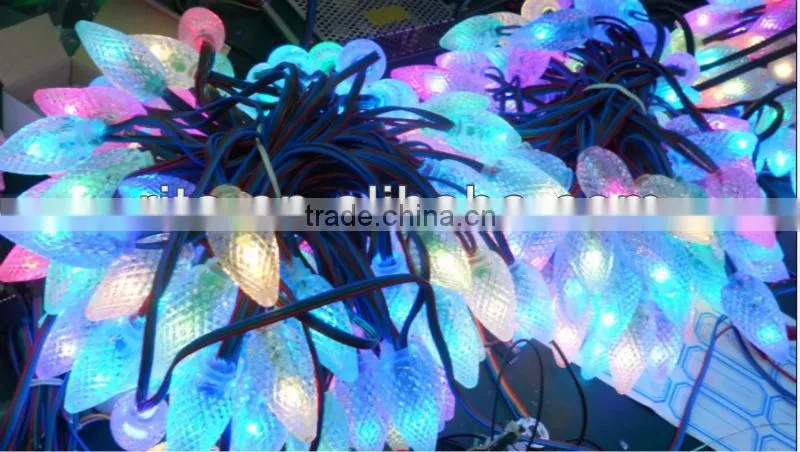

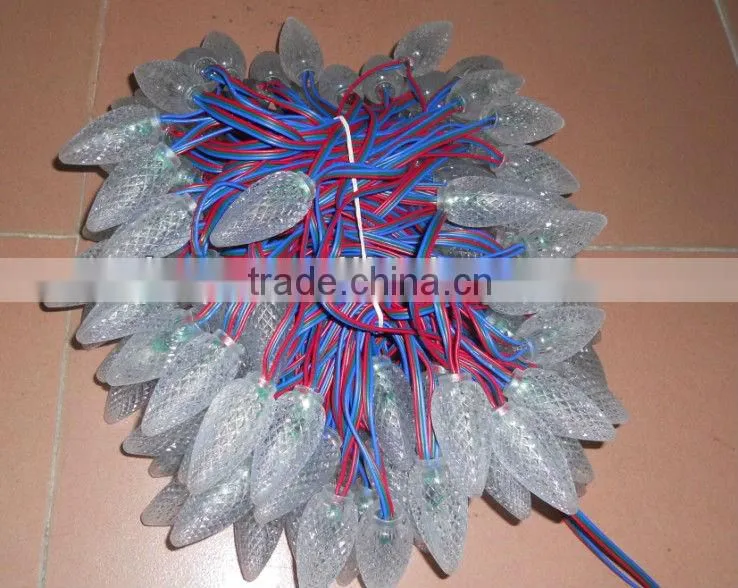

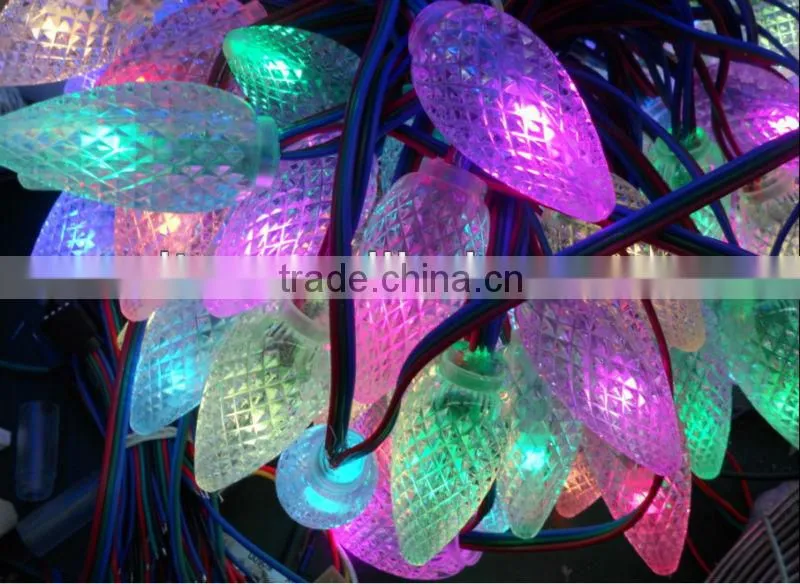

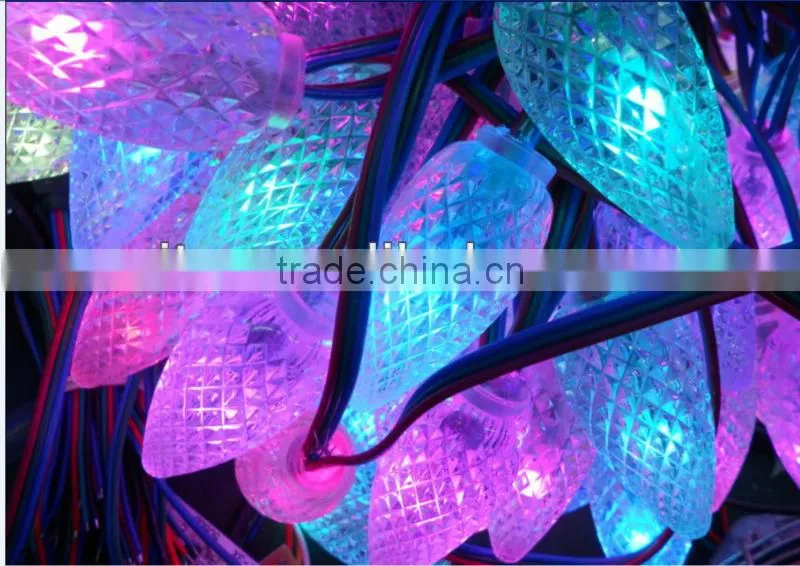

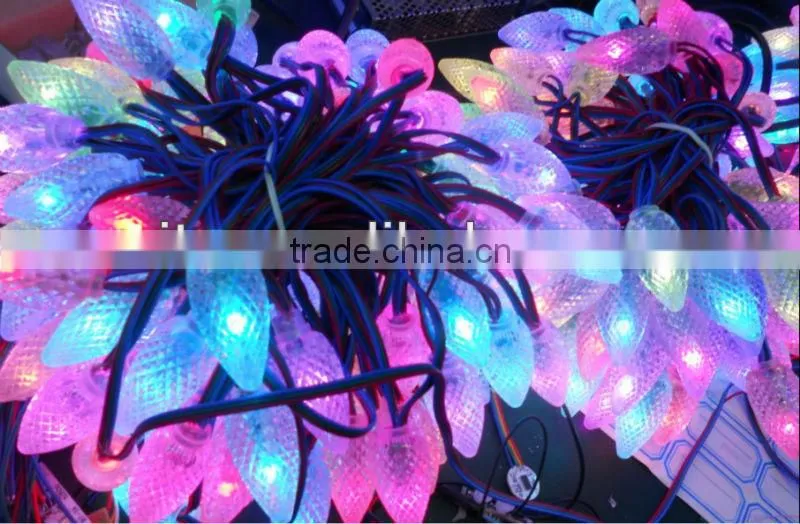

Help Center128 Node LED Pixel String ;DC12V Input,IP68;TM1804IC;with C9 Cover
Related Products
-
DC12V Input 12mm Through-hole LED Channel Letter;00pcs a String;with Green WireUS$ 0.24 - 0.25MOQ: 1 Piece -
DC12V Input RGB 12mm Through-hole LED Node;100pcs a String;in All Black Color WiresUS$ 0.23 - 0.25MOQ: 100 Pieces
-
DC5V Input Square Type12mm Led String Light;RGB Color;50pcs a StringUS$ 0.25 - 0.3MOQ: 1 Piece
-
LED Pixel Module;WS2801 IC;IP68;DC5V;50pcs a String;13mm*13mmUS$ 0.36 - 0.38MOQ: 1 Piece
-
12mm Diffused Digital RGB LED Pixels;black Cable,25pcs a String,DC5V Input;with 4pin JST ConnectorUS$ 0.36 - 0.38MOQ: 1 Piece
Specifications
128 node LED pixel string ;DC12V input,IP68;TM1804IC;with C9 coverParameter |
Specification |
Color |
Full color |
Material |
Straw hat LED |
LED chips quantity |
1pc |
Waterproof |
Yes |
IP |
66 |
Current(MA) |
56-60MA |
Voltage |
|
Power Consumption |
0.3W/pc |
Lumen |
R:3.3,G:10,B:2.7 |
60 cm lead of wire to first node in string on input side 20 AWG wire
red wire is"dc12v +"
RGB Pixels are digitally-controllable lights you can set to any color, or animate. Each RGB LED and controller chip is molded in
RGB Pixels are digitally-controllable lights you can set to any color, or animate. Each RGB LED and controller chip is molded into a 'dot' of silicone. The dots are waterproof and rugged. There are four flanges molded in so that you can 'push' them into a 12mm drill hole in any material up to 1.5mm/0.06" thick. They're typically used to make outdoor signs
Each dot is digitally controlled, with an internal 8-bit PWM LED driver (24-bit color for 16 million different shades). The pixels must be clocked by a microcontroller, we have an example code linked below that works on an Arduino, it should be simple to adapt it to any other microcontroller.
The pixels use 8mm diffused RGB LEDs, with a 120 degree beam width. The total max brightness of all LEDs is about 1600mcd but with the light more evenly distributed & mixed than a clear LED
we can also use the black wire cable if you want.and with a longer wire spacing,and thicker wire,such as 18AWG cable, please contact me if you want to make customized product,thanks.
