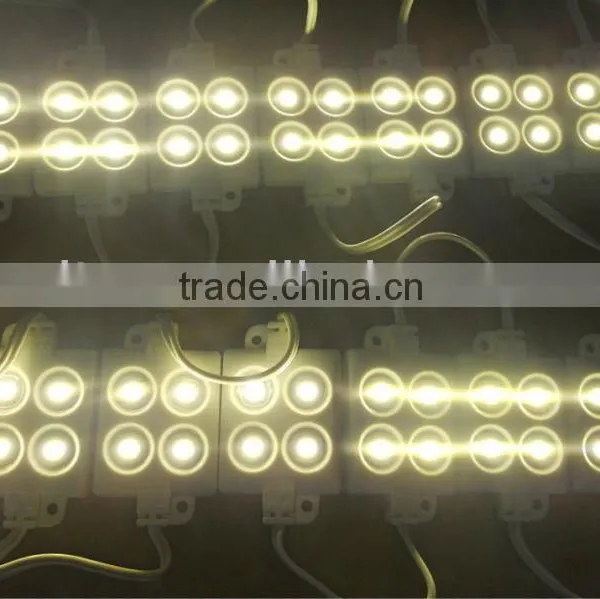

Help Center5050 SMD Injection Type LED Module,4pcs 5050 Led,DC12V Input;WARM WHITE
Related Products
-
COOL WHITE 5050 SMD Injection Type LED Module,4pcs 5050 Led,DC12V InputUS$ 0.5 - 0.56MOQ: 1 Piece -
COOL WHITE 5050 SMD Injection Type LED Module,3pcs 5050 Led,DC12V InputUS$ 0.4 - 0.5MOQ: 1 Piece
-
5050 SMD Injection Type LED Module,3pcs 5050 Led,warm White,DC12V InputUS$ 0.4 - 0.5MOQ: 1 Piece
-
WARM WHITE 5050 SMD LED Module,metal Case;DC12V,20pcs a StringUS$ 0.4 - 0.5MOQ: 1 Piece
-
COOL WHITE 5050 SMD LED Module,metal Case;DC12V,20pcs a StringUS$ 0.4 - 0.5MOQ: 1 Piece
Specifications
5050 SMD injection type LED module,4pcs 5050 led,DC12V input;WARM WHITEInjection Module adopts ABS material as its shell. There is transparent epoxy resin around the lights with good insulativity. Comprehensive performance is good with excellent electrical performance, impact strength and wear resistance, chemical resistance, moisturecontent , shaping and excellent machining technology.
It is completed through injection in one time. It solves the problem that nonuniform sealing, dirty shell and LED stand out of the glue etc.
It is simple artwork with good appearance and short lead time as well.
It has good cold resistant available for -20~40. There are 3M adhesive tape and screws for customers to fix it in easy installation.
It is widely used for emitting letters, advertisement, indoor decoration ,partial lighting, etc
Notice: This figure all the color coordinates value tolerance: ± 0.02
main Features:
model No |
RA-inj3-5050-W |
RA-inj4-5050-W |
RA-inj3-5050-RGB |
LED Quantity |
3 Pcs |
3 Pcs |
4 Pcs |
Input voltage |
DC12V |
DC12V |
DC12V |
Input current |
20ma |
80ma |
80ma |
Input Power |
0.72W |
0.96W |
0.96W |
Power factor |
>0.9 |
>0.9 |
>0.9 |
Power effciency |
>90% |
>90% |
>90% |
Luminous |
20.16 |
42.95 |
53.8 |
Lighting efficiency |
>80% |
||
Color temperature |
Warm white,cool white,RGB |
||
Color index |
Ra>75 |
Ra>75 |
Ra>80 |
Life Span |
>30000Hrs |
||
Material |
ABS & expoxy resin |
||
Dimension |
68.2*19.5*5.7mm |
68.2*19.5*5.7mm |
54.8*33.2*5.9mm |
Net weight |
8g |
8g |
12g |
IP Rank |
IP65 |
IP65 |
IP65 |
Quantity |
20 pcs per chain |
||
