DC12V RGB Dump Node;100pcs a String;injection Type;IP66

DC12V RGB Dump Node;100pcs a String;injection Type;IP66 thumbnail-1
DC12V RGB Dump Node;100pcs a String;injection Type;IP66 photo-1
US$ 20 - 24 MOQ: 1 Strand
Key Specifications
Get Latest Price
Input Voltage(V):
DC12V
Lamp Power:
30
Working Lifetime(Hour):
50000
Contact Supplier Request Quote Chat Now
Shenzhen Rita Lighting Technology Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Input Voltage(V) DC12V
Lamp Power 30
Working Lifetime(Hour) 50000
Certification CE
Emitting Color Changeable
Place of Origin Guangdong, China
Brand Name RITA
Model Number RA-1313-RGB-12V

Specifications

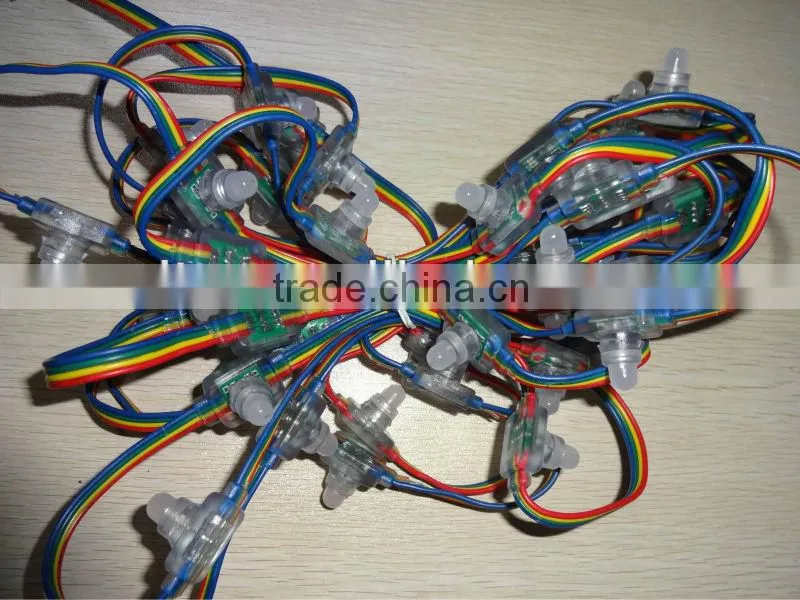

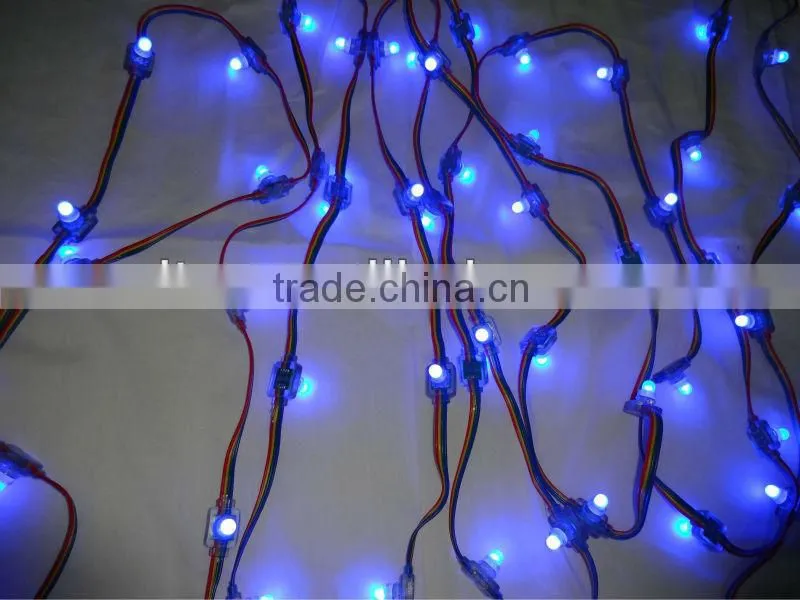

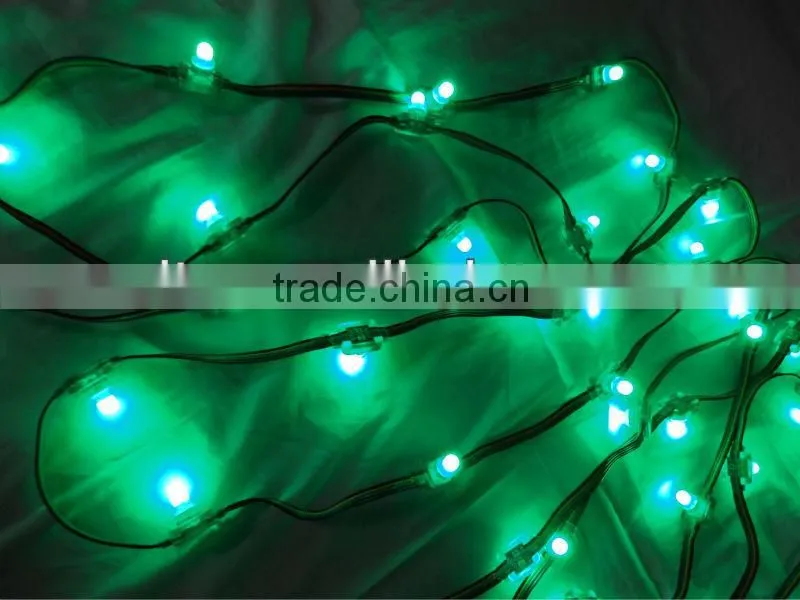

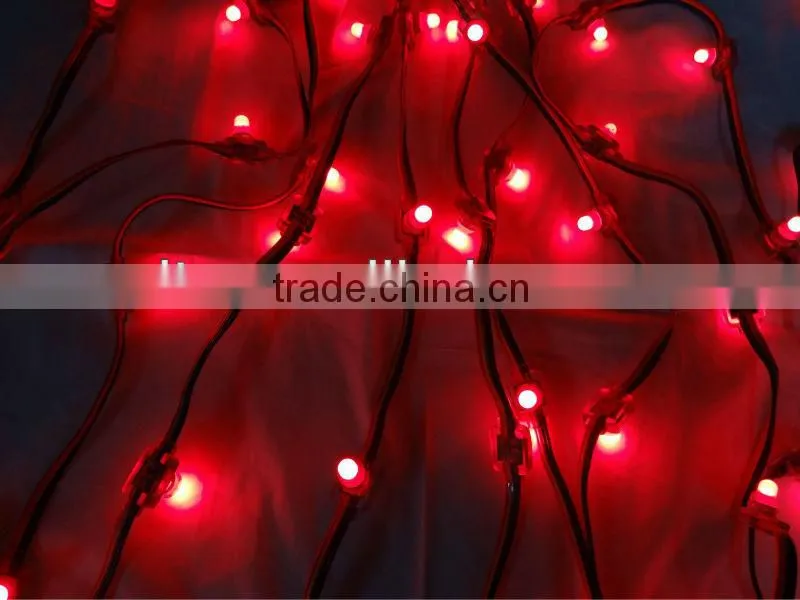

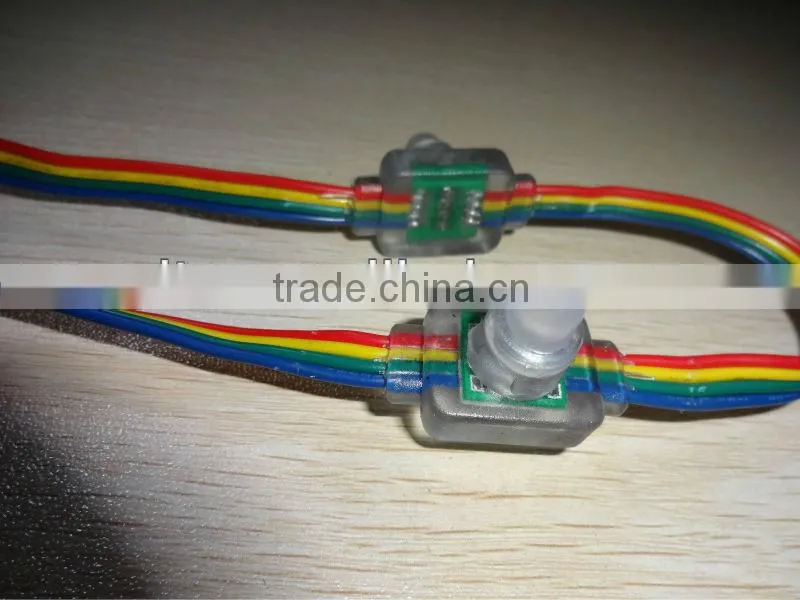

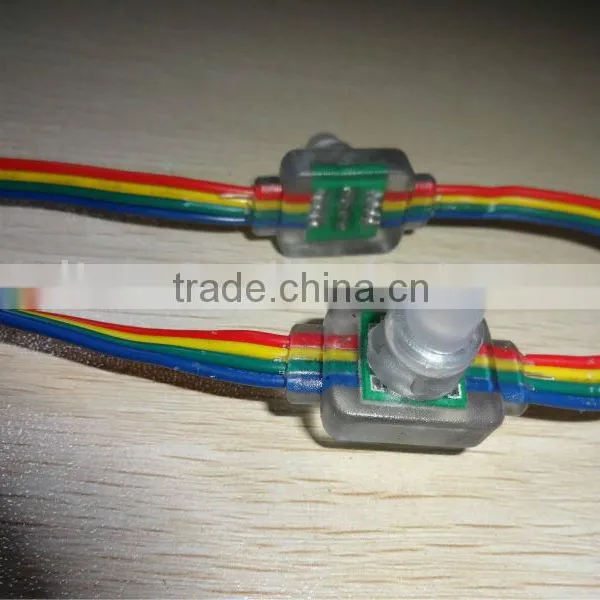

DC12V RGB dump node;100pcs a string;injection type;IP66

Specification:

Part No

RA-1313-RGB-12V

Color

RGB dump color,controlled wholely,not pixel

LED Qty

1pcs 8mm round hat 0.3W RGB LED

Input Volt

DC12V

Max current

30ma

Max Power

0.3W

Driver method

Constant voltage circuit

Dimension

12mm diameter(open hole)

25*18.5*22mm

Viewing angle

100-120degree

Protection Level

IP66

Certification

CE and RoHS

Standard connection

100pcs module per string

Standard wire length

100mm

Housing

transparent PVC

Fixed way

open hole

Lifespan

35000 hours

Warranty



Operation temperature

-40-50

Store temperature

-50-60





RGB dump node;
DMX512 controllable

Working voltage:            DC12V

Working current:             30ma

Working consumption:     0.3W
Working temperature:    40°C- 60

IP grade:                       IP66

Dimension:                    25*18.5*22mm

LED type:                       1pcs  stawhat

 LED qty:                        1pcs
Lifespan:                        MTBF>50000h

Viewing angle:                >90



wiring as below:

red: R-

yellow: DC12V+

Green: G-

Blue: B-

DC12V RGB dump node;100pcs a string;injection type;IP66DC12V RGB dump node;100pcs a string;injection type;IP66DC12V RGB dump node;100pcs a string;injection type;IP66DC12V RGB dump node;100pcs a string;injection type;IP66DC12V RGB dump node;100pcs a string;injection type;IP66
