Racking Systems for Warehouse

Specifications

Racking Systems for Warehouse
beautiful design, fast deliver
easy to assemble and dismantle
ISO and CE certificate

1.  Racking Systems for Warehouse

 1). the range of size

     Height: 1500-10000mm

      Depth: 600-1350mm

      Length: 1500-3500mm



 2). some features

 a. it consists of column, beam, bracing, safety-pin, base,sleeve,screw,nut,setscrew.

 b. rack is completely knockdown format, boltless beam structure.

 c. rack can be easily and quickly assembled.

 d. height between beams can be freely adjusted 75mm.

 e. all racking can be fixed onto the ground by set screw.

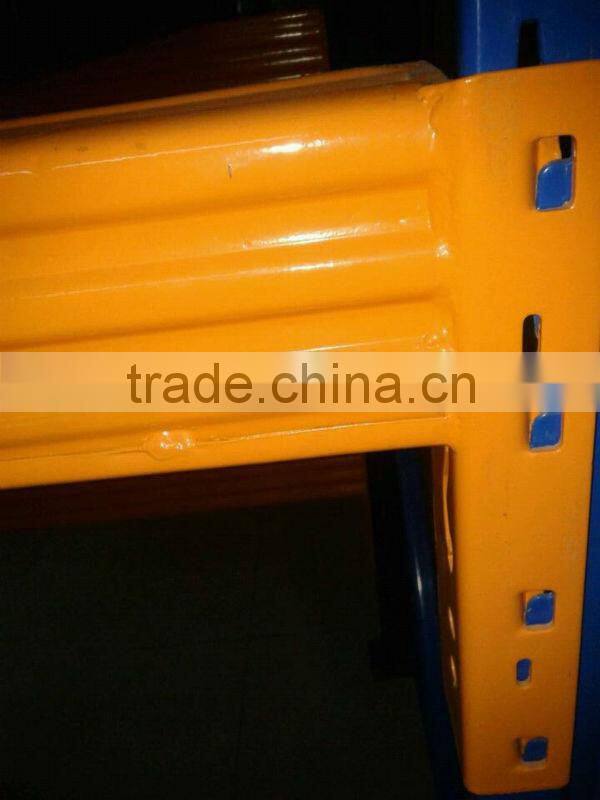

 f. each beam is connected with column by 2 safety pins and hooks

 g. units can be connected to limitless lengths according to site space.

 h. heavy objects can be easily stored,  in good order and saves space.

 i. customize as customer's requirement, the depth and length of rack can be designed   according to the size of your pallet.





3)the profile of column and beam

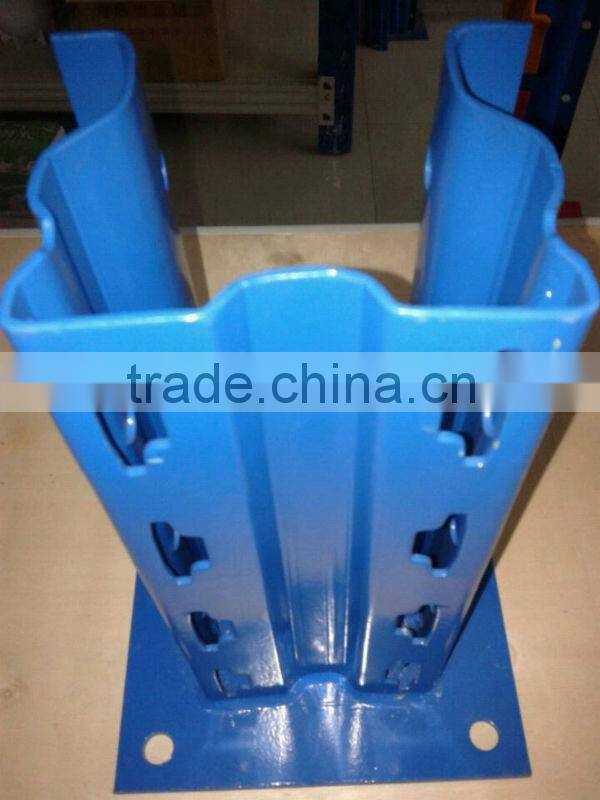

 column profile:

     80*60mm,  90*60mm, 100*67mm,  120*100mm

 beam profile:

      80*40mm,  90*50mm,  100*50mm,  120*50mm ,  140*50mm







, , ,,

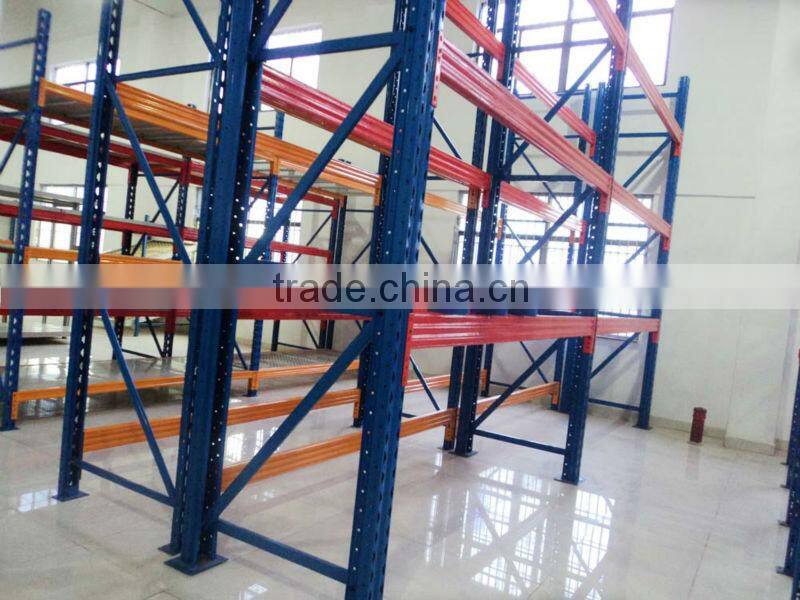

2 .the application for racking systems for warehouse

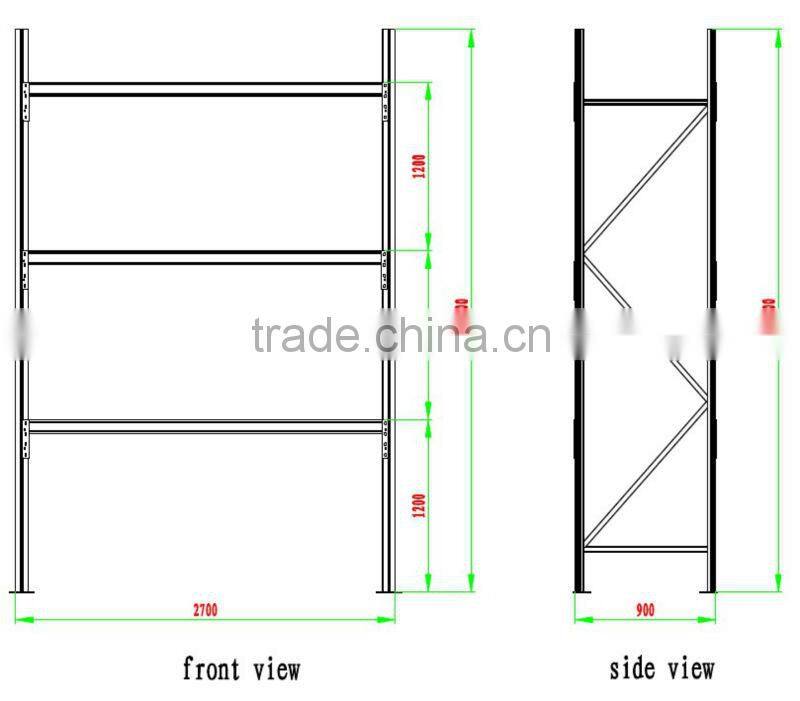

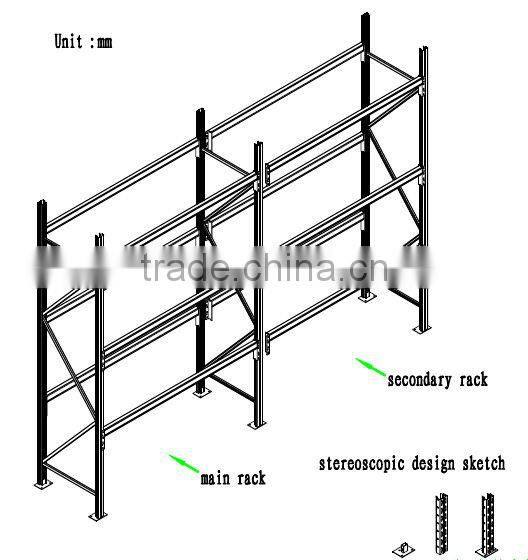

3. refer to a drawing for more details.









4. packing and loading

 the racks are packed as parts, packing material:brown paper and plastic air bubble





Production Catalogue











We are professional in producing and designing various warehouse racks and supermarket shelves.







Warmly welcome to our showroom anytime in Xili town, Shenzhen city, China!





















Package













GZC factory scene

























Certificates













Remarks:

Please send me information below if you are interested in our racks

A) The warehouse outline drawing

B) The size of shelf (length*depth*height), the size of your pallet

C) How many layers you want

D) The loading capacity of each layer

Welcome to send us the size or drawing of your warehouse,we have professioanl designer to design the layout for you.
