Industrial Drive In Rack
- 800 Set / Sets per Month
- Shenzhen
- T/T
Product Details
Place of Origin: | Guangdong, China | Brand Name: | GZC | Model Number: | GZC-001ABD |
Type: | Other, Drive in Rack, Industrial Drive In Rack Systems, Drive-In Rack | Scale: | Heavy Duty | Capacity: | 1000-2000kg/pallet |
Product Description

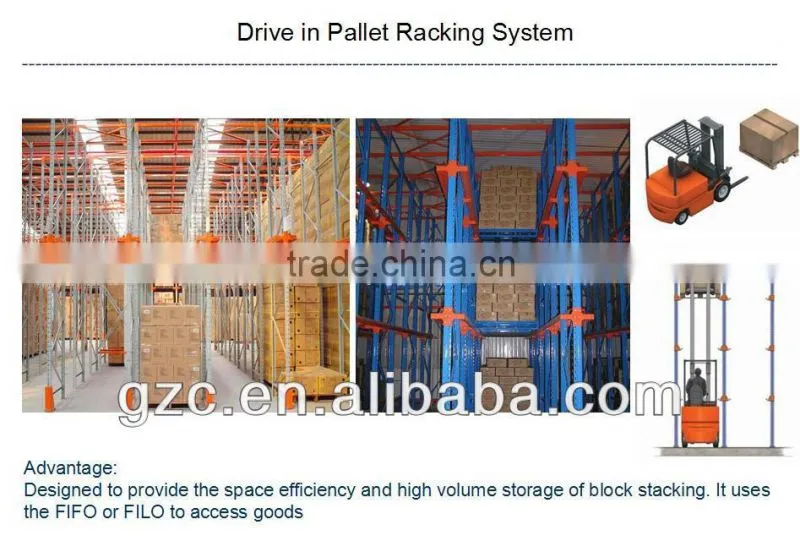

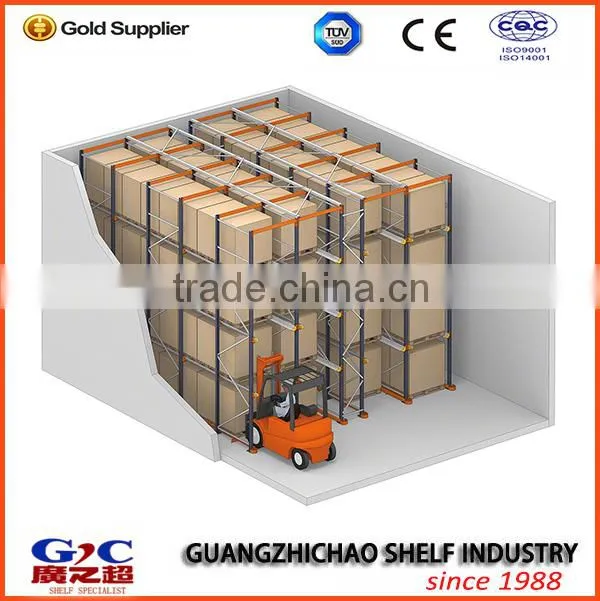

Industrial Drive In Rack
Industrial Drive In Rack, Drive In Rack, Drive In Racking System is the most used type for high density pallet goods storage for warehouse.
Drive in rack is designed for storing a large number of similar goods (pallets), which is most used in cold room for high density food pallet goods storage. Pallets are placed on the supporting rails, which makes possible the high-density storage. The rack system is the most ideal for expensive storage space like cold storage warehouses
The design principle of the drive-in drive-through racking is to joint rows of traditional racks, without special access or aisle. It is allocated by tow rows of racks installed back to back or a single group of racks against the wall, and the forklifts use the same aisle to access. this system racking is stored from inward to outward, and goods to be delivered are withdrawn from outward to inward in sequence. The drive-in rack is suitable for raw materials warehouses or transit warehouses for periodical batch operations and high storage frequency
1) Suitable for small variety but large quantity stored products, especially for standard goods;
2) Very high utility ratio of the warehouse;
3) Each aisle consists of several level of pallet support rail. Pallets are placed on pallet support rail one after another;
4) Forklifts operation alongside the aisle;
5) First-in-last-out access process, one side in/out or two side in/out can be met.
6) Top and back bracing are used to fix the whole racking, making the whole racking stable and safe;
7) first level pallets can be placed on the floor;
8) Surface treatment: powder painting;

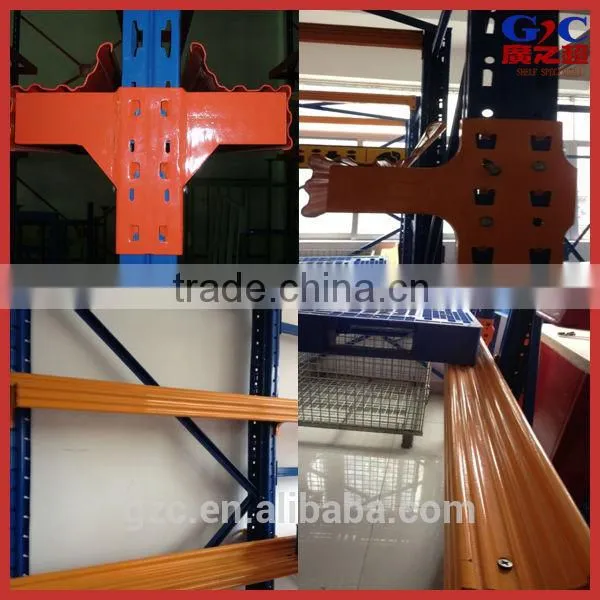

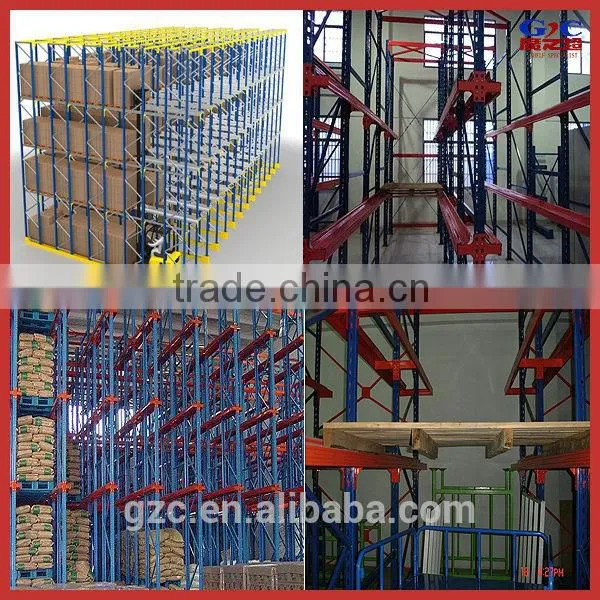

Industrial Drive In Rack , Drive In Rack, Drive In Racking system Parts Joint Detail Photos

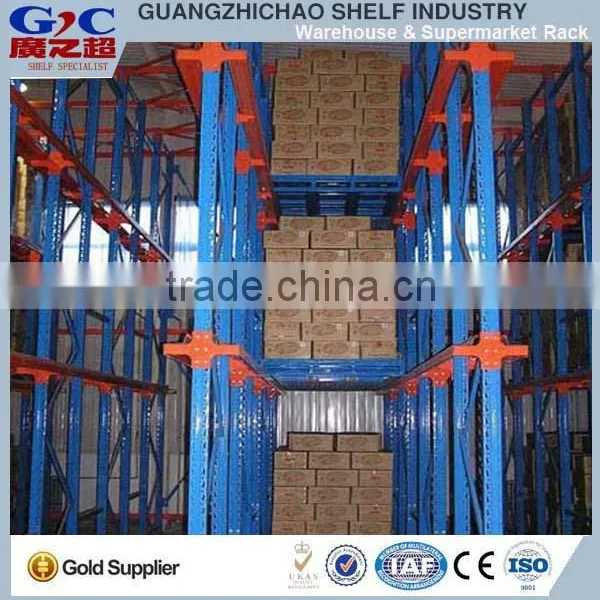

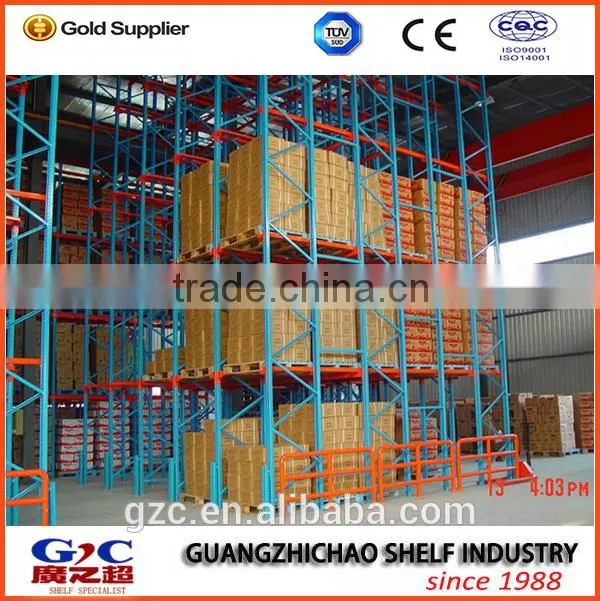

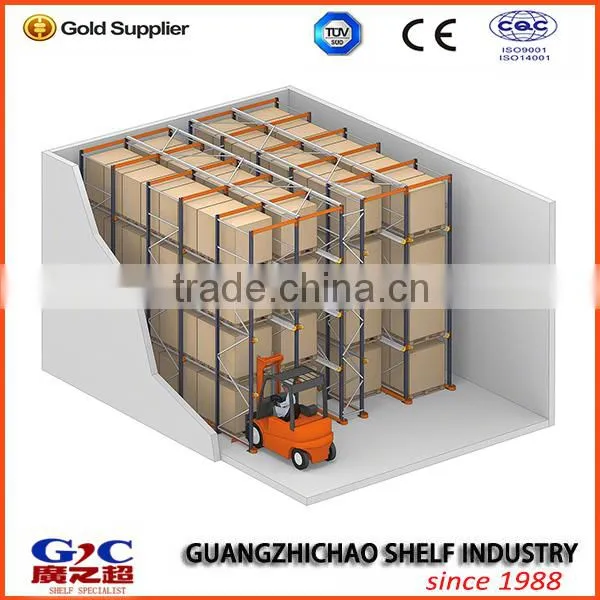

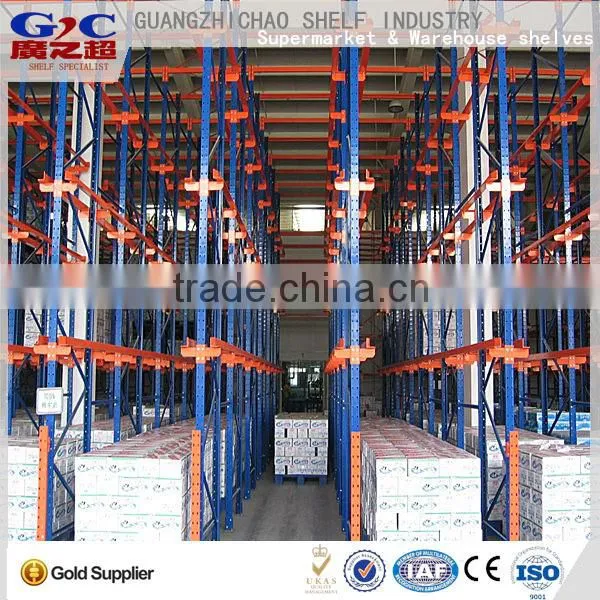

Industrial Drive In Rack Systems, Drive-In Rack, Drive In Racking system
Industrial Drive In Rack Systems, Drive-In Rack, Drive In Racking System Specifications
Rack specification | GZC-001 |
Lengh | 1300-2500mm |
Width: | 850-1500mm |
Height | 2000-10000mm |
Loading capacity | 500-1500kg/pallet |
The No.of tiers | 2-8 |
Surface treatment | powder coating |
Remark | The specific order according to customer need |

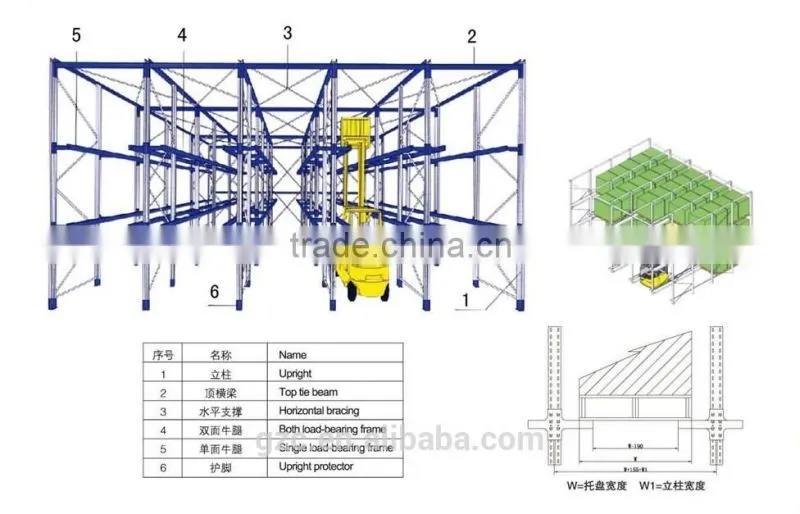

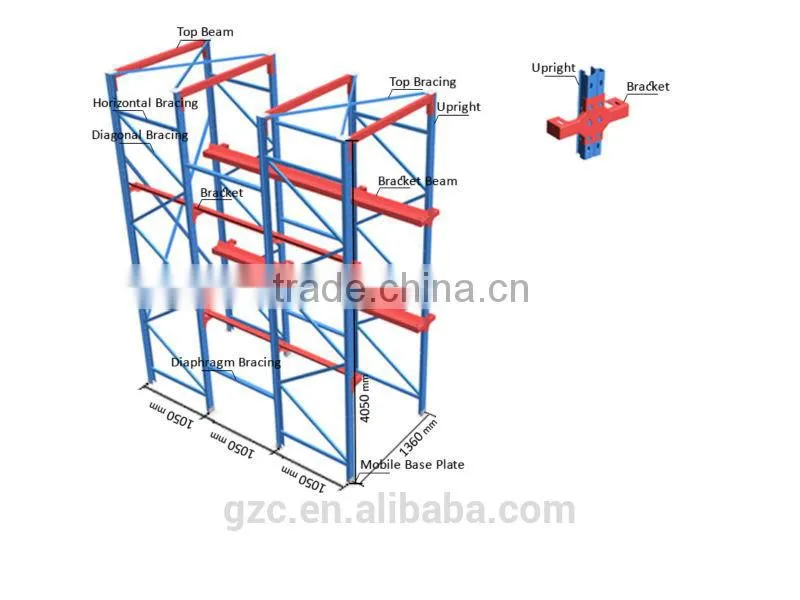

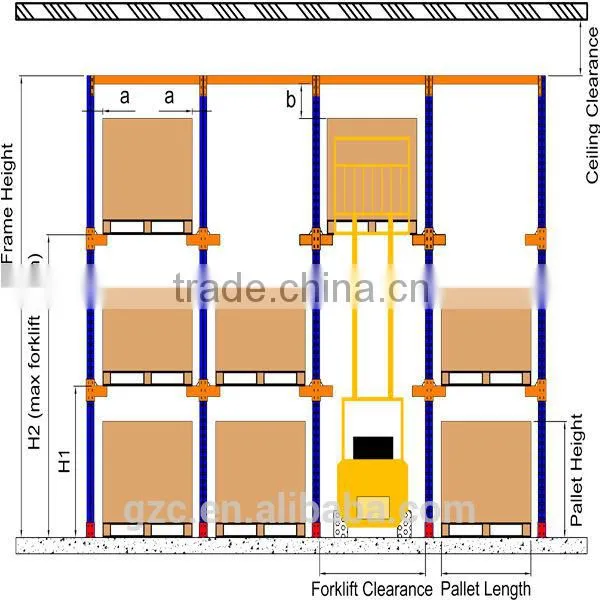

the Sample Drawing for Industrial Drive In Rack , Drive In Rack, Drive In Racking System

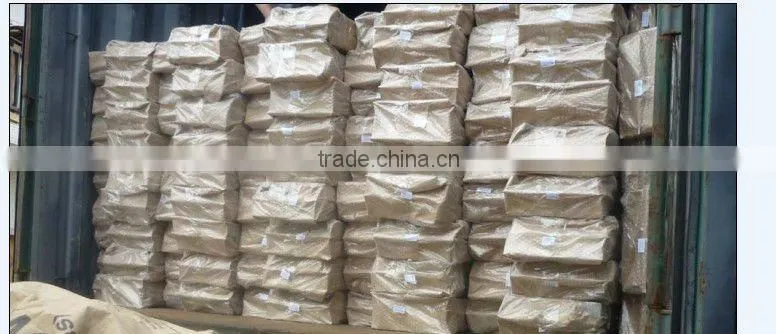

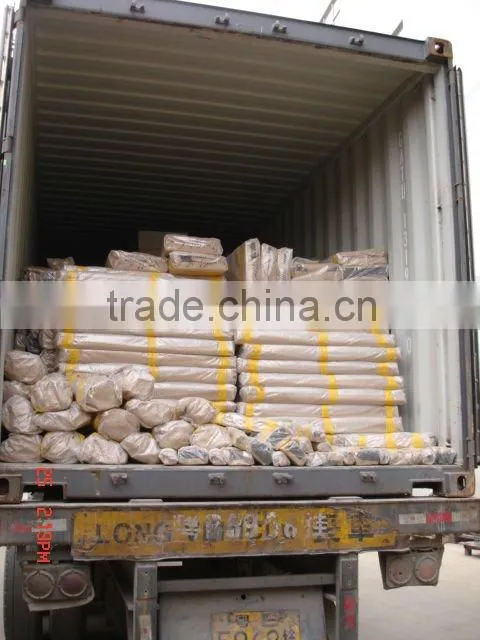

Industrial Drive In Rack, Drive-In Rack, Drive In Racking System Packing and Loading Details
brown paper and plastic air bubble belt
Our Certifications for Industrial Drive In Rack , Drive-In Rack, Drive In Racking System
