Specifications
* 1/3" Sony Color CCD* Up to 65' IR
* Mount: Ceiling or Wall
* One Year Warranty

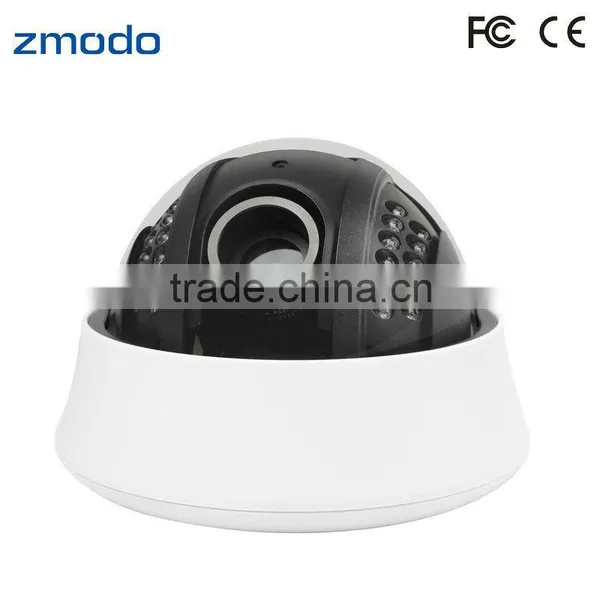

1/3" SONY " Color CCD Sensor 420TVL & 3.6mm Lens & 65ft Night Vision
This indoor camera delivers clear, high-quality video with 420TVL and 1/3" SONY Color CCD. 22 IR LEDs allow for 65ft of automatic night vision. With this high performance camera you can feel secure in knowing you picked a top of the line camera that will never miss a thing when monitoring your property.
420TVL High Resolution, Super Clear & Crisp Image with True Color
The high quality 1/3" Sony CCD image sensor in this camera provides a clear, crisp and consistent picture at 420TV lines of resolution. and it is Sony signal processor which realizes high resolution, high S/N ratio and high color reproduction for security camera.
Up to 65FT Night Vision
22 infrared (IR) LEDs activate automatically in low-light or no-light situations to allow you to see up to 65’ away, and deactivate once lighting conditions are brighter.
See More with Wide Viewing Angle
See more area with the wide 70 degree viewing angle on the 3.6mm lens Cameras. Protect larger areas such as driveways, entrances, warehouses, large retail stores, parking lots, front and backyards.
Ceiling or Wall Mounting
You can mount it at ceiling or on the wall at any positions conspicuous or inconspicuous for the perfect viewing angle, either 360 degree horizontal or 90 degree vertical.
Super Clear Dome Housing
Two layers of protective casing outside the lens optimize the light transmission and fastness of the cover, perfect for indoor monitoring.
Easy OSD Menu Control
The mini controlling joystick is designed on the video power port connection cable. Via it, you can move this joystick up and down, to travel from different functions icons on the menu to control color settings., and press the control button to confirm. It’s so compact and simple
Auto Iris
Auto Iris Lenses have built in motors to control the amount of light that reaches the imaging sensor. Auto Iris lenses are generally used in outdoor applications where lighting levels are not consistent, and or where shutter speed changes are not acceptable. DC Driven lenses are most common in the CCTV industry.
| Model | ZMD-CDR-DIM23NM - Color IR Dome Camera |
| Image Sensor | 1/3" Color CCD |
| TV System | NTSC / PAL |
| Effective Pixels | NTSC: 512 (H) x 492 (V) / PAL: 512 (H) x 582 (V) |
| Focal Lens | 3.6mm |
| Infrared Irradiation Distance | 22 Ultra Strong Infrared LEDs- Visible up to 65 ft (20m) |
| Minimum Illumination | 0 Lux (IR On) |
| Horizontal Resolution | 420 TV-Lines |
| S/N Ratio | > 48dB |
| Operation Temperature | 14°F~122°F / -10°C ~50°C |
| Input Voltage | 12V DC +/- 10% |
| Power Consumption | Max. 4W |
| Back Light Compensation | Off |
| Video Output | 1.0V p-p 75O BNC |

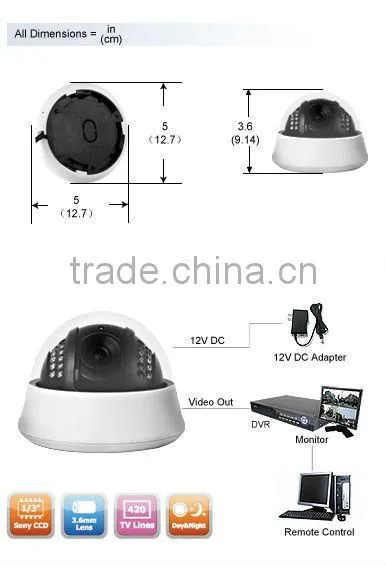

| Dimensions | 5" x 5" x 3.6"(inch) |
| Weight | 0.12lbs |
| Color | Beige |
| Material | Aluminum |
