Specifications
* 4CH Standalone DVR* 906H DVR
* H.264 Compression
* HDMI Interface
* One Year Warranty
The 4 channel 960H Security DVR included in the package ensures high quality live viewing and recording that is a 34% increase over standard D1 resolution and 500% of CIF. Coupled with 700TVL high resolution night vision cameras, this premium system offers a larger, sharper, undistorted image with a truer aspect ratio that enhances surveillance. With this 960H surveillance system, you can monitor high traffic areas with confidence in high resolution, and you will know you’ve picked a top-of-the-line security system at an affordable price.That’s when it time to move up to our premium 960H video surveillance system.
960H is a new standard for security DVRs that provides high resolution images at an image size of 960 pixels horizontal and 480 pixels vertical.The DVR offers 960H (960x480) real-time recording on all 4 channels at 30fps.
-
Higher resolution
960H DVR provides superior images that are 34% larger than D1 and more than 500% larger than CIF.
-
True aspect ratio
960H creates a wide-screen picture that does not need to be stretched to fit wide-screen TV's and monitors.
-
Sharper picture
Recording larger images provides a greater amount of image detail. Images are sharper and shows more detail in objects and colors.
Remote Monitoring from Anywhere, Anytime
Keep watch over the things that matter to you most from anywhere at any time, offering you peace of mind at the tip of your fingers.
- Both PC & Mac compatible.
- Compatible Devices: iPhone, iPad, Android, Symbian, Windows Mobile and Blackberry.
- Compatible Internet Browsers: Firefox, Chrome, Safari and Internet Explorer.
HDMI Port for High Resolution Viewing
- With the HDMI® port, easily display video on any 19” or larger TV or monitor to take full advantage of the security system's clarity. Easily focus on the details. (HDMI Cable Not Included).
- For added convenience, the DVR also comes with VGA and BNC connections for standard resolution viewing options.
Multiple Recording Modes
Continuous recording, time scheduled recording, motion detected recording and alarm triggered recording are available for your choice. Also protect your privacy using the “Mask” feature. Your privacy is just as important as your security.
Multiple Viewing Options
View all cameras at once on a split-screen, or view 1 camera at a time on full screen with the option to cycle through each of the cameras at a customizable speed.
Easy Search Options
In order to easily pinpoint an event, this DVR allows you to search recorded video by time, motion detection event or alarm triggered event.
Playback Modes
Supports normal playback, fast forward playback, rewind playback, manual single-frame playback, you can also simply drag the playback progress bar to quickly locate the playback time. It also supports multi-channel playback simultaneously, and each channel can be enlarged into full screen.
Multi-Level, Multi-User Management
Admin user takes the highest authority and controls every function. You can share the video to your friends or family but still no need to worry about the safety of the data.
Instant Email Notification
Receive instant email alerts when motion is detected, alarm is triggered, video loss occurs, etc.
ZMD-DT-SCN4 | |
|---|---|
| SYSTEM | |
| Operating System | Linux(embedded) |
| Pentaplex | Simultaneous View, Record, Playback, Backup & Remote Monitoring |

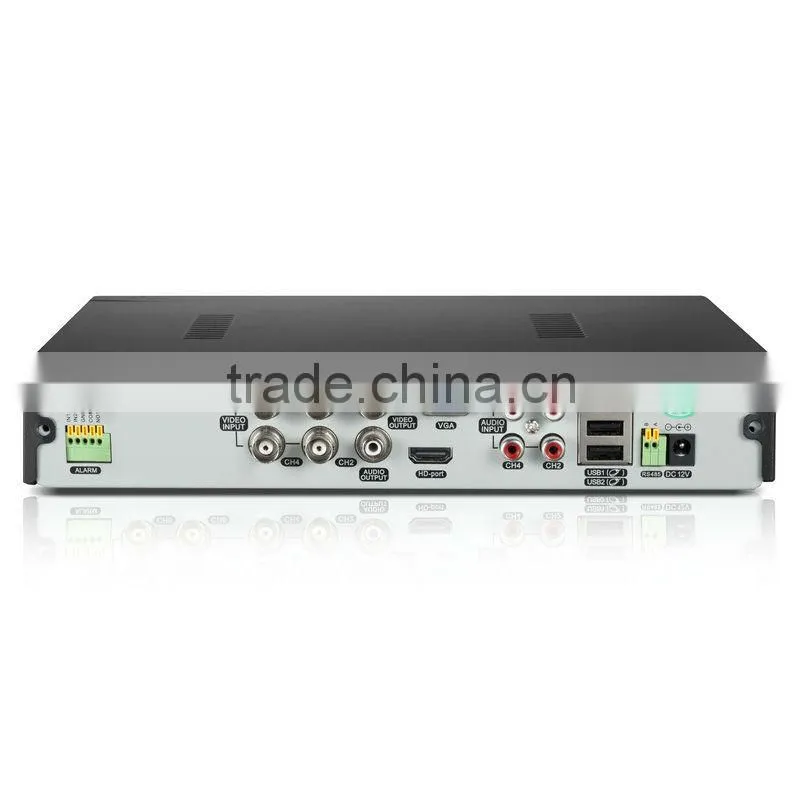

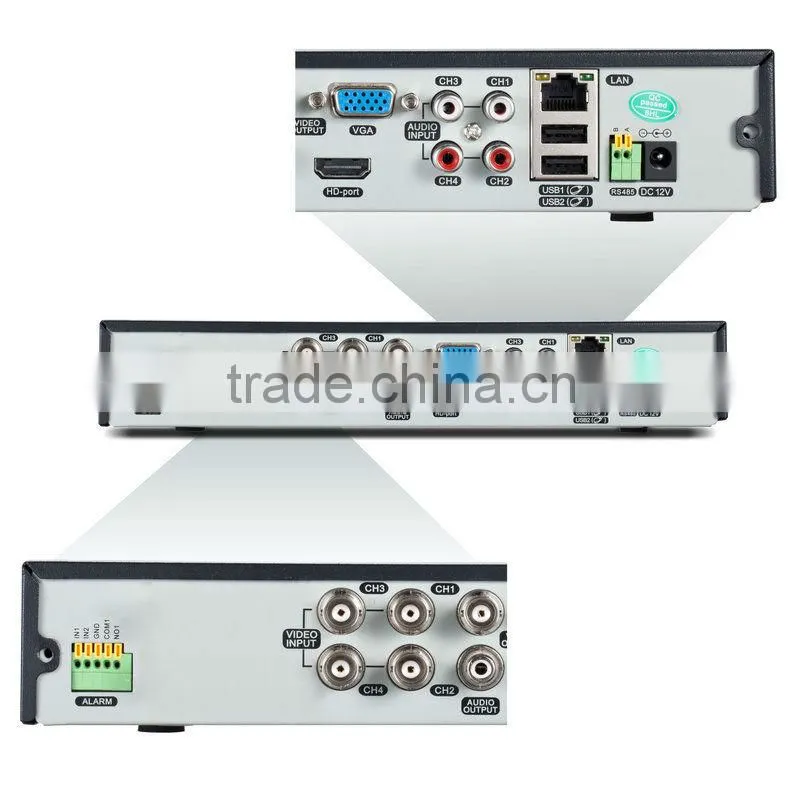

| Inputs/Outputs | |
|---|---|
| Video IN | 4 x 1Vp-p, CVBS, 75ohms, BNC |
| Video OUT | 1 x BNC |
| VGA OUT | Yes |
| HDMI | Yes. Video and Audio |
| Audio IN | 4 line in(RCA), G.711 |
| Audio OUT | 1 line OUT (RCA), G.711 |
| USB Port | 2 at the back |
| Alarm IN | 2ch IN |
| Alarm OUT | 1 ch OUT |
| PTZ control | RS-485 |
| Display | |
|---|---|
| Live Display | 1, 4 |
| Live Display Speed | 120 NTSC / 100 PAL |
| GUI OSD | Yes |
| System Navigation | USB Mouse, IR Remote Controller, Front Panel |
| RECORDiNG | |
|---|---|
| Video Compression | H.264 |
| Audio Compression | G.711 |
| Recording Resolution | 960H:960×480 pixels with 30 FPS /960×576 pixels with 25 FPS D1:704×480 pixels with 30 FPS /704×576 pixels with 25 FPS HD1:704×240 pixels with 30 FPS /704×288 pixels with 25 FPS CIF:352×240 pixels with 30 FPS /352×288 pixels with 25 FPS |
| Record mode | Manual / Time Scheduled / Alarm Triggered / Motion Detect |
| Recording Resolution Setting | Per camera for different resolutions |
| Recording Quality Control | 6 levels, Supper Best,Well,Good,Medium,Normal and Bad |
| Pre Recording | Max. 10 Secs |
| Reliability | Auto-recovery after power failure |
| PLAYBACK | |
|---|---|
| Sync Playback | 4-CH |
| Playback Function | Normal play/Speed play/Fast back play/ Manual single-frame slow play/Digital Zoom |
| STORAGE & ARCHIVE | |
|---|---|
| Storage | 1 SATA HDD (3.5") |
| Maxinum Capacity | up to 1x 2TB |
| Backup Media | USB flash drive, USB hard disk and network backup |
| Backup File Format | H.264 file (AVI generator included) |
| CONNECTIVITY | |
|---|---|
| Supported Operating Systems | Windows™ XP, Vista, 7 , 8 , Mac OSX Snow Leopard 10.6 or above, not support visit DVR with CMS software in Mac |
| Browsers | Firefox, Chrome, Internet Explorer or Safari |
| Email Notification | Text with Snapshot |
| Instant Smart Phone Compatibility | Smart Phone & Tablet Compatibility: iPad , iPhone, Android, Windows Mobile, Symbian or Blackberry |
| Network Protocol | TCP/IP/ PPPoE/DDNS/FTP/ NTP /UPNP |
| Network interface | 1 RJ45 10/100M |
| GENERAL | |
|---|---|
| Supply Voltage | DC 12V 2A |
| Unit Dimensions | 10.19in (W) x 8.7in (D) x 1.7in (H) / 259mm (W) x 221mm (D) x 44mm (H) |
| Unit Weight | 2.12lbs |
