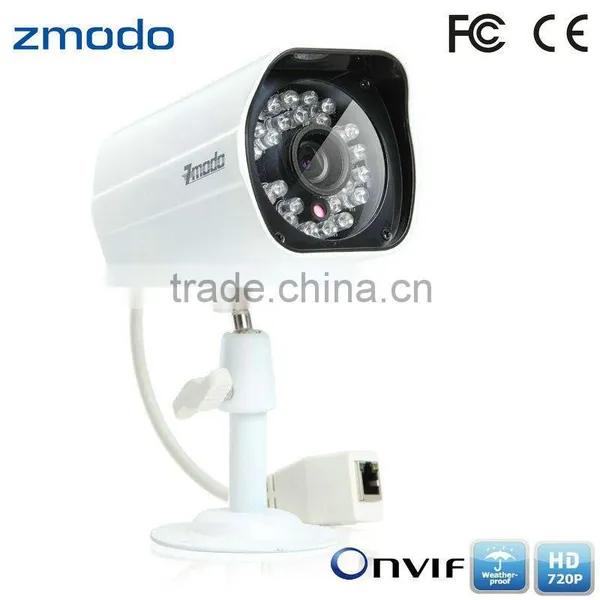

Zmodo Onvif Outdoor 720P POE Small IP Camera

Specifications

* 720P HD
* 25m ir night vision
* H.264
* IP 65
* One Year Warranty

Windows CMS Software - View Camera Footage from Anywhere, Anytime

PC-Zviewer is a Camera Management System software designed specifically for Zmodo network video monitoring. Easy to install and use, it will help users reailze the full potential of this system.



No Matter Indoor or Outdoor, No Matter Day or Night

View at Night up to 65'
24 infrared (IR) LEDs activate automatically in low-light or no-light situations to allow you to see up to 65' away, and deactivate once lighting conditions improve.

The IR-cut filter in this camera gives superb images in daylight, and excellent IR images at night



Weatherproof Housing Cameras
The cameras can withstand extreme wind, dust, and rain. These cameras are suitable for outdoor use, even in rugged climates.

Multiple mounting options





ZP-IBH13-P
Camera
Image sensor	1/3" color CMOS sensor
Min. illumination	0.1Lux(IR LED On) / F 1.2
Shutter speed	Auto
Lens	3.6mm
Angle of view	77 degree
Day & night	Electronic(IR-CUT filter with auto switch)

Compression Standard
Video compression	H.264
Bit rate	16Kbps~2Mbps
Dual stream	Yes

Image resolution	720P(1280*720),VGA(640*480),QVGA(320*240)
Frame rate	30fps
White balance	Auto
Backlight balance	Auto
Image setting	Brightness, contrast, chroma, saturation

Network
Alarm trigger	Intelligent motion detection
Alarm action	E-mail notification,video record,snapshot,upload to NVR
Network protocols	TCP/IP, UDP, DNS/DDNS, SMTP, UPNP,DHCP, HTTP, FTP, etc.
ONVIF	ONVIF Ver.2.0
Wireless	Nonsupport
Supported OS	Microsoft Win98 SE/ME/2000/XP/Vista/win7,Internet Explorer 6.0/7.0/8.0/9.0
Supported mobile phone OS	Android 2.2 up, iOS 4.3 up
Security	User authentication, software encryption

Interface
Communication interface	RJ45 10/100M self-adaptive
On-board storage	Built-in TF slot,up to 64GB

General
User management	Multi-lever user management,support up to 16 users
Weather proof	IP65
WDR	Nonsupport
Operating temperature	−10 °C to 50 °C
Color / Material	White / Aluminum
Power supply	PoE
Power consumption	3W~5W
IR distance	Night visibility up to 25m
Dimensions	66 × 60 × 99mm (2.6" × 2.4" × 3.9")
Weight	1.14lbs
