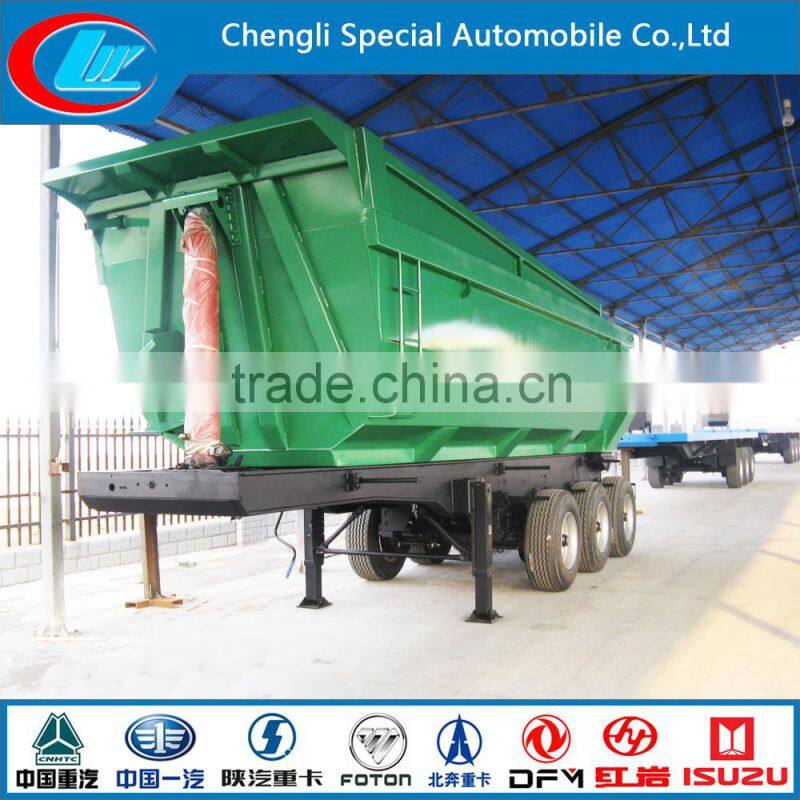

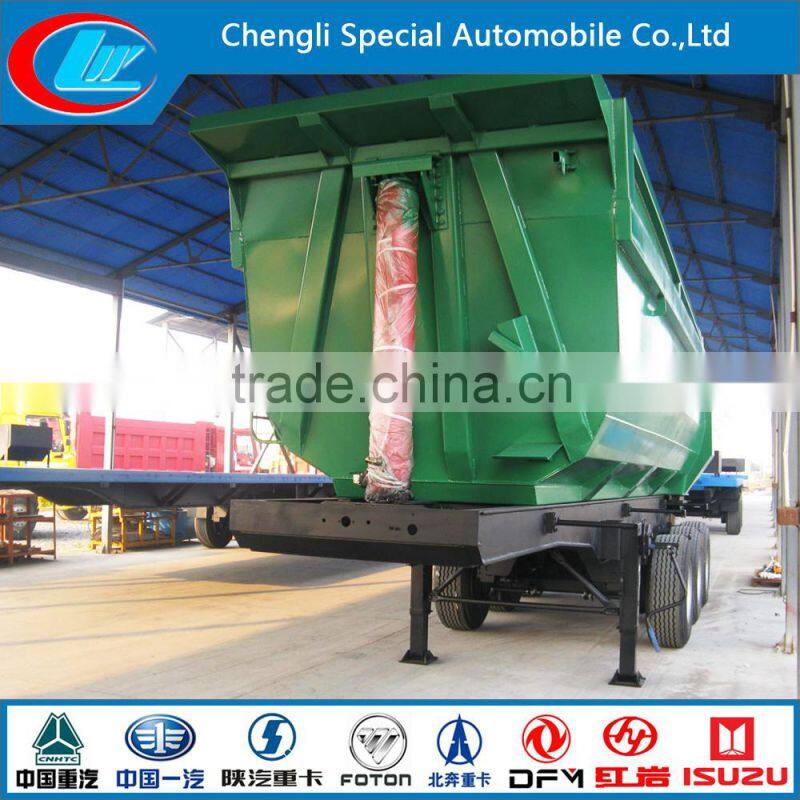

African Use 3 axle dumper trailer front lifting hydraulic dumper trailer 45cbm used truck trailer for sale
Technique Parameters
DIMENSIONS | ||
Tare Weight |
8500kg |
|
Overall Length |
11700mm |
|
Overall Width |
2480mm |
|
Payload |
35000kg |
|
Work deck length: |
4000mm |
|
Work deck Height: |
900mm |
|
SPECIFICATIONS | ||
I Beam& Chassis |
Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 18 mm, width 140mm; Middle Flange 8mm,Height 500mm, Bottom Flange 20mm,width 140mm. |
|
Axle |
3 axles |
|
Fuwa 13 ton | ||
Suspension |
Heavy duty mechanical suspension |
|
Floor |
3mm checker plate |
|
Leaf Spring |
8 piece Leaf spring |
|
King Pin |
2” Bolt-in King Pin |
|
Landing Gear |
Two-speed, manual operating, heavy duty landing gear |
|
Wheel Rim |
8.25-22.5 wheel rim |
|
Tire |
11R22.5 tire with one spare tire |
|
Ramp |
Mechanical ramp with spring |
|
Spare Tire |
One set of spare tire including a carrier |
|
Braking System |
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks |
|
Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
|
Accessories |
One standard tool box |
|
Company Information
- Hubei Chengli Special Automobile Co, ltd which is appointed by Ministry of Industry and Information Technology of China, is a big manufactureeer producing all kinds of special trucks and semi-trailer.
- Our company cooperates with famous chassis manufactureer, such as DONGFENG, FAW,SINOTRUK, JAC, SHACMAN, FOTON,CMAC,GENLION,DAYUN and etc. We can produce more than 300 kinds of special trucks and semi-trailer.
- Chengli take customer's satisfaction as the top requirement. All of the trucks and semi-trailer sell to Africa, South-east Aisa, Australia, Middle-east and other place.
- We serve the best service for each client.
Factory Scene
Worshop Scene
Other Semi-Trailer Products Series
1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck,sealed garbage truc
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck 1
5. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
Package Show
Certification
After-sale Service
- 12months for 3 key parts (engine, transmission, axle).
- Tracking service time: lifelong.
- Third-party service for overseas client.
Customers
Contact Information
Name Caroline GAO
Skype caroline.gao1990
Cel. 0086-2783796298
Mobile 0086-13872281763
Wechat 15117073372
African Use 3 axle dumper trailer front lifting hydraulic dumper trailer 45cbm used truck trailer for sale
Welcome to visit our factory!!!
