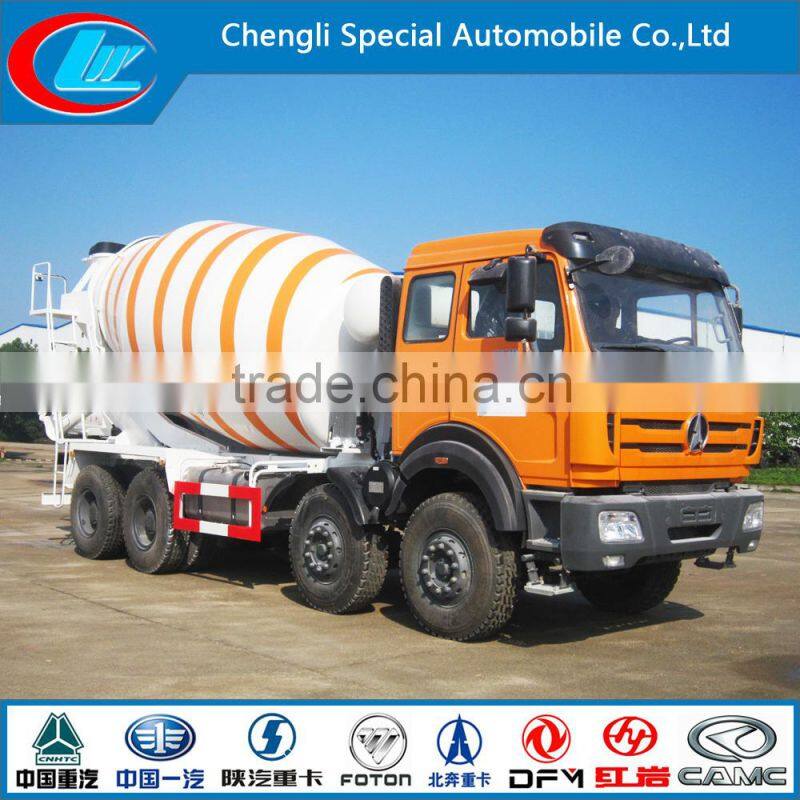

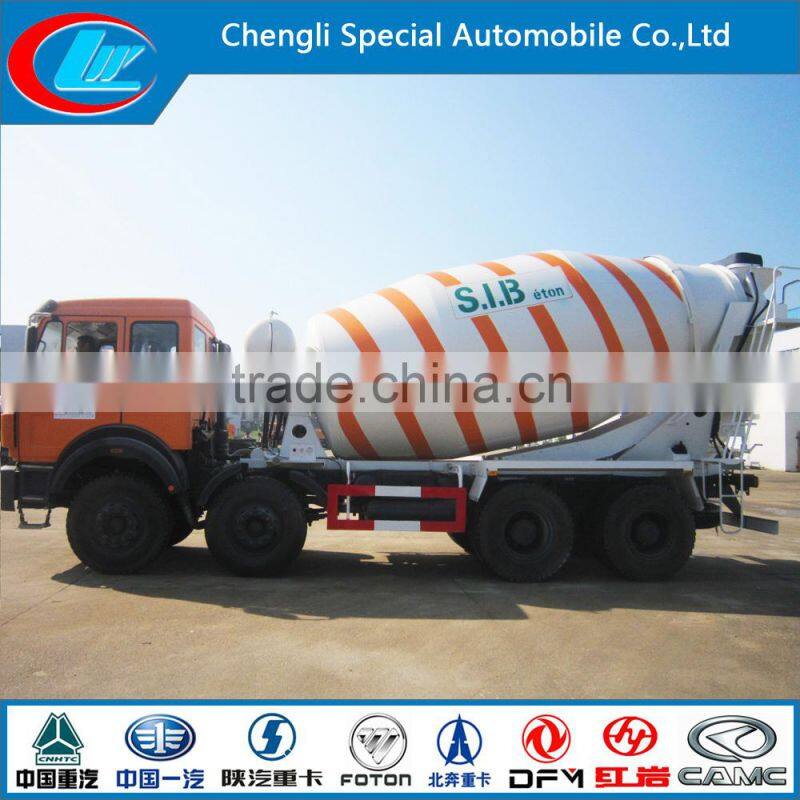

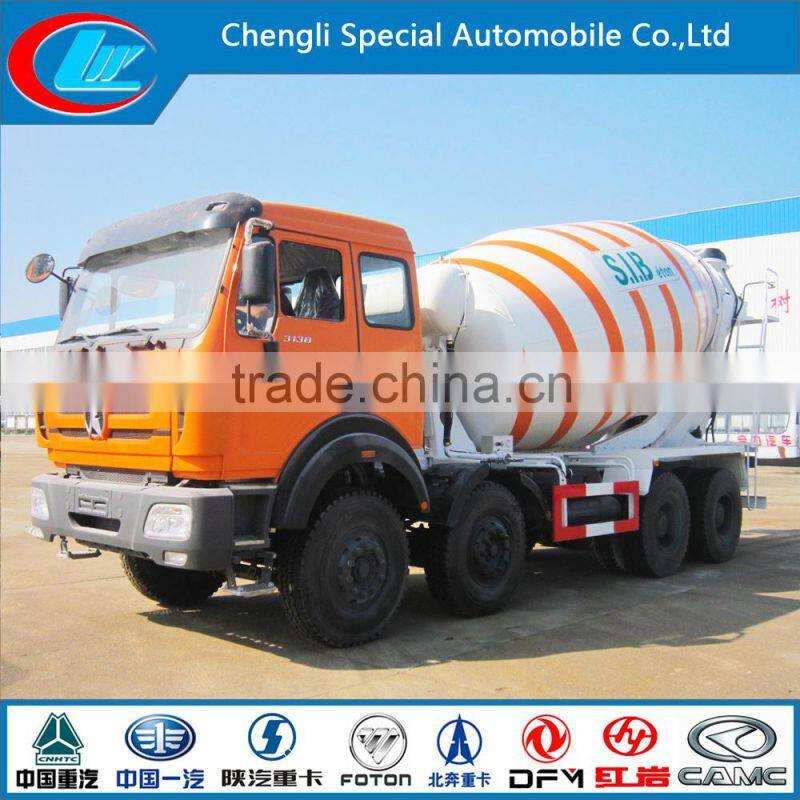

8X4 North Benz concrete mixer truck 31ton 12 wheels Beiben vertical concrete mixer
Technique Parameters
Model |
8X4 North Benz concrete mixer truck 31ton 12 wheels Beiben vertical concrete mixer |
||
Drive Model |
4X2 6X4 6X2 8X4 |
||
Vehicle Main Dimensions |
(L x W x H)mm |
11820*2500*3500 |
|
Wheel base (mm) |
1500+4750+1450 |
||
Wheel track (front/rear) (mm) |
1400/2900 |
||
Weight in KGS |
Curb Weight |
15000 |
|
G.V.W. |
30000 |
||
Max. driving speed(km/h) |
85 |
||
Engine |
Brand |
Weichai |
|
Model |
WD615.50 |
||
Type |
4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
||
Horse Power(HP) |
280 |
||
Displacement |
9.726L |
||
Max. Output Power |
206KW |
||
Emission standard |
Euro II |
||
Gearbox |
5S-111GP 9forwards& 1 reverse |
||
Clutch |
Reinforced diaphragm clutch, diameter 430mm |
||
Tire |
11.00-20,12.00-20,12.00-22.5,All steel radial tire, 1pc including 1 spare tire |
||
Brakes |
Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
||
Mixer Drum | |||
Volume |
8CBM 9CBM 10CBM 12CBM 13CBM 15CBM 20CBM 25CBM 30CBM 35CBM |
||
Water Supply Patterns |
Air Pressure |
||
Material |
Q235/Q345/610L/Q700 carbon steel, stainless steel, alloy steel |
||
Thickness |
12 13 14 15 16mm |
||
Tilt(°) |
11°-13° |
||
Rotation Speed(r/m) |
0-18 |
||
Material Discharging Speed |
3(M3/min) |
||
Material Remanining Ratio |
≤0.6% |
||
Company Information
1.Hubei Chengli Special Automobile Co, ltd which is appointed by Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks and semi-trailer.
2. Our company cooperates with famous chassis manufactureer, such as Beiben,North Benz, DONGFENG, FAW,SINOTRUK, JAC, SHACMAN, FOTON,CMAC, and etc. We can produce more than 300 kinds of special trucks and semi-trailer.
3.Chengli take customer's satisfaction as the top requirement. All of the trucks and semi-trailer sell to Africa, South-east Aisa, Australia, Middle-east and other place.
4.We serve the best service for each client.

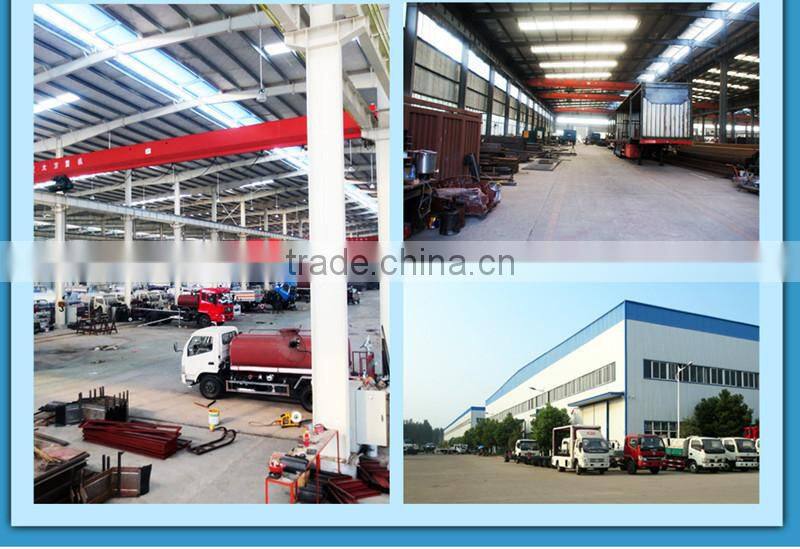

Factory Scene
Workshop Scene
Test Equipments
After-sale Service
1. 12months for 3 key parts (engine, transmission, axle).
2. Tracking service time: lifelong.
3. Third-party service for overseas client.
Conact Information
Name Caroline GAO
Skype caroline.gao1990
Cel. 0086-2783796298
Mobile 0086-13872281763
Wechat 15117073372
E-mail truckcl.caroline(@)
truckcl.caroline(@)
specialtruck(@)
8X4 North Benz concrete mixer truck 31ton 12 wheels Beiben vertical concrete mixer
Look forward to having your response!!!
