Home > Products > Dump truck > 6X4 Faw Mining Trucks for sale

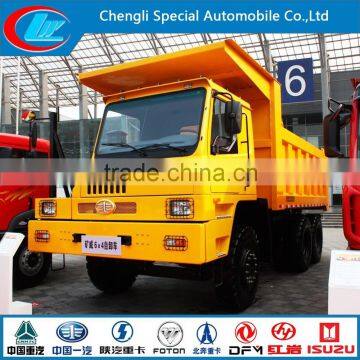

6X4 Faw Mining Trucks for sale
- 10000 Unit / Units per Month
- ANY PORT IN CHINA
- T/T D/P D/A Credit Card
You May Like
-
CMAC Dump Trucks for sale
-
336HP CMAC Tippers 10 wheels CMAC dumper truck 6X4 tipper truck 25ton dump truck
-
OEM ODM Front Tipping End Tippers for sale
-
China Euro 3 25ton HOWO Heavy Truck 6x4 Dump Truck Heavy Truck HOWO TRUCK HEAVY DUTY
-
6x4 Sinotruk Howo heavy load truck 30tons end tipper truck dumper lorry dump truck HOWO 10wheels SINOTRUK heavy load truck
-
SINOTRUK 6X4 tipper 10wheels tipper truck HOWO Heavy Duty tipper 10 wheel tipper
Product Details
| Drive Wheel | 6x4 | Capacity (Load) | 41 - 50t | |
| Horsepower | 351 - 450hp | Condition | New | |
| Transmission Type | Manual | Emission Standard | Euro 2 | |
| Fuel Type | Diesel | |||
| Gross Vehicle Weight | 50000 | Place of Origin | Hubei, China | |
| Brand Name | Faw Mining Trucks | Model Number | FAW530000 | |
| Dimensions (L x W x H) (mm) | 8500*3300*3670 |
Product Description
6X4 Faw Mining Trucks for sale
FAW Mining Dump Truck/FAW mining dumpers/
FAW mining tipper truck/FAW mining end tippers
Technique Parameters of End Tippers
Model | FAW Mining Dump Truck/FAW mining dumpers/ FAW mining tipper truck/FAW mining end tippers/FAW dumper | ||
Drive model | 4X2 6X4 8X4 6X2 | ||
Vehicle Main Dimensions | (L x W x H)mm | 8620*3250*3950 | |
Wheel base (mm) | 3750+1500 | ||
Wheel track (front/rear) (mm) | 2750/2520 | ||
Approach/Departure angle(°) | 32/40 | ||
Weight in KGS | Curb Weight | 23000 | |
G.V.W. | 46000 | ||
Max. driving speed(km/h) | 45 | ||
Engine | Brand | FAW | |
Model | WD615.69 | ||
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||
Horse Power(HP) | 336 | ||
Displacement | 9.726L | ||
Max output power | 247KW | ||
Emission standard | Euro Ⅱ | ||
Gearbox | RT-11509C, 9 forwards & 2 reverse | ||
Clutch | Reinforced diaphragm clutch, diameter 430mm | ||
Steering Gear | ZF 8098,power steering, hydraulic steering with power assistance | ||
Fuel tank (L) | 350 | ||
Tire | 14.00-24 All steel radial tire , 11 pieces including one spare tire | ||
Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | ||
Dump Box | |||
Hydraulic System | T-type middle lift or Front tipping | ||
Dimension | 5400*3100*1500 | ||
Material | Q235/Q345/610L/Q700 | ||
Tipping Angle | 51 degree | ||
Factory Scene
Workshop Scene of End Tippers
Test Equipments for End Tippers
Other Trucks for Show
We can make more than 300 kinds of trucks and semi-trailers.
