Home > Manufacturing & Processing Machinery > Cutting & Fold-bend Machine > Bending Machine > GW40 Electric Steel Bar Bender

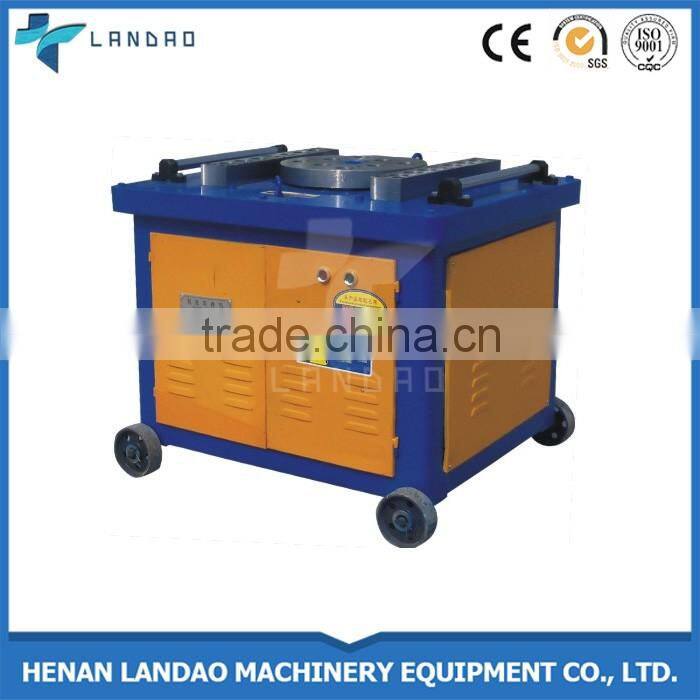

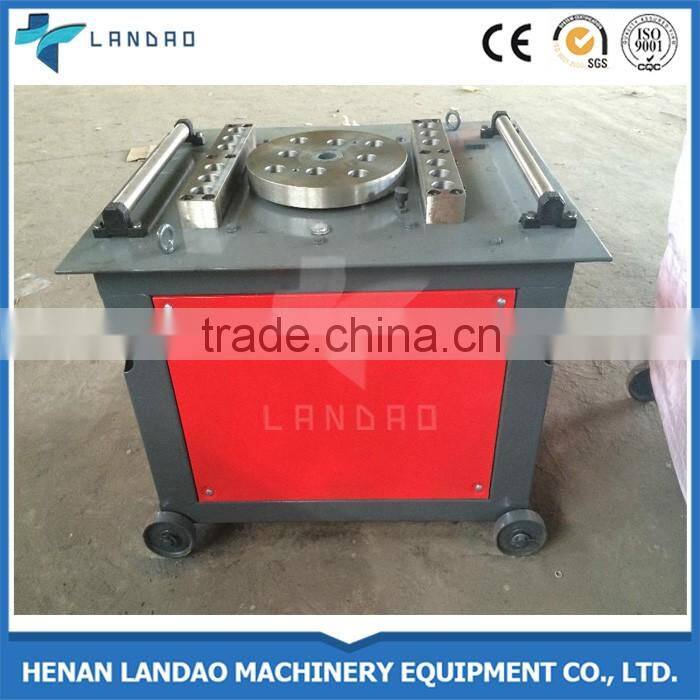

GW40 Electric Steel Bar Bender

Name: GW40 Electric Steel Bar Bender
Brand: LANDAO
SKU: 125301673
Availability: InStock

GW40 Electric Steel Bar Bender thumbnail-1

GW40 Electric Steel Bar Bender thumbnail-2

GW40 Electric Steel Bar Bender thumbnail-3

GW40 Electric Steel Bar Bender thumbnail-4

GW40 Electric Steel Bar Bender thumbnail-5

US$ 700 - 1,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Henan, China

Brand Name:

LANDAO

Contact Supplier Request Quote Chat Now

Henan Landao Machinery Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao/Tianjin/Shanghai/Ningbo or according to your demands

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Henan, China

Brand Name LANDAO

Model Number GW40 GW50

Machine Type Roller-Bending Machine

Raw Material Other, Steel Bar, Steel Bar

Material / Metal Processed Other, Stainless Steel, round

Power Cnc

Automation Automatic

Extra Services Machining

Certification ISO 9001:2000

After-sales Service Provided Engineers available to service machinery overseas

Product description

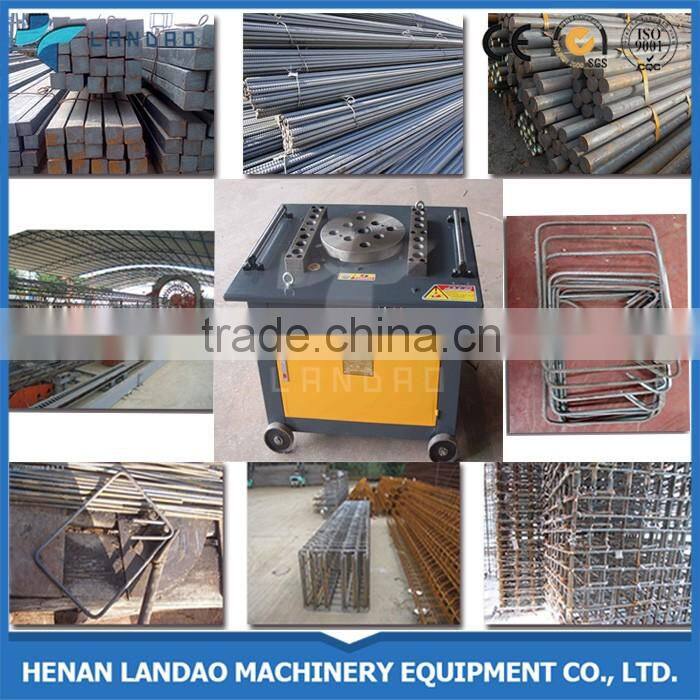

GW40 electric steel bar bender is one kind of steel bar processing machine,widely used

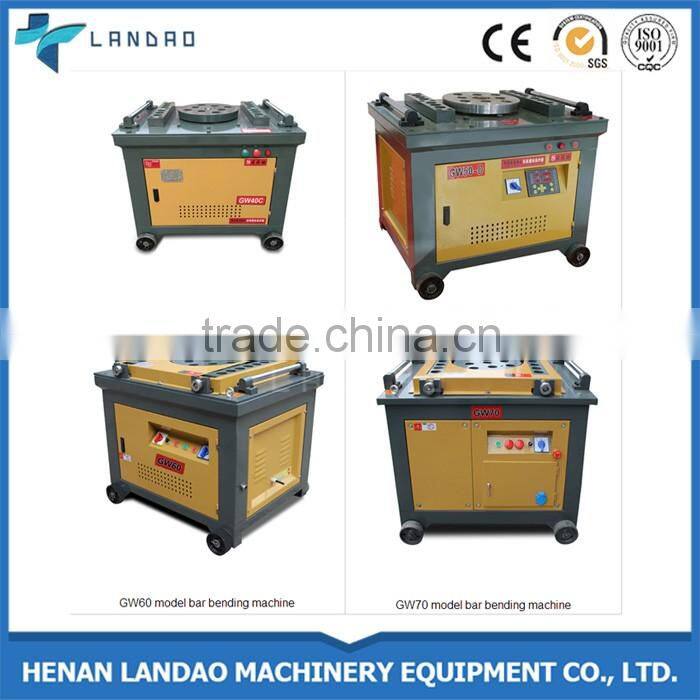

construction building field. It constitued by the motor, gear, operation disc, breaker and machine body. This machine is able to bend ribbed steel bar diameter from 6mm to 40/50/6070 mm, with various shapes using in construction project. According to bending capacity, it can be classfied GW40,GW50,GW60,GW70 model bar bending machine with manual, automatic,PLC.

Specifications:

Technical parameters of GW40A/GW40/GW50/GW60 steel bar bending machine
Model	GW40A	GW40	GW50	GW60
Bending Diameter	Plain carbon steel ≤Φ32mm	Plain carbon steel ≤Φ40mm	Plain carbon steel ≤Φ50mm	Plain carbon steel ≤Φ55mm
	Deformed steel ≤Φ25mm	Deformed steel ≤Φ32mm	Deformed steel ≤Φ40mm	Deformed steel ≤Φ50mm
Operation disc spec	Φ300mm	Φ350mm	Φ400mm	Φ600mm
Axis Rotate speed	4.5r/min	high speed:9.63r/min	2.685r/min	8r/min
		low speed:4.68r/min
Motor power	2.2KW	3KW	4KW	5.5KW
Voltage	380V/220V/440V/415V
Motor Rotate speed	1429r/min	1429r/min	1400r/min	1400r/min
Overall Dimension	91×81×95cm	93x73x71cm	106×81×72cm	108×85×74cm
Whole Weight	245Kg	350kg	450kg	700kg

Features

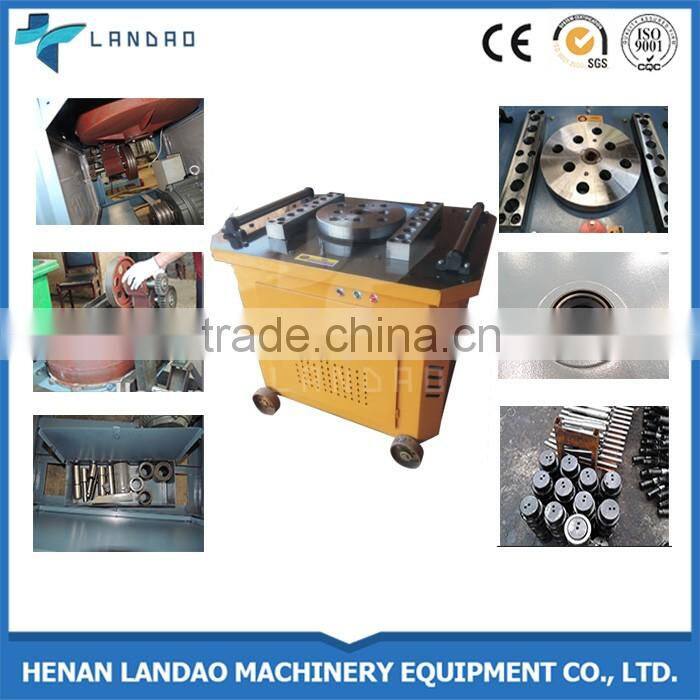

Feature of GW40 electric steel bar bender

1. the latest heavy-duty gear box assembly, spindle is a maintenance free

2. Column and spool adopt high quality alloy steel, high temperature quenching treatment, higher hardness , more wear-resisting

3. increase heavy of disc and square steel, Never deformation, bend bar more accurately

4. enclosed electric cabinet, moistureproof, prevent dust, prevent leakage

5. thickening the dashboard, increase the integrity of the machine and longer service life

6. double-sided operation, so that people can operate in two directions conveniently and quickly

7. Rotary oil-way of work station make add oil more conveniently.

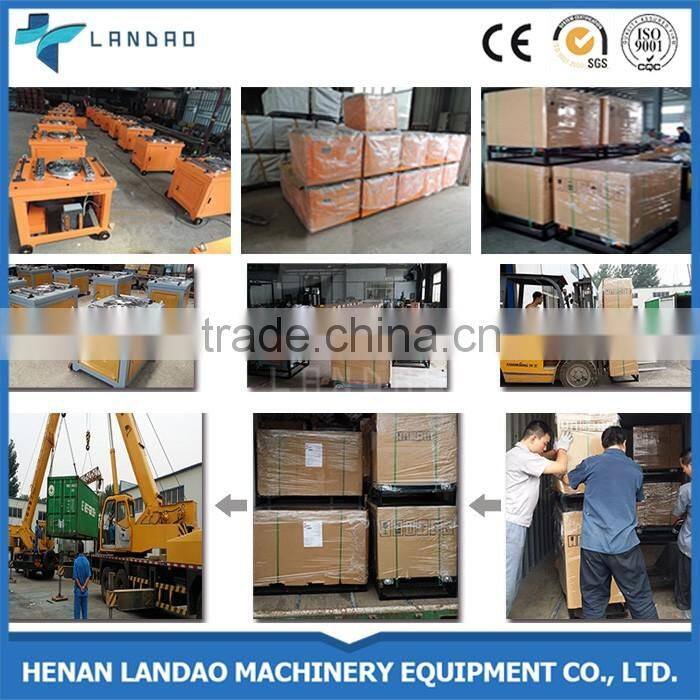

Packaging & Shipping

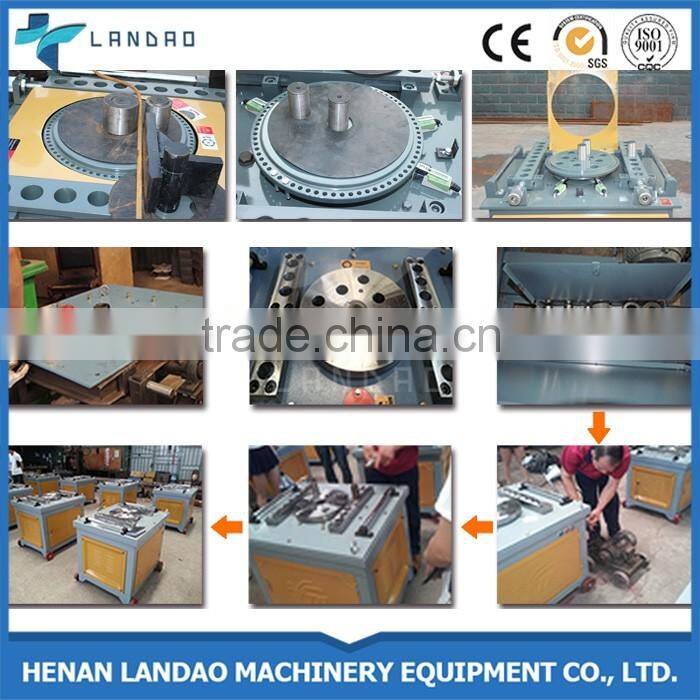

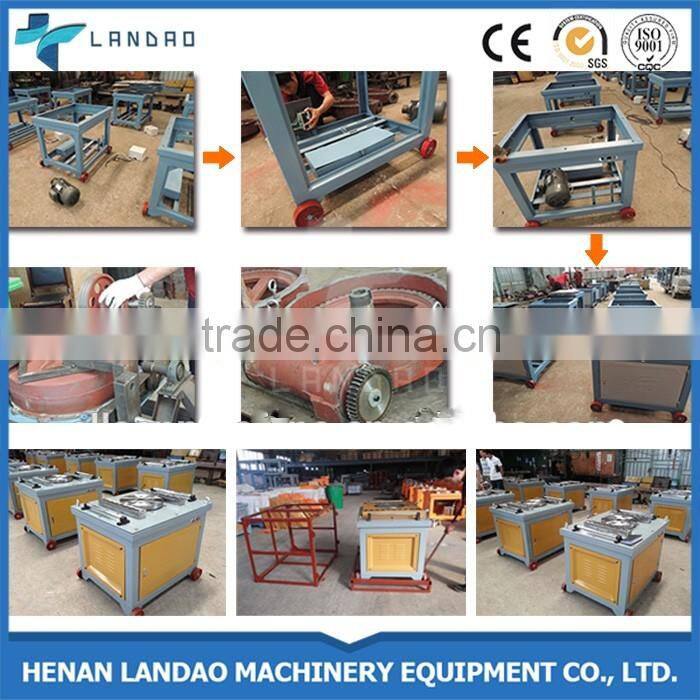

Factory Photo & Product Details

we have about 20 years’ manufacture experience

Our Services

Pre-sale service:
1.Before service, we are willing to act as consultant and assistant.
2.We will give our professional suggestion about equipment model.
3.We will design and produce machines according to customers’ demands.
4.Before we begin to produce, we will send customers confirmation order in which the specifications and quantity is shown in detail.
5.We will send our experts to investigate buyer’s working site then design the best flow chart and scheme.

Selling service:
1.We will respect customers’ choice and aim to create largest benefit for customers.
2.We will do the quality test after finishing producing.
3.WE have QC department which is responsible to control quality from the producing materials to final machines.
4.We will help customers to design capital?construction.

After- service:
1.We will send our technicians to install machines and debug machines.
2.We will train workers for customers.
3.We will follow customers’ usage and telephone follow-up.
4.our guarantee period is 24 months except wearing parts. We provide spare parts at low price.

Why Choose Us

FAQ

Q:Are you direct manufacture?
A:Yes, we are professional in the field of construction machines for about 20 years. Our factory covers an area of 10000 square meters. Now there are 4 workshops to produce. We have advanced processing equipment like boring mill, laser cutting machine, turning lathe, milling machine and so on.

Q:Did you export before?
A:Yes, of course. our machines have great reputation in abroad.We exported to Cuba, Uzbekistan, Malawi,Outer Mongolia and other 13 countries. We provide complete service from consultation, product introduction, visiting the running site, sending machines, help clients to do custom clearance and install machines and follow usage feedback.
