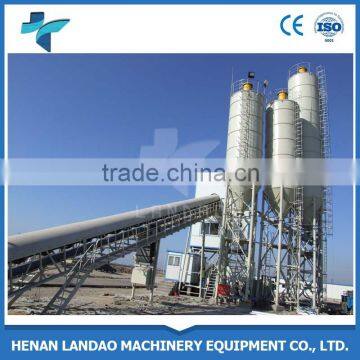

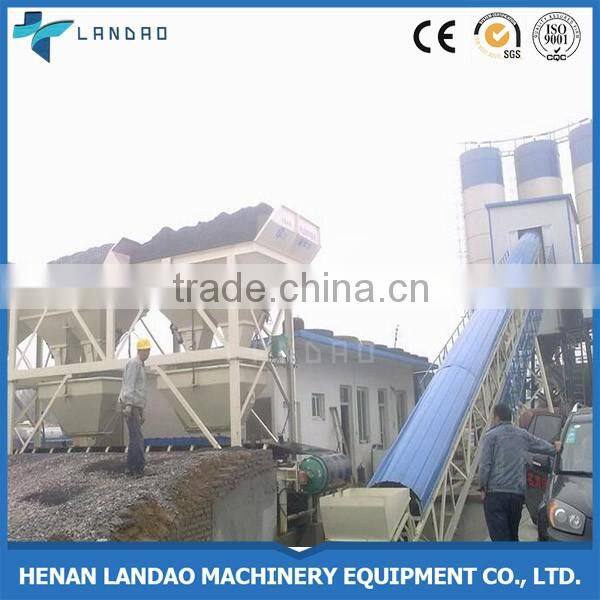

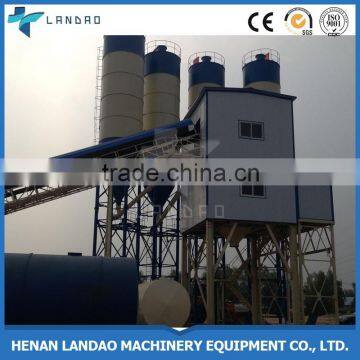

2016 belt type precast concrete mixing plant
Product description of precast concrete mixing plant
1. concrete batching plant belongs to compulsory and efficiency equipment,
it can produce various kinds of concrete including quaking concrete and hard concrete, with high produce efficiency.we have dedicated in manufacturing concrete mixing plant for many years.

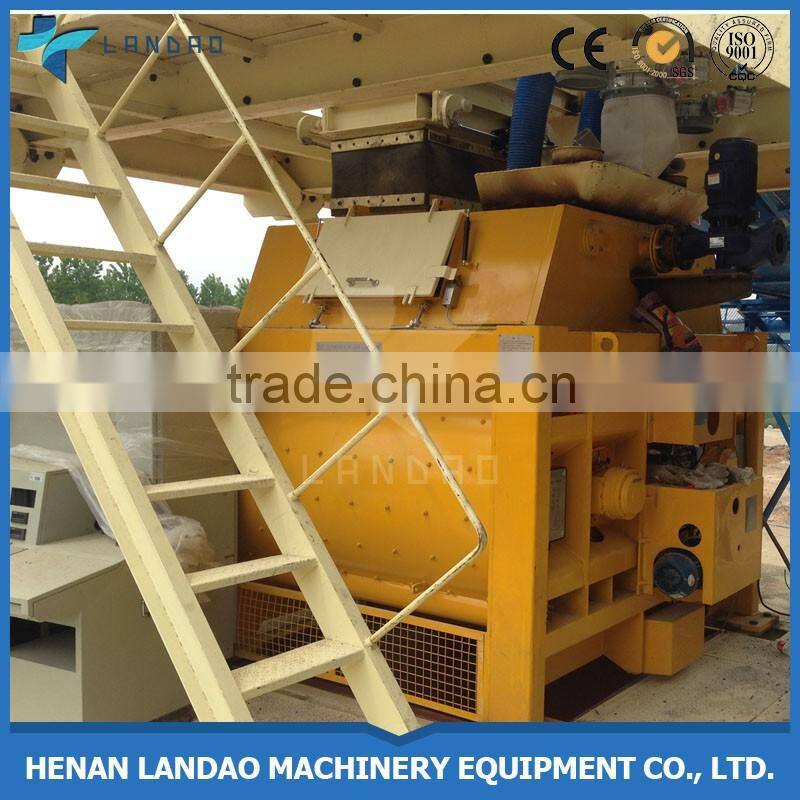

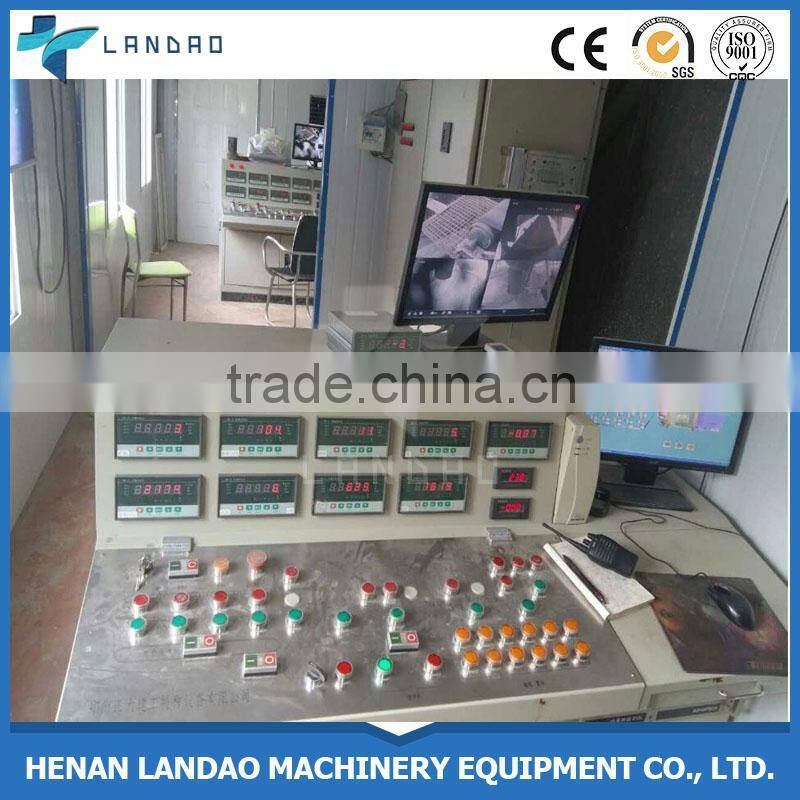

2. The main machine of this series use JS series double shaft compulsory mixer, it can mix concrete evenly, with a short period of mixing, long time wearing parts, it can be operated and maintained conveniently, it used control technology with newest deign concept, for example: electric weighing, computer control, digital display, etc., electric weighing has been equipped with buffer device and auto compensation function and the measure precision is high.

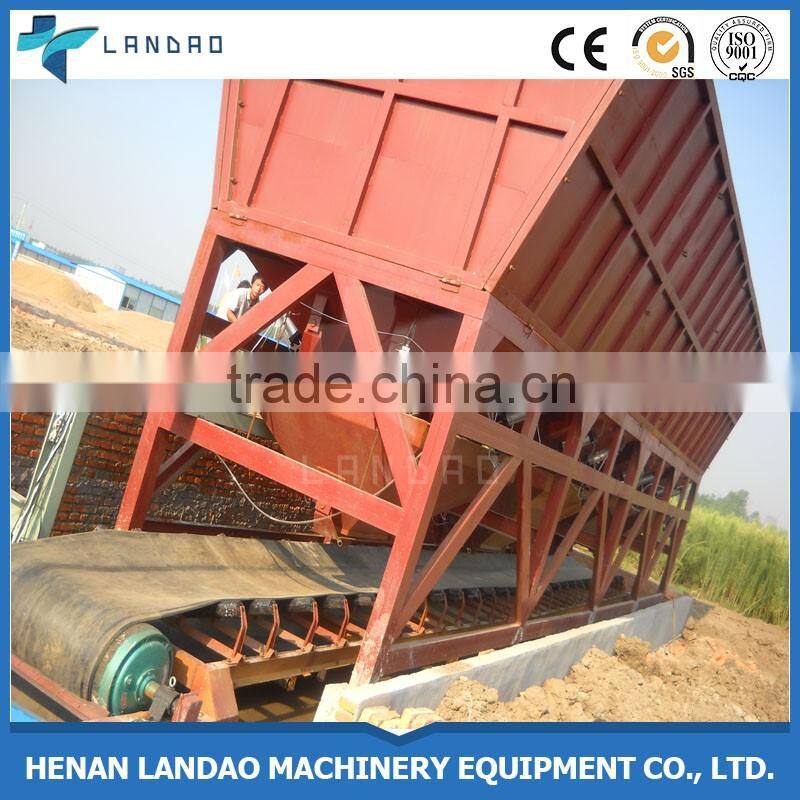

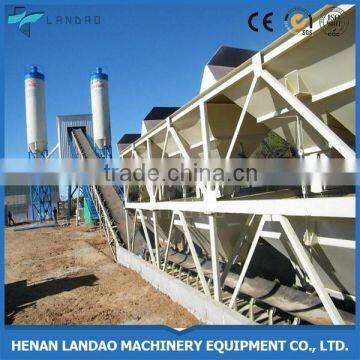

3. The sand and stone feeding system use flat(conveyor) belt or using a large width of the belt feeding the word,with people walking road.It is the ideal selection for the construction units to produce high quality concrete.

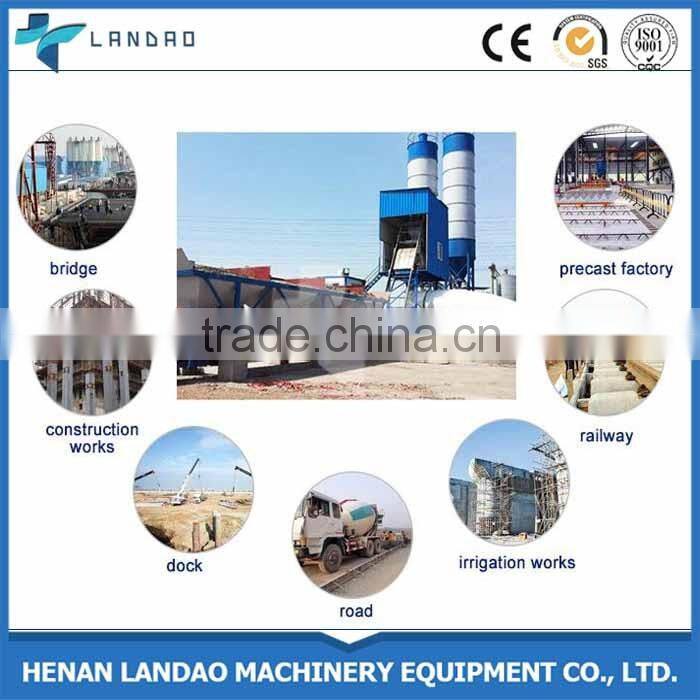

Application of precast concrete mixing plant:
belt type precast concrete mixing plant is high-efficient forced concrete mixing equipment, which is widely used in big/medium construction project, road, bridge project, etc. According to the aggregate feeding way, there are bucket skip type concrete batching plant and belt conveyor concrete batching plant.
Specifications of precast concrete mixing plant:
Model |
HZS25 |
HZS35 |
HZS50 (60) |
HZS75 (90) |
|
Productivity (m3/h) |
25 |
35 |
50 (60) |
75 (90) |
|
Mixer capacity (m3) |
0.5 |
0.75 |
1 |
1.5 |
|
Batching system |
PLD1200 |
PLD1200 |
PLD1600 |
PLD2400 |
|
Discharging height (m) |
3.8 |
3.8 |
3.8 |
3.8 |
|
Cycle time (s) |
60 |
60 |
60 |
60 |
|
Weighing accuracy |
Aggregate |
±2% |
±2% |
±2% |
±2% |
|
Cement |
±1% |
±1% |
±1% |
±1% |
|
Water |
±1% |
±1% |
±1% |
±1% |
|
Additive |
±1% |
±1% |
±1% |
±1% |
Features
Feature of precast concrete mixing plant
1.High efficient twin shaft concrete mixer.
2.It adopts knockdown structure and blocking. It is combine mode.
2.The machine adopts concrete mixer, it has good mixing quality and high efficiency.
3.The batching machine, it is measuring nicety and high produce efficiency.
4.The forced water supply system spray equably and has washing function for the mixing system.

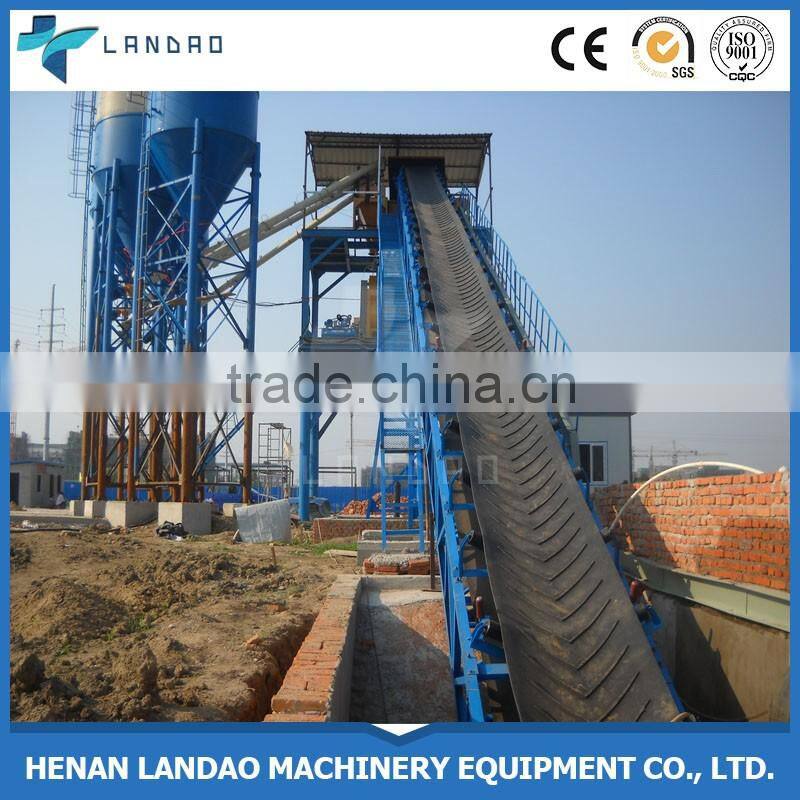

5.Belt type aggregate conveying system
6.It adopts the electrician weight to measure all the aggregate, cement, water, liquid additive.

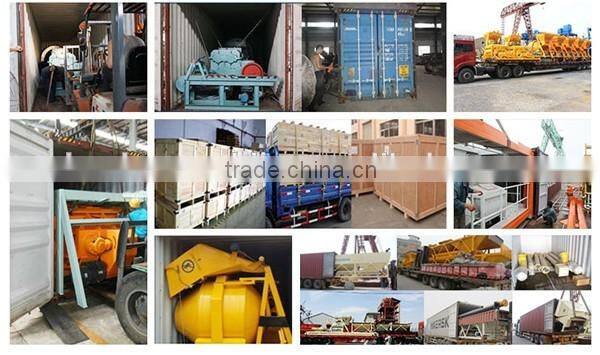

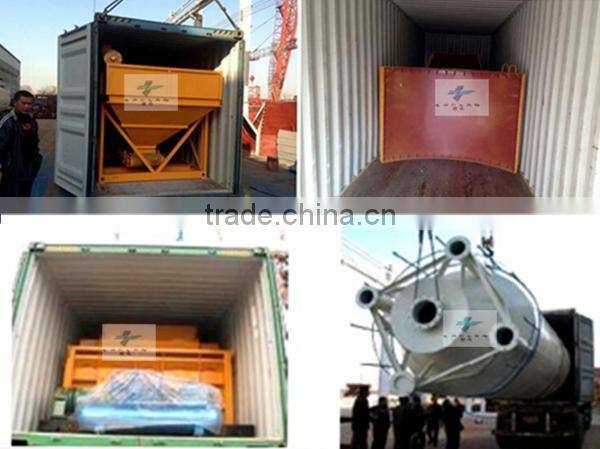

Packaging & Shipping

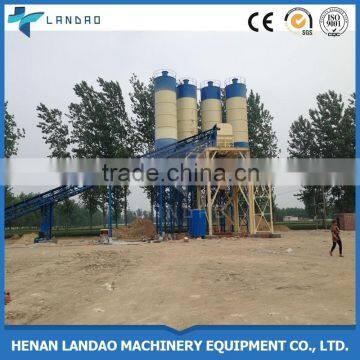

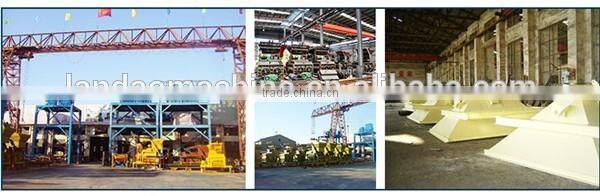

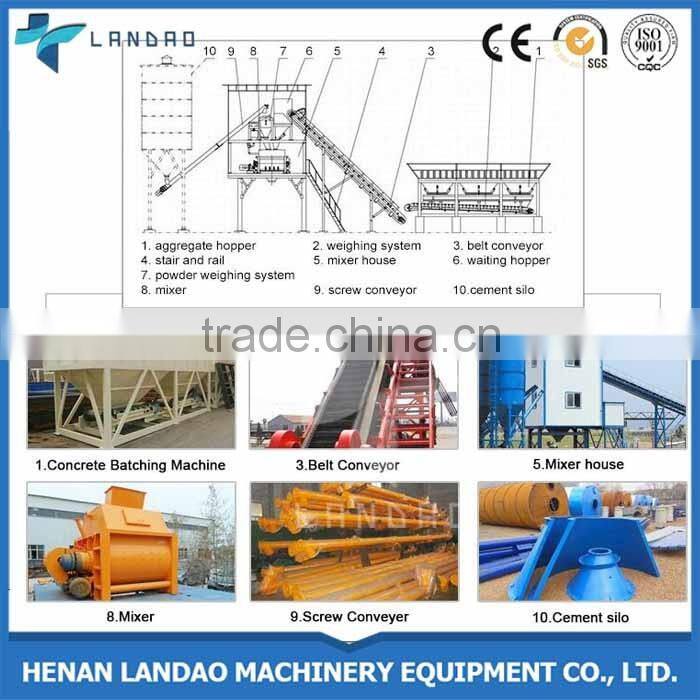

Factory Photo & Product Details
we have about 20 years’ manufacture experience
Our Services
Pre-sale service:
1.Before service, we are willing to act as consultant and assistant.
2.We will give our professional suggestion about equipment model.
3.We will design and produce machines according to customers’ demands.
4.Before we begin to produce, we will send customers confirmation order in which the specifications and quantity is shown in detail.
5.We will send our experts to investigate buyer’s working site then design the best flow chart and scheme.
Selling service:
1.We will respect customers’ choice and aim to create largest benefit for customers.
2.We will do the quality test after finishing producing.
3.WE have QC department which is responsible to control quality from the producing materials to final machines.
4.We will help customers to design capital?construction.
After- service:
1.We will send our technicians to install machines and debug machines.
2.We will train workers for customers.
3.We will follow customers’ usage and telephone follow-up.
4.our guarantee period is 24 months except wearing parts. We provide spare parts at low price.
Why Choose Us
FAQ
Q:Are you direct manufacture?
A:Yes, we are professional in the field of construction machines for about 20 years. Our factory covers an area of 10000 square meters. Now there are 4 workshops to produce. We have advanced processing equipment like boring mill, laser cutting machine, turning lathe, milling machine and so on.
Q:Did you export before?
A:Yes, of course. our machines have great reputation in abroad.We exported to Cuba, Uzbekistan, Malawi,Outer Mongolia and other 13 countries. We provide complete service from consultation, product introduction, visiting the running site, sending machines, help clients to do custom clearance and install machines and follow usage feedback.
