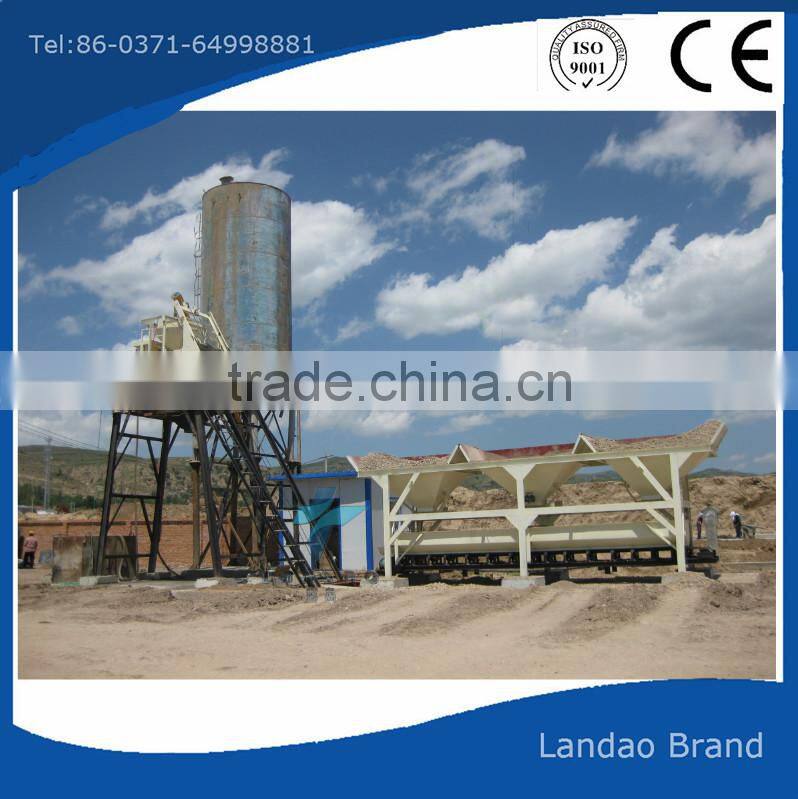

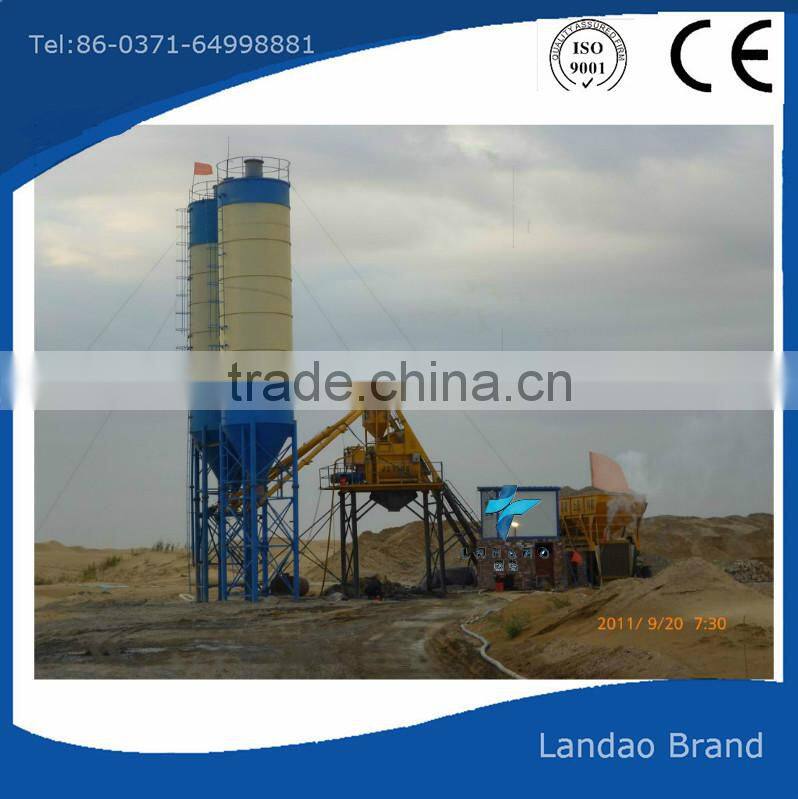

mini compact 35m3/h concrete batching plant with bucket loading
35m3/h concrete batching plant is applicable for concrete precast components, road, bridge,
irrigation works,dock and civil building projects. 35m3/h concrete batching plant with bucket
could mix dry concrete, hard concrete, light-aggregate concrete and different kinds of mortar.
(1)our 35m3/h concrete batching plant with bucket loading is with high efficiency and could get
good-quality concrete.
It could mix many kinds of materials such as mix quaking concrete, dry concrete, hardconcrete,
light-aggregate concrete and different kinds of mortar. HZS35 concrete batching plant could
automatically load materials.
(2)mini HZS35 Concrete Batching Plant Adopt combined structure and modular unit,
convenient to install and remove;
(3)It is easy to disassemble and could be adaptive to different project sites.
(4)Weighing and control system: adopt new-design of electrical weighing system, can work with
computer, SIEMENS PLC, digital display, etc, which will make sure the measurement accurate and
timely;
(5)Water is flow-metering, simple and practical, highly accurate dosing
mini compact 35m3/h concrete batching plant with bucket loading mainly includes the following
systems: concrete mixing system, aggregate batching and weighing system, cement weighing
system, water weighing system, additive weighing system (optional), cement silo, screw
conveyor, full automatic control system,etc.
Model |
HZS25 |
HZS35 |
HZS60 |
HZS90 |
HZS120 |
HZS150 |
capacity(m3/h) |
25 |
35 |
60 |
90 |
120 |
150 |
Discharge height(m) |
1.5-3.8 |
1.6-3.8 |
3.8 |
3.8 |
4 |
4 |
Operating period |
72 |
72 |
60 |
60 |
60 |
60 |
Mixer model |
JS500 |
JS750 |
JS1000 |
JS1500 |
JS2000 |
JS3000 |
Dosing machine |
PLD800 |
PLD1200 |
PLD1600 |
PLD2400 |
PLD3200 |
PLD4800 |
Air compressor |
0.6-8 |
0.6-8 |
0.9-8 |
1.2-8 |
1.67-8 |
1.67-8 |
Aggregate weighing accuracy(%) |
0.6 |
0.6 |
0.9 |
1.2 |
1.67 |
1.67 |
Aggregate weighing accuracy(%) |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
Aggregate weighing accuracy(%) |
5.5 |
5.5 |
7.5 |
11 |
11 |
15 |
Aggregate weighing accuracy(%) |
±2% |
±2% |
±2% |
±2% |
±2% |
±2% |
cement weighing accuracy(%) |
±1% |
±1% |
±1% |
±1% |
±1% |
±1% |
water weighing accuracy(%) |
±1% |
±1% |
±1% |
±1% |
±1% |
±1% |
Additive weighing accuracy |
±1% |
±1% |
±1% |
±1% |
±1% |
±1% |
*We will send our technicians to install machines and debug machines.
*We will train workers for customers.
*We will follow customers’ usage and telephone follow-up.
*our guarantee period is 24 months except wearing parts. We provide spare parts at low price.
Zhengzhou Landao Machinery and Equipment Co.,ltd is established in 2003. Our factory is located in Zhengshang Road, Xingyang District, Zhengzhou City, Henan province. Our company ZhengzhouLandao is specialized inmanufacturing and selling construction m
Our company mainly is engaged in concrete mixers, concrete mixing plant, stabilized soil mixing
plant, concrete batching machine, cement silo, brick machine and road maintenance equipment.
We have completed automatic and integrated upgrades. Because of our high quality, high performanceand high efficiency, our company and products enjoy great reputation at home and
abroad. machines and engineering machines.
