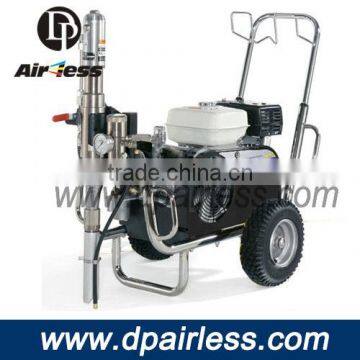

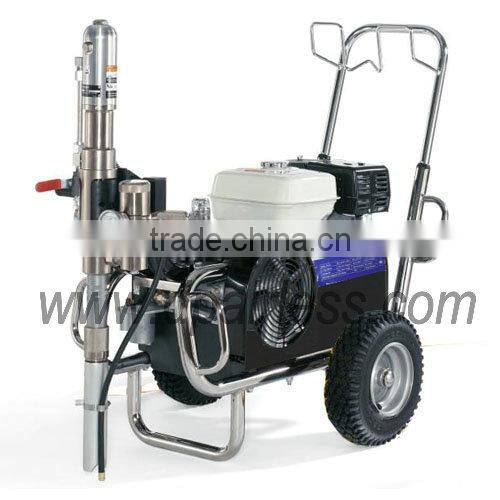

DP-9600 Professional Hydraulic Airless paint sprayer

Specifications

The DP-9600 Airless paint sprayer is part of the Heavy duty Hydraulic Piston Pump range.



The DP-9600 Airless paint sprayer is part of the Heavy duty Hydraulic Piston Pump range.

Ideal for high viscosity materials, multi-gun use and working at heights. Sprays bituminous and fire retardant / fireproofing material, bitumen, epoxy, putty, Polyurethane Paint, gypsum,dry wall mud, all kinds of high viscosity materials or even 100% solid heavy material.

Specification:

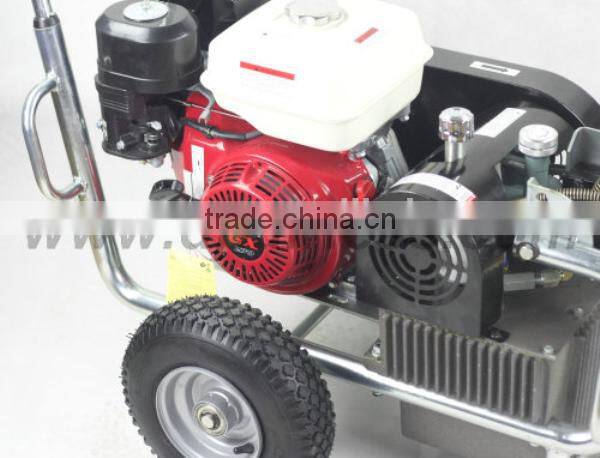

Power 9.0HP Petrol Honda
Pressure 228bar / 3300psi
Flow Rate 12.0 L/min
Max Tip Size 0.056” 1 gun
Max Hose Length 90 m
Weight 89 kg
Carton Dimension: 120*75*120 cm
Container Loading Data: 30 sets/20ft
Comes complete on Heavy Duty Trolley, High Flow Hydraulic Piston Pump, Airless Gun, 15 metre * 3/8 “ Hose, Airless Tip 629#, Base and Tool Set.

Features :

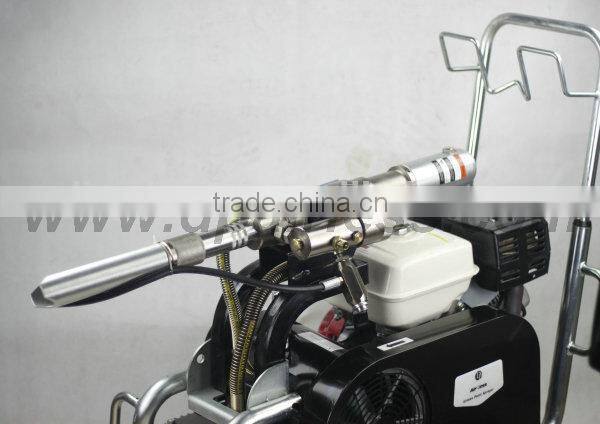

Powerful high-performance pump -the power pack for large building projects and applying high viscosity materials.

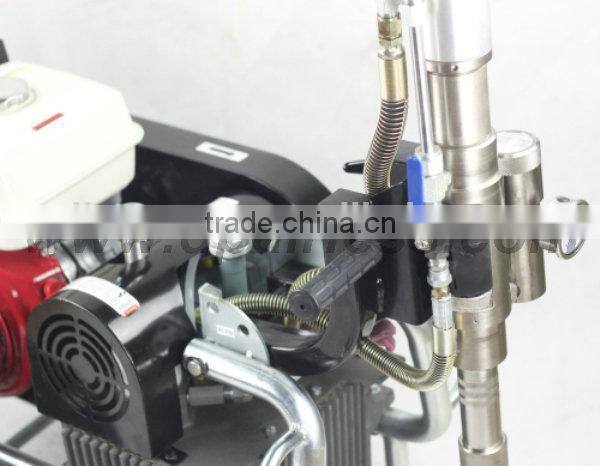

The material pump of the Heavy duty units is driven by hydraulic motor which is imported from Japan (Taiwan hydraulic motor is available with cheaper price).
This has advantage that the shovel piston has a distinctly longer and slower stroke than with direct drive electric pumps.
The high suction power improves the application of high viscosity materials.
The low wear rate and the equipment are further positive aspects of hydraulic technology.
The wear surfaces of cylinder and piston rod are coated with an extremely wear resistant layer of hard chrome, making them able to with-stand aggressive and abrasive materials.
The pressure can be smoothly regulated up to 230 bar for perfect matching.

Applications :
Indoors :
Large interior wall surfaces requiring a high level of productivity and surfaces coverage power:e.g. Primers, latex paints, emulsions and all other water diluted and solvent based materials
Applications of fillers (airless spray fillers)
Flame proofing / fireproofing, putty / plaster, gypsum,

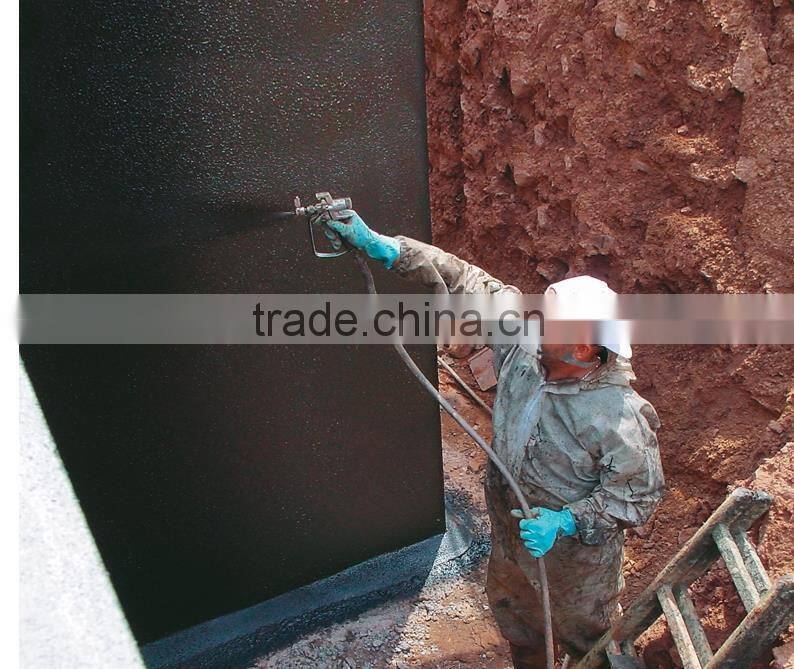

Outdoors :
Exterior wall surfaces
Roof coatings
Thick coating materials
Bituminous paints
Corrosion proofing
Inorganic zinc and micaceous iron paints basement sealants.

Other :
- Fabric and other adhesives
- epoxy paint
- polyurethane paint
etc
