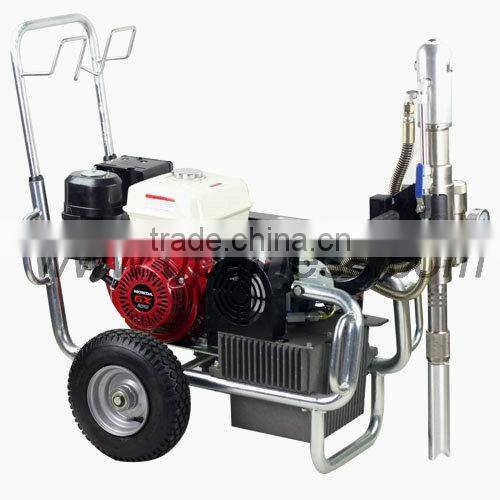

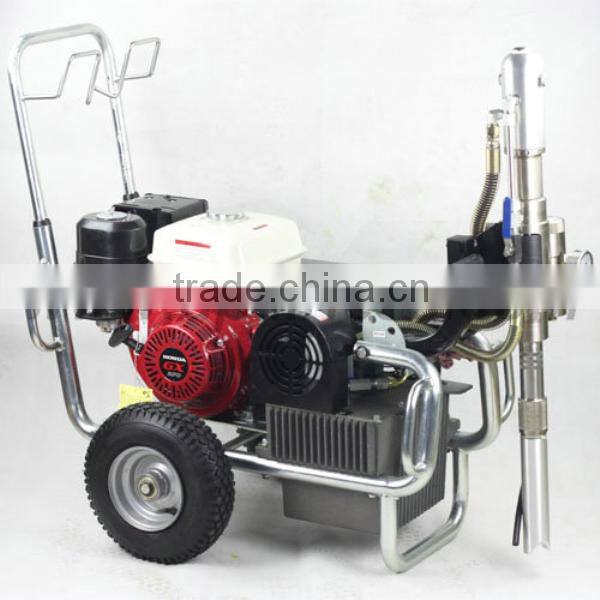

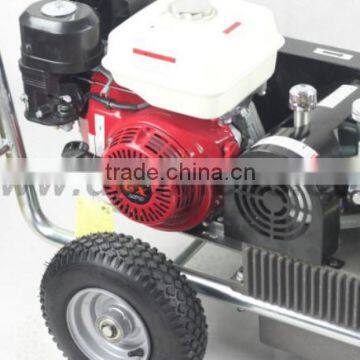

DP-9600 Hydraulic Airless High-Pressure Spraying Pump Unit (Petrol Powered)

DP-9600 Hydraulic Airless High-Pressure Spraying Pump Unit (Petrol Powered)

DP-9600 Hydraulic Airless High-Pressure Spraying Pump Unit (Petrol Powered)

The DP-9600 Airless paint sprayer is Heavy duty Hydraulic driven Piston Pump sprayer. which is powered by Petrol engine or Electrical motor. Ideal for high viscosity materials, multi-gun use and working at heights. Sprays bituminous and fire retardant / fireproofing material, bitumen, epoxy, putty, Polyurethane Paint, gypsum,dry wall mud, white cement, all kinds of high viscosity materials or even 100% solid heavy material.

Specification:

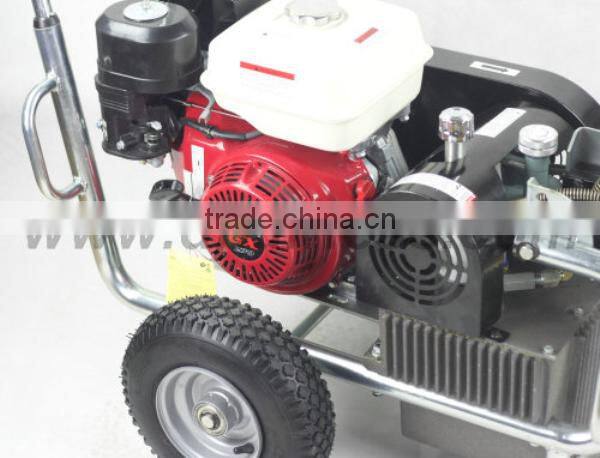

Power 9.0HP Petrol Engine Honda or other Chinese brand. [ OR electrical motor powered]

Pressure 228bar / 3300psi

Flow Rate 12.0 L/min

Max Tip Size 0.056” * 1 gun

Max Hose Length 90 m

Hydraulic oil. DTE24 32# (we recommend the user to change the oil every 6 months)

Net Weight 89 kg

Carton Dimension: 120*75*120 cm

Container Loading Data: 30 sets/20ft

Comes complete on Heavy Duty Trolley, High Flow Hydraulic Piston Pump, Airless Gun, 15 meters * 3/8 “ Hose, 1m*1/4″ whip hose, Airless Tip 643#, Base and Tool Set.

Features :

Powerful high-performance pump -the power pack for large building projects and applying high viscosity materials.

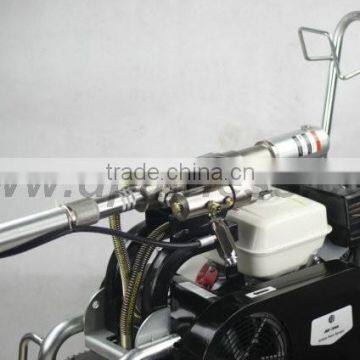

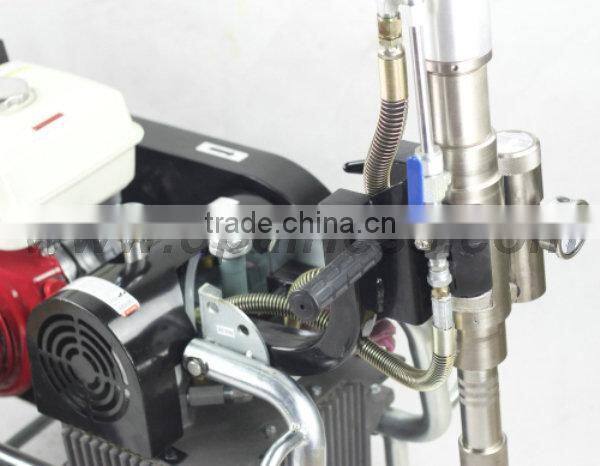

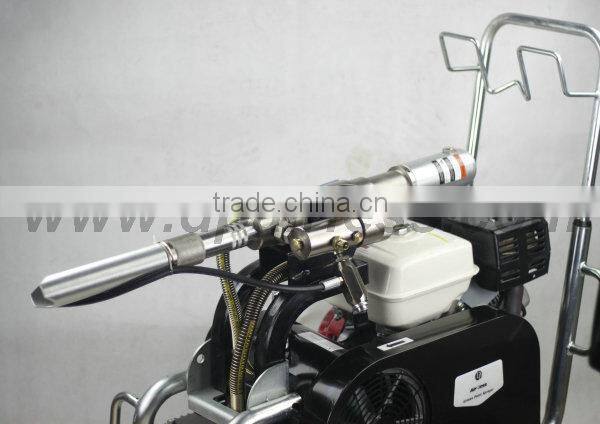

The material pump of the Heavy duty units is driven by hydraulic motor which is imported from Japan (Taiwan hydraulic motor is available with cheaper price).

This has advantage that the shovel piston has a distinctly longer and slower stroke than with direct drive electric pumps.

Our own improved bigger oil tank which contains of 13L hydraulic oil inside, much bigger than original machine which is only 5L. The more oil inside, the less temperature machine is operating, and less wearing for the spare parts.

The low wear rate and the equipment are further positive aspects of hydraulic technology.

The wear surfaces of cylinder and piston rod are coated with an extremely wear resistant layer of hard chrome, making them able to with-stand aggressive and abrasive materials.

The pressure can be smoothly regulated up to 230 bar for perfect matching.

Applications :

Indoors :

Large interior wall surfaces requiring a high level of productivity and surfaces coverage power:e.g. Primers, latex paints, emulsions and all other water diluted and solvent based materials

Applications of fillers (airless spray fillers)

Flame proofing / fireproofing, putty / plaster, gypsum,

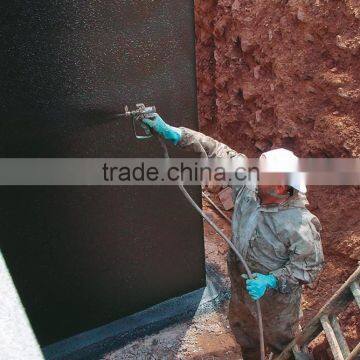

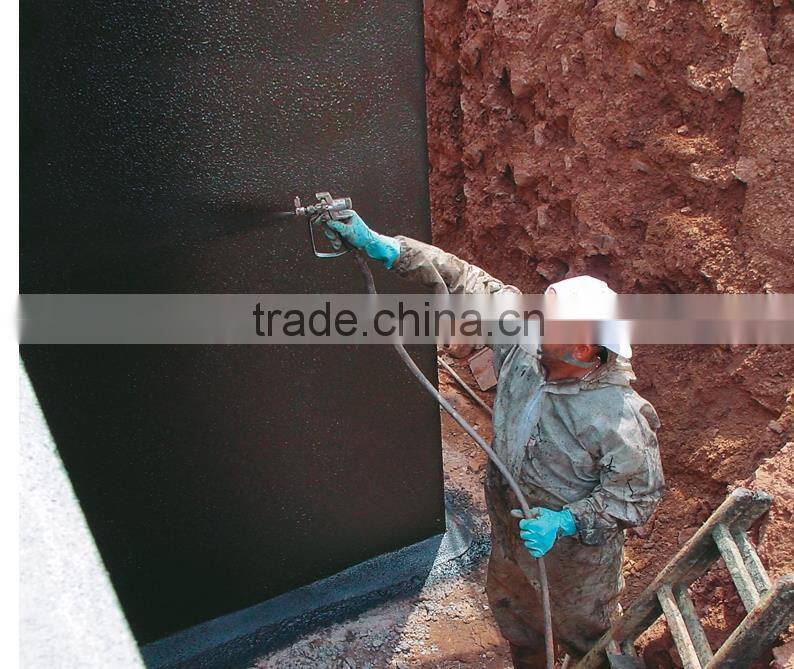

Outdoors :

Exterior wall surfaces

Roof coatings

Thick coating materials

Bituminous paints

Corrosion proofing

Inorganic zinc and micaceous iron paints basement sealants.

Other :

- Fabric and other adhesives

- epoxy paint

- polyurethane paint

etc
