Die Casting 7W 10W 15W 22W SMD2835 Color Tempreture Change IP65 Waterproof Outdoor Led Downlight

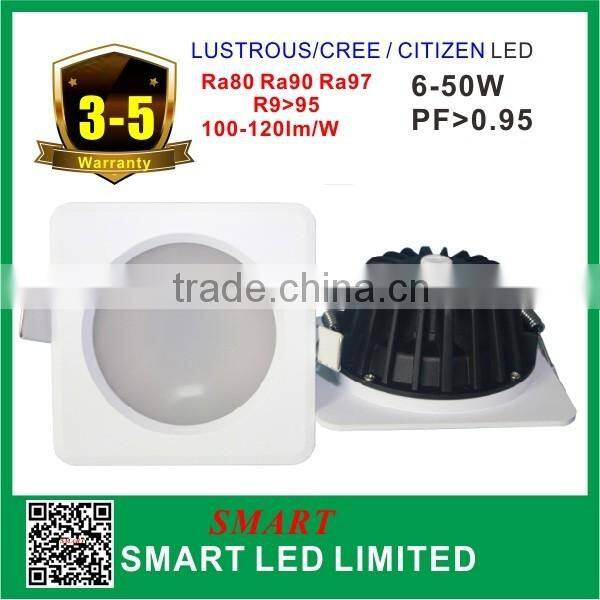

Die Casting 7W 10W 15W 22W SMD2835 Color Tempreture Change IP65 Waterproof Outdoor Led Downlight photo-1

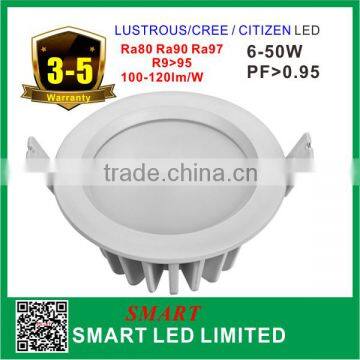

Die Casting 7W 10W 15W 22W SMD2835 Color Tempreture Change IP65 Waterproof Outdoor Led Downlight photo-2

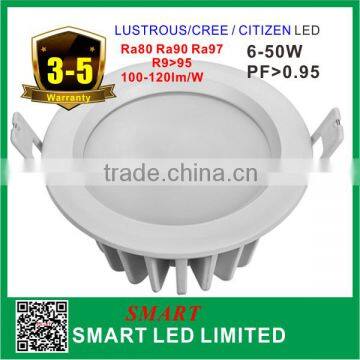

Die Casting 7W 10W 15W 22W SMD2835 Color Tempreture Change IP65 Waterproof Outdoor Led Downlight photo-3

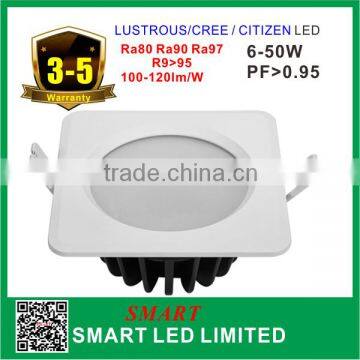

Die Casting 7W 10W 15W 22W SMD2835 Color Tempreture Change IP65 Waterproof Outdoor Led Downlight photo-4

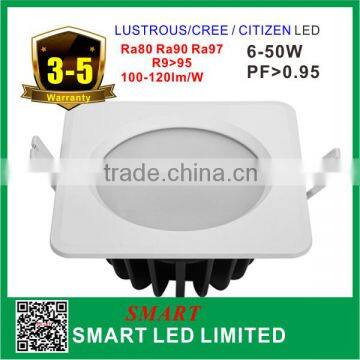

Die Casting 7W 10W 15W 22W SMD2835 Color Tempreture Change IP65 Waterproof Outdoor Led Downlight photo-5
Die Casting 7W 10W 15W 22W SMD2835 Color Tempreture Change IP65 Waterproof Outdoor Led Downlight photo-6
US$ 7 - 18 MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
SMD2835
Warranty(Years):
3yrs
Input Voltage(V):
AC85-265V
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.
LED Light Source SMD2835
Warranty(Years) 3yrs
Input Voltage(V) AC85-265V
Lamp Power(W) 25
Lamp Luminous Flux(lm) 1800
Lamp Luminous Efficiency(lm/w) 120
Color Temperature(CCT) Other, 2700-6000K White
Working Temperature(℃) -40, 55
Working Lifetime(Hour) 50000
Lamp Body Material Other, Die casting
IP Rating IP65
Certification C-tick, CCC, CE, EMC, FCC, LVD, PSE, SAA, UL, VDE
Model Number SM-SCL06WP
Place of Origin Guangdong, China
Brand Name SMART

Die casting 7W 10W 15W 22W SMD2835 color tempreture change IP65 waterproof outdoor led downlight

Product Description

Specifications



Model Numbe SM-SCL01WP SM-SCL02WP SM-SCL05WP SM-SCL06WP
Wattage 7W 10W   15W  22W
Cut out 75mm   95mm 125mm 175mm
Size Ø90*45mm Ø108*45mm Ø140*50mm Ø190*70mm
Input voltage AC85-265V
Material Die-casting
LED type SMD2835
CRI >83
Beam angle 90°/120°
Certifications CE/ROHS/SAA/C-tick
Warranty 3 years
Dimmable Yes
Color temperature 2700-6000k White























































Detailed Images





Die casting 7W 10W 15W 22W SMD2835 color tempreture change IP65 waterproof outdoor led downlight
Die casting 7W 10W 15W 22W SMD2835 color tempreture change IP65 waterproof outdoor led downlight Die casting 7W 10W 15W 22W SMD2835 color tempreture change IP65 waterproof outdoor led downlight

The Selection of Driver
Control of IC
♥ Electrolytic & capacitors
♥ Reasonable design of driver circuit
The driver can suitable for the led light source, and avoid the light can not normal use as the damage of the driver,we are relying on using the reliable quality and stable performance key accessories to make sure the dataand service life suitable for the led light source
The Optional Power supply
Die casting 7W 10W 15W 22W SMD2835 color tempreture change IP65 waterproof outdoor led downlight

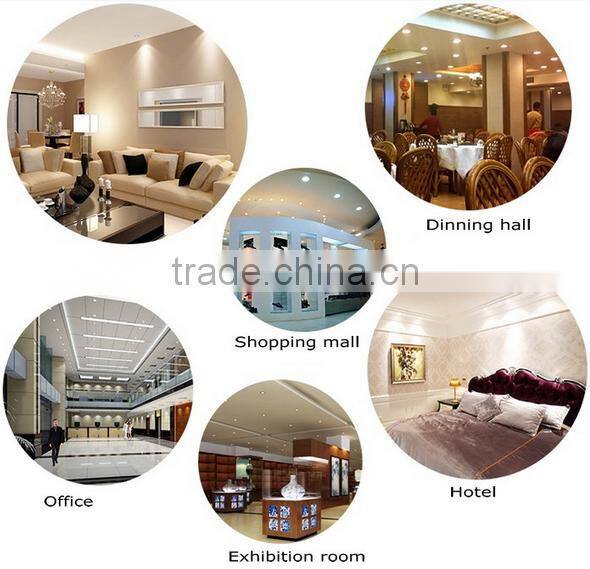

Why led downlights used so widely ?
Die casting 7W 10W 15W 22W SMD2835 color tempreture change IP65 waterproof outdoor led downlight

1. Most led downlights' material is Die-casting, which is good for heat dissipation.

2. The led downlight have long life span that is good choice for home and commercial use.

3. It is very good for led downlights for area places for the soft lighting result, eg: Exhitibtion, shop,

supermarket, hotel,home and office.

Company Information

 Die casting 7W 10W 15W 22W SMD2835 color tempreture change IP65 waterproof outdoor led downlight

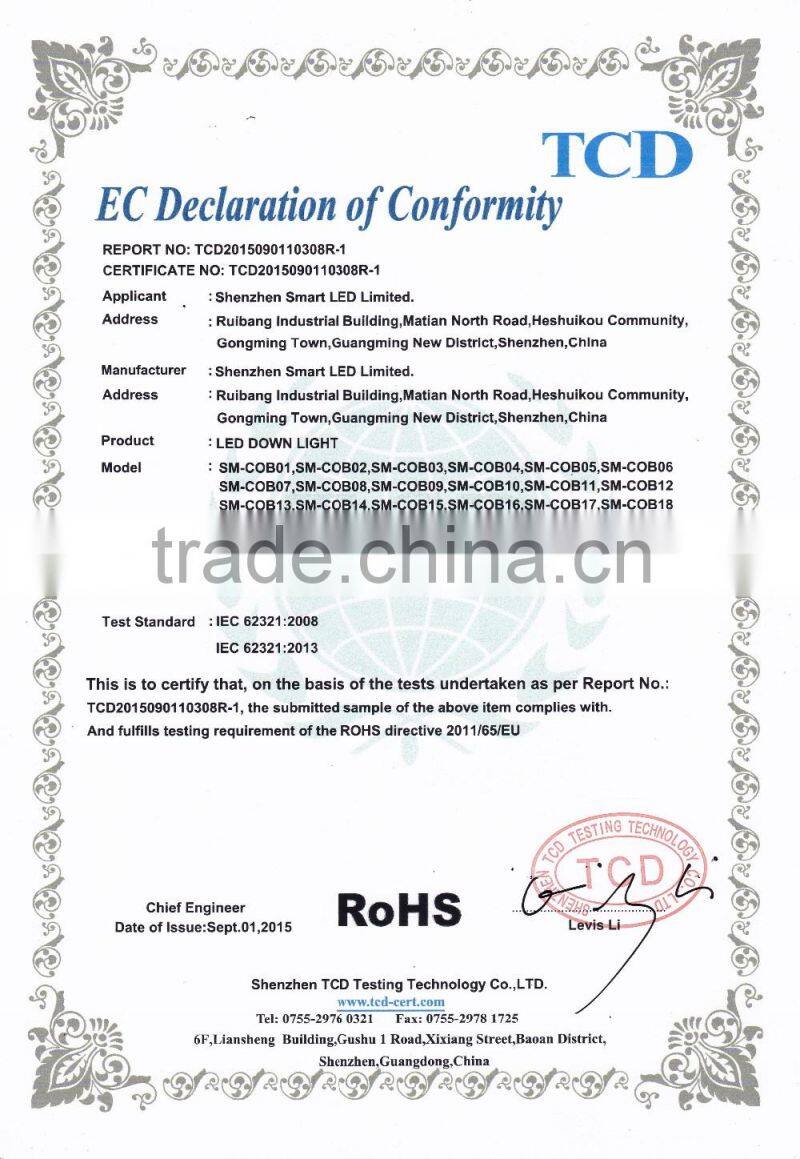

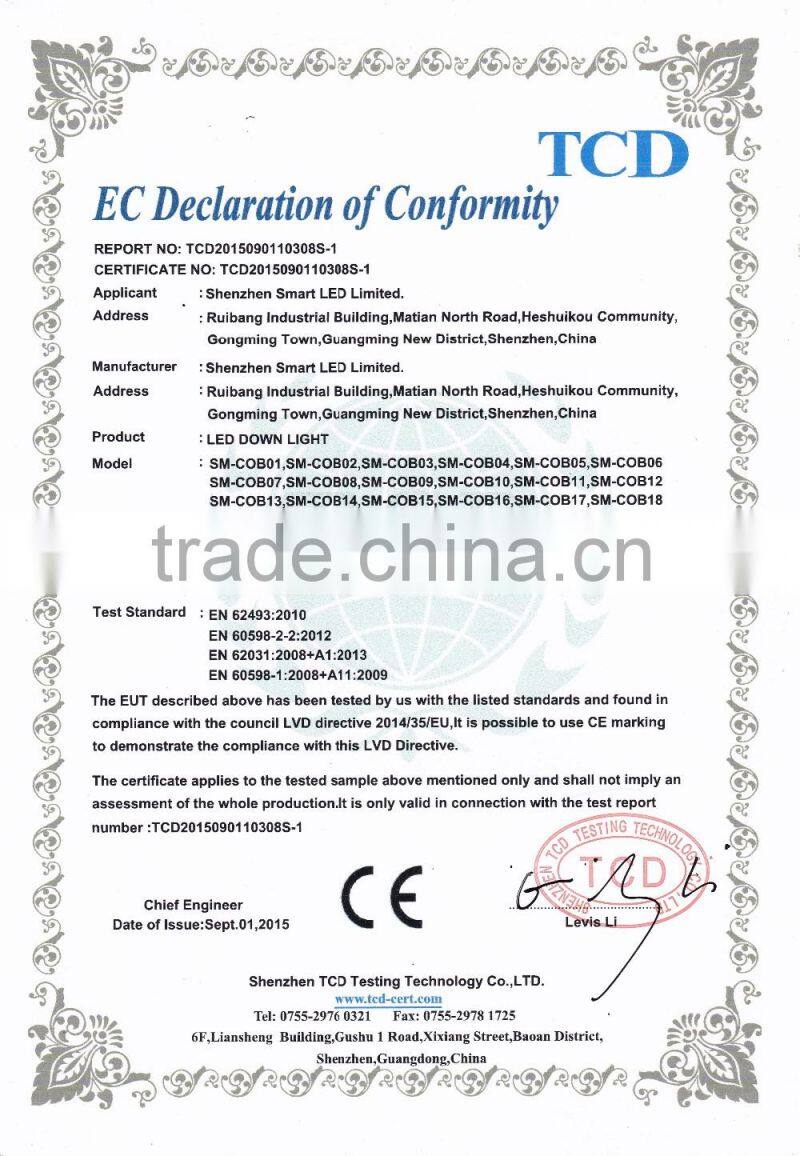

Certifications of led downlight



Die casting 7W 10W 15W 22W SMD2835 color tempreture change IP65 waterproof outdoor led downlight Die casting 7W 10W 15W 22W SMD2835 color tempreture change IP65 waterproof outdoor led downlight Die casting 7W 10W 15W 22W SMD2835 color tempreture change IP65 waterproof outdoor led downlight
Our Services

1. For all your inquires about us or our products, we will reply you in detail within 24 hours.



2. We own well-tranied and passional sales & after- sale services who can speak fluent Engligh language.



3. We offer OEM services. Can print your own logo on product , can customize the retail box packing and other things.



4. We have very experienced R&D engineers and we have strong ability to do ODM projects.



Packaging & Shipping

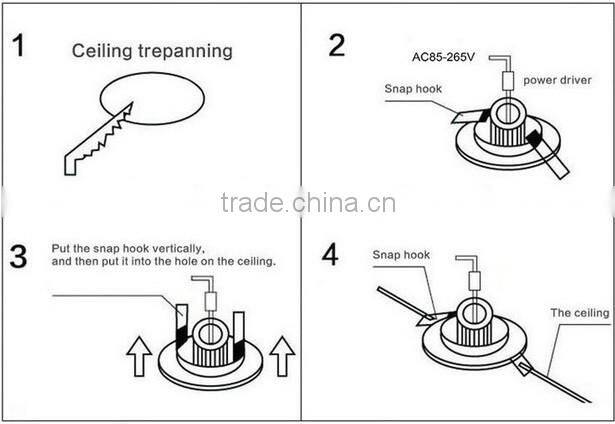

 Installation of led downlight



Die casting 7W 10W 15W 22W SMD2835 color tempreture change IP65 waterproof outdoor led downlight

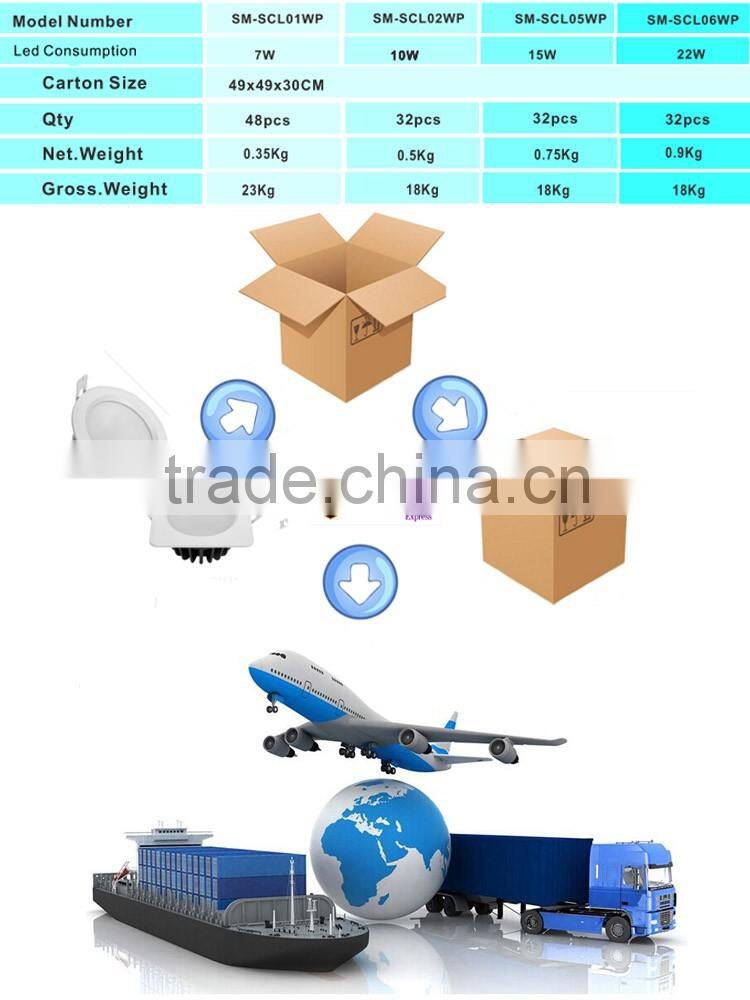

Packaging & Shipping



Die casting 7W 10W 15W 22W SMD2835 color tempreture change IP65 waterproof outdoor led downlight



Delivery detail:  We ship goods by UPS/DHL/FEDEX/TNT express which takes 3~ 5 days to arrive, or by air cargo which takes about one week to arrive , or by sea which takes about one month to arrive , depending on your actual requirements.
