Home > Lights & Lighting > LED Interior Lighting > LED Panel Light > Commercial Panel Led Light

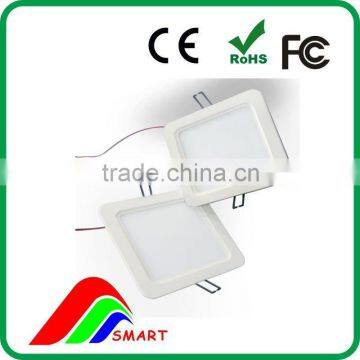

Commercial Panel Led Light

Name: Commercial Panel Led Light
Brand: SMART
SKU: 125266033
Availability: InStock

Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

LED Light Source:

SMD3528

Warranty(Years):

Input Voltage(V):

AC85~265V

Contact Supplier Request Quote Chat Now

Shenzhen Smart LED Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source SMD3528

Warranty(Years) 3

Input Voltage(V) AC85~265V

Lamp Power(W) 20

Lamp Luminous Flux(lm) 1200

Lamp Luminous Efficiency(lm/w) 65

Color Temperature(CCT) Pure White

Working Temperature(℃) -45, 45

Working Lifetime(Hour) 50000

Lamp Body Material Aluminum

IP Rating IP33

Certification CE, FCC, LVD

Place of Origin Guangdong, China

Brand Name SMART

Model Number SM-CL-L25024

Specifications

Commercial panel led light
1. SMD3528 as light source
2. external power supply
3. Square and Roun

Commercial panel led light

Item NO.	Power	CCT	Lumen	CRI	Size	Cut-out minimum	Input Voltage	Cover color
SM-CL-R09524	4.5W	2700-6500k	280LM	Ra>80	Φ95 H:26	Φ85	AC85~265v	White
SM-CL-R14024	5.5W		550LM		Φ140 H:26	Φ120
SM-CL-R17024	9.6W		600LM		Φ170 H:26	Φ150
SM-CL-R20124	11W		720LM		Φ201 H:26	Φ190
SM-CL-R27524	18.25W		1150LM		Φ275 H:26	Φ265
SM-CL-R33024	21.36W		1350LM		Φ330 H:26	Φ320
SM-CL-L21024	7.2W		1250LM		L210 W170 H:26
SM-CL-L1562	7.7W		255lm		ΦL156 W156 H:26
SM-CL-L10024	4.8W		210lm		ΦL100 W100 H:26
SM-CL-L15024	9W		450lm		ΦL150 W150 H:26
SM-CL-L18024	11.26W		620lm		ΦL180 W180 H:26
SM-CL-L25024	20W		1200lm		ΦL250 W250 H:26
SM-CL-L33024	29W		1500lm		ΦL330 W330 H:26

Products Feature:

1.Energy saving, save up to 70-80% power than fluorescent tubes.
2.Wide range of input voltage AC85-265VAC.
3.Good light consistency, no dark light.
6.New inner high efficiency ( 95%) constant current driver, with heat protection system, can work under unstable voltage.
6.Special circuit design,each group of s work separately,avoiding any problem of lighting output caused of influenced by single faulty .
7.No electric wave, conforming to CE.
8.Green environmental protection, lead-free material,conforming to RoHS.
9.No RF interference, no flickering, no humming,5-years life span.

Appliane:

1. led panel light Instead of the indoors ceiling light

2. School / Universities / Hosptial

3. Conference / Meeting room, Show Room

4. Commercial Complexes

5. Factories / Offices

6. Super-markets

7. Residential / Institution buildings

Installation Guide:

1.Turn off the power switch of led light.

2.Connect the input end of the power electrivity(85V-265V),and make sure exposed brass wires.

3.Connect the DC plug of the power output end with the DC socket of light inout end,and make sure the connect is fast.

4.Fix the light and the power differently in an appropriate position.

5.Turn on the power switch.

Why Choose SMART LED LIMITED?

Quality Control:
100% of the lamps will be tested and keep lighting for 24 hours to test its quality reliability , and we will also test its temperature after 24 hours’ lighting.

Then after it is cool we again test 100% of the lamps to see if it still work well . Each lamp should pass all these QC procedures before shipping to customer.

Order infomation

MOQ: 10pcs

Trade term: EXW / FOB Shenzhen

Delivery time: 3-5 working days for sample order, 7-10 working days for mass order

Warranty

Three years since the date of purchase

Warranty term

1. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, we will provide free/rework new products

2. If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instuction, SMART will provide paid maintance within warranty period.

Trade Terms:
1. Payment term: T/T 100% payment in advance, or for over 10,000USD, TT 30% deposit after order confirmed, the balance after goods ready before shipping . or L/C , or Western Union for small amount .
2. Lead time : normally in 5~10 days after deposit received
3. Sample policy : Samples are always availble for each model . Samples can be ready in 3~7 days once payment received .
4. Shipping port: Shenzhen , China
5. Discounts : We offer discount for big quantity .

Delivery detail:
We ship goods by UPS/DHL/FEDEX/TNT express which takes 3~ 5 days to arrive, or by air cargo which takes about one week to arrive , or by sea which takes about one month to arrive , depending on your actual requirements.

Our services:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours
2. We own well-tranied and passional sales & after- sale services who can speak fluent Engligh language
3. We offer OEM services. Can print your own logo on product , can customize the retail box packing and other things.
4. We have very experienced R&D engineers and we have strong ability to do ODM projects.
