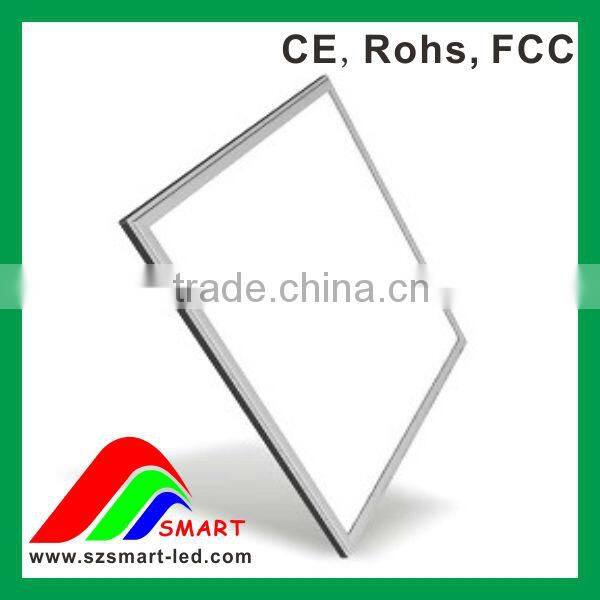

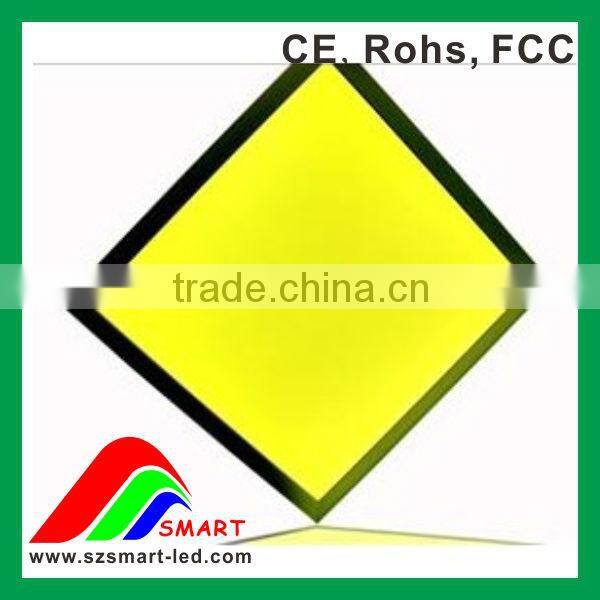

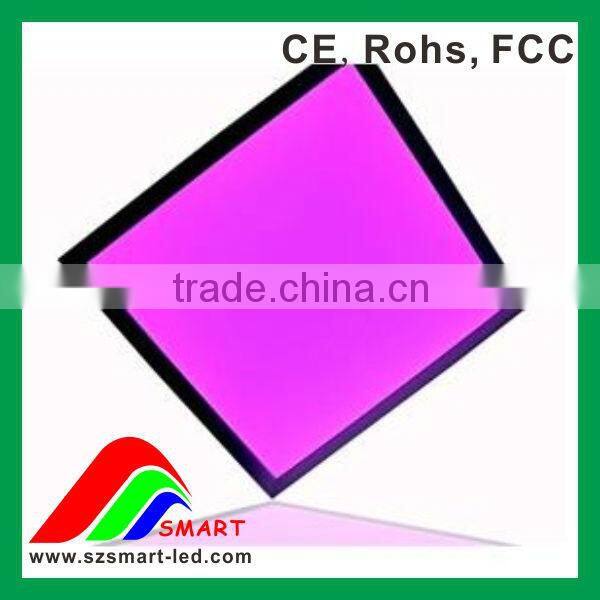

RGB led square panel light

Specifications

RGB led panel light
1. color: red, green and biue
2. Three years' warranty
3.CE, FCC, RoHS

RGB led square panel light

Part number	Color	Size (mm)	Voltage		Power (pcs)	Water proof	Lumen (pcs)
SM-PL3030	Red	300*300	AC85~265V		10 watt	IP52	96 lm
	Green						192 lm
	Blue						120 lm
SM-PL3060	Red	300*600			26 watt		192 lm
	Green						384 lm
	Blue						240 lm
SM-PL6060	Red	600*600			52 watt		384 lm
	Green						768 lm
	Blue						480 lm
SM-PL30120	Red	300*1200			52 watt		384 lm
	Green						768 lm
	Blue						480 lm



Feature

1. Low power consumption, High power efficiency

2. No UV or IR radiation

3. Products are compact of aluminum material.

4. Superior thermal performance, high applicability

5. Enviromental friendly:NO UV infrared and other radiation ,shock vibration resistant

6. Imported light source ensure high brightness,

7. External constant- current driver, stable performance.

8. Color: white, warm white



Installation Instruction

1.Turn off the power switch.

2.Connect the input end of the power electrivity(85V-265V),and make sure exposed brass wires.

3.Connect the DC plug of the power output end with the DC socket of light inout end,and make sure the connect is fast.

4.Fix the light and the power differently in an appropriate position.

5.Turn on the power switch.



Application:

The LED panel light is ideal replacement for the traditional downlights,it has wide range of application such as:
1. Jewelry counter lighting
2. Commercial lighting

3. Restaurant, hotel
4. Artwork lighting
5. Display case

6. Amusement park
7. Home and office lighting.



Why Choose SMART LED LIMITED?


Quality Control:
100% of the lamps will be tested and keep lighting for 24 hours to test its quality reliability , and we will also test its temperature after 24 hours’ lighting.

Then after it is cool we again test 100% of the lamps to see if it still work well . Each lamp should pass all these QC procedures before shipping to customer.



Order infomation

MOQ: 10pcs

Trade term: EXW / FOB Shenzhen

Delivery time: 3-5 working days for sample order, 7-10 working days for mass order



Warranty

Three years since the date of purchase



Warranty term

1. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, we will provide free/rework new products

2. If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instuction, SMART will provide paid maintance within warranty period.

Trade Terms:
1. Payment term: T/T 100% payment in advance, or for over 10,000USD, TT 30% deposit after order confirmed, the balance after goods ready before shipping . or L/C , or Western Union for small amount .
2. Lead time : normally in 5~10 days after deposit received
3. Sample policy : Samples are always availble for each model . Samples can be ready in 3~7 days once payment received .
4. Shipping port: Shenzhen , China
5. Discounts : We offer discount for big quantity .



Delivery detail:
We ship goods by UPS/DHL/FEDEX/TNT express which takes 3~ 5 days to arrive, or by air cargo which takes about one week to arrive , or by sea which takes about one month to arrive , depending on your actual requirements.

Our services:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours
2. We own well-tranied and passional sales & after- sale services who can speak fluent Engligh language
3. We offer OEM services. Can print your own logo on product , can customize the retail box packing and other things.
4. We have very experienced R&D engineers and we have strong ability to do ODM projects.
