Help CenterSingle Color Switch Dimmer
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SMART
Model Number:
SM-DIM-12/24B
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Guangdong, China
Brand Name
SMART
Model Number
SM-DIM-12/24B
Type
Manual Switch
Max. Load Power
24W
Voltage
Other, DC12V
Specifications

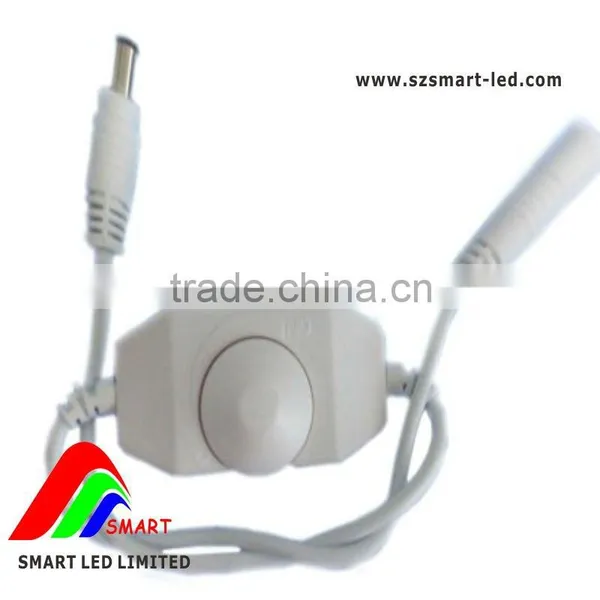

Switch single color led dimmer12, 2A per channel for single color
For LED lights and led module
CE&ROHS
Dimmer is a controller that it can adjust brightness infinitely,its control mode is knob-operated control, you could adjust light to the appropriate lighting brightness in accordance with your actual need.
Technical parameters
Working temperature: -20~60 °C
Supply voltage: DC12V
Output: 1 channel
External dimension: L61ΧW33ΧH32mm
Packing size: L105ΧW65ΧH40 mm
Net weight: 30 g
gross weight: 55g
Static power consumption: <0.5W
Output current: <2A
Power output: 24 W
Direction for use
- Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
- Adopt rotary button,its function as follows:
Rotate button to the right,brightness will be brighter,when you rotate it to the far right,the brightness is greatest.
Rotate button to the left,brightness will be darker,when you rotate it to the far left,the light will be turned off.
