Help CenterKAITAIN JN75-8 Stationary Electric Rotary Screw Air Compressor(Air Cooled)
Related Products
-
JN75-8 Energy Saving Fixed Speed Rotary Screw CompressorUS$ 25,000 - 35,000MOQ: 1 Piece -
Best Quality Energy-Saving Screw Air Compressor 75kwUS$ 25,000 - 35,000MOQ: 1 Piece
-
Electric Motor Energy Saving Two Stage Screw Air CompressorUS$ 25,000 - 35,000MOQ: 1 Piece
-
2015 Hot Sale Silent High Efficiency Energy Saving Screw Air Compressor Made in ChinaUS$ 25,000 - 35,000MOQ: 1 Piece
-
LG1.2-8 Electric Stationery Rotary Screw Air CompressorUS$ 4,000 - 5,000MOQ: 1 Piece

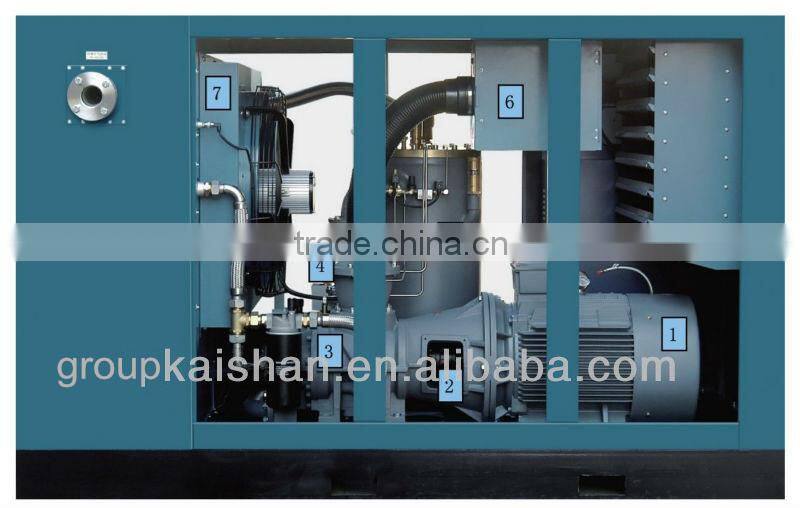

1.Drive Motor
IP54 rated,standard efficiency,IEC motors are used on every KAITAIN compressor. Over sized cast iron conduit boxes make
connections easy. The industry best motor grease is used to protect motor bearings, provide longer lubricant life, greater shear
stability and the best resistance to rust and corrosion.
2.Drive Coupling
The latest European designed spider couplings are used to guarantee the reliability and transmission efficiency and provide
vibration free power transmission for quiet and maintenance free operation.
3.Airend · Direct Driven --- No Gearing, No Belt!
Rotors are the key elements in producing compressed air efficiently.KAITAINairends utilize a male 5 lobe rotordriving rotorand a 6 lobe female rotordriven rotor).These state of the art Y profile rotors were introduced in the KAITAIN series compressor.
They have the following characteristics:
Larger rotors are designed to ensure the airends have slower rotorspeeds to deliver compressed air more efficiently than smaller airends
This translates into energy cost savings and a longer unit life.
The airends are guaranteed for 5 years.The rotor profile minimizes leakage andthe tighter clearances achieved through state of the art manufacturing processes results in higher
efficiency and improved lubrication.
4.Inlet Valve
The inlet valve is the major air flow control component in the compressor unit.It controls air flow to the compressor,either by opening,
throttling, or closing completely in response to pressure transducer controls.
5.Oil Separation System
The threestage separation system, the result of extensive research and development, supplies high quality compressed air.
The separation tank has two different separation stages: Centrifugal and gravity. The third stage separation is provided by
a high performance,long life coalescent separator filter. The efficiency of the first two stages assures the long life of
this coalescent filter. This system limits oil vapors carryover to below 3 ppm.
6.Kerry Air Filter
KAITAIN series compressors use the Kerry air filter which provides filtration to less than 3 microns Ultra Web nanofiber technology.
This technology ensures clean, unrestriced airflow for optimal compressor operation. It has 99.99% filtration efficiency and fully
complies with ISO 5011 standards. Strategic air inlet port positioning receives the coolest air as it enters the cabinet to ensure
superior volumetric efficiency.
7.Cooling System
The cooling efficency of a compressor is of vital importance to ensuring reliability and efficiency. The Kaitain Series compressors use an advanced design axial fan. The fan blade-end tip angle is designed to maximize the air volumetric flow rate cooling the high temperature lubricant oil and compressed air. A large surface area cooler with optimal fin design has been included to provide maximum cooling and longer operating life.
8.Oil Separation System Continue
The air purity meets ISO standard 8573-1:1991, Class 3 Oil Residues. Kaitain's oil separation system is monitored by an alarm system on the electronic control panel.
1. Model Number : JN 75-8
2. Motor: 102 HP / 75 kw
3. Max Bar: 116 psi / 8 bar
4. FAD: 501 cfm / 14.18 m³/min
5. Weight: 2500 kg
6. Dimension: 2990 x 1520 x 1850 mm
7.Noise Level: 72 dB(A)
8. Place of Origin: China
9. Configuration: Stationary
10. Brand Name: KAITAIN
11.Delivery Time: As Per Your Requirement
12.Packaging Details: Standard
13.Supply Ability: Enough
Main Products
Stationary Type:
1.Electromotor Powered Screw Air Compressor: 28~2543 cfm, 116~189 psi g, 10~544 HP.
2.Diesel Driven Screw Air Compressor: 212~1377 cfm, 102~508 psi g, 79~857 HP.
3.Electromotor Powered Reciprocating Air Compressor: 2.8~170 cfm, 116~580 psi g, 1~102 HP.
4.Diesel Driven Reciprocating Air Compressor: 48~459 cfm, 73~102 psi g, 15~102 HP.
Movable Type:
1.Diesel Driven Screw Air Compressor: 212~1377 cfm, 102~508 psi g, 79~857 HP.
2.Electromotor Powered Screw Air Compressor: 28~2543 cfm, 116~189 psi g, 10~544 HP.
3.Electromotor Powered Reciprocating Air Compressor: 2.8~170 cfm, 116~580 psi g, 1~102 HP.
4.Diesel Driven Reciprocating Air Compressor: 48~459 cfm, 73~102 psi g, 15~102 HP.
Zhejiang Kaishi Machinery Co., Ltd. located in Quzhou City, Zhejiang Province. Our company has many years manufacturing experience in field of air compressors and drilling rig machines. We bring in advanced technology from abroad to meet different requirements of customers. We are the biggest supplier providing the best prices and quality!
The main products manufactured by our company are more than 20 kinds including piston air compressor, screw air compressor, drilling rig machine, drill bits ,drill rod, DTH, air pick, rock drill, down the hole drills, small mining piston air compressor, chiller air compressor, concrete spraying machine, etc. Meanwhile, we have the right to import and export.
We have a board market in Southeast Asia, South America, Africa and many other countries. Good service and high quality help us gain recognition from users at home and abroad.
We have ISO9001: 2008 quality Certification. We look forward to establish a long-term cooperation relationship for our common development. If you are interested in our products, please visit our website or contact us.
