2016 china construction site use led construction tower crane 500w
Die cast alluminum alloy heatsikn with copper heatpipes
Waterproof LED driver
Bridgelux chip 45mil
CE,PSE,ROHS & IP65 certification
Feature: 2015 china construction site use led construction tower crane 500w
1. Using excellent import semoconductor chip Cree XPD chips 250pcs as the light source, with high thermal conductivity, low luminous decay, pure colors and no heavy shade etc.

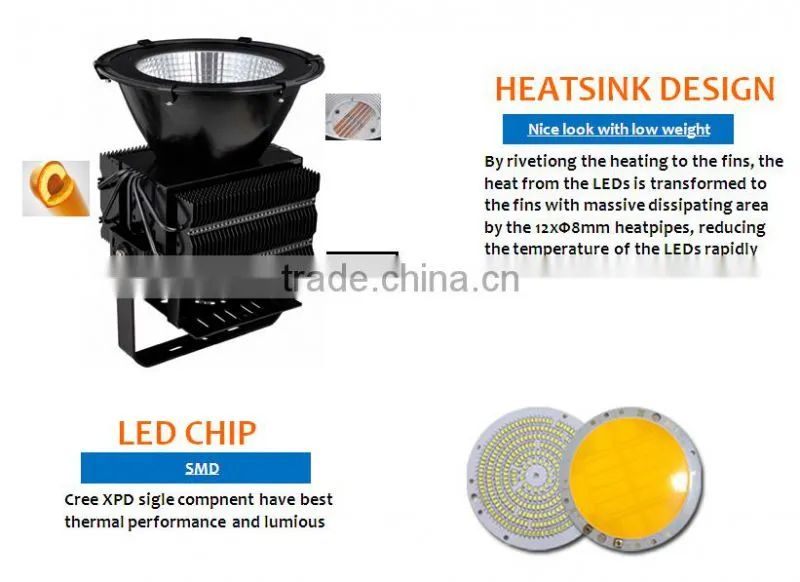

2. Die cast alluminum fixture, especially copper heatpipes contact the heatsource directly , maximize performane of the the heatpipe to reach the cooling effect
4. the surface of radiator is treated by antiseptic and anodic oxidation;with compact structure and aesthetic appearance.
Environment-friendly, no air pollution, no lead-free, no-mercury

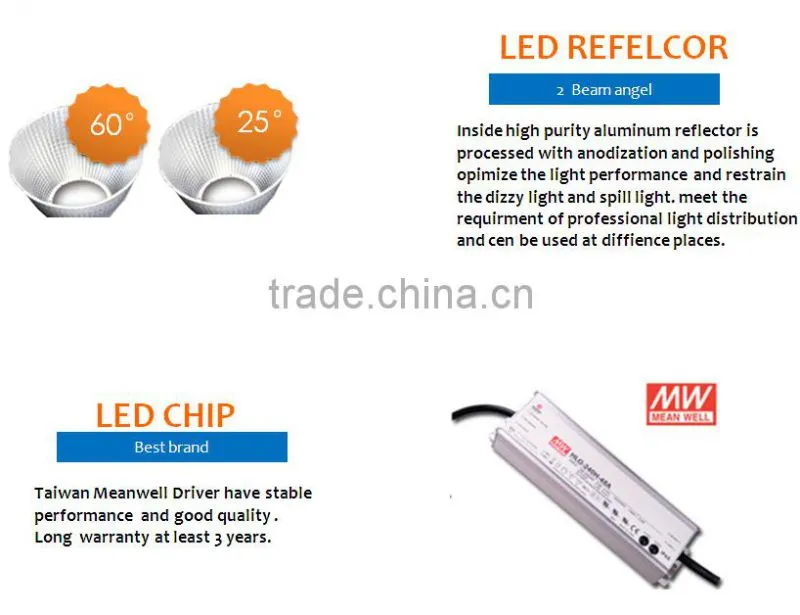

5. High purity aluminum reflector by anodic oxidation and polishing processing, the optimization of lighting performance at the same time, effectively reduce excessive light and glare
6. Unique versatile mountong arm offer, flexible installation options, suitable for the tower crane, high mast
Parameter: 2015 china construction site use led construction tower crane 500w
| Input Voltage | AC 95-265V | |
| Frequency Range | 50/60HZ | |
| Total Harmonic Distortion | ≤ 9% | |
| Power Factor | >0.95 | |
| LED Quantity | CREE XBD chips (280PCS) | |
| Working Voltage | DC 30-36V | |
| LED Consumption | 500W | |
| System Consumption | 510±5W | |
| Beam Angle | 25° /60° | |
| Luminous Efficiency | 100±5% LM/W | |
| Luminous | 50000±5% LM | |
| Color Temperature | Warm white (WW) | 2700-4000K |
| Natural white (NW) | 4000-5000K | |
| Pure white (PW) | 5000-6000K | |
| Color Rendering Index | WW | Ra>75 |
| NW / PW | Ra>80 | |
| Ambient Temperature for working | -30 ~ +50℃ | |
| Ambient Temperature for storage | -30 ~ +65℃ | |
| IP Grade | IP65 | |
| LED working Life-span | >50,000H | |
| Certificates | CE, RoHS, PSE, IP65 | |
Details: 2015 china construction site use led construction tower crane 500w

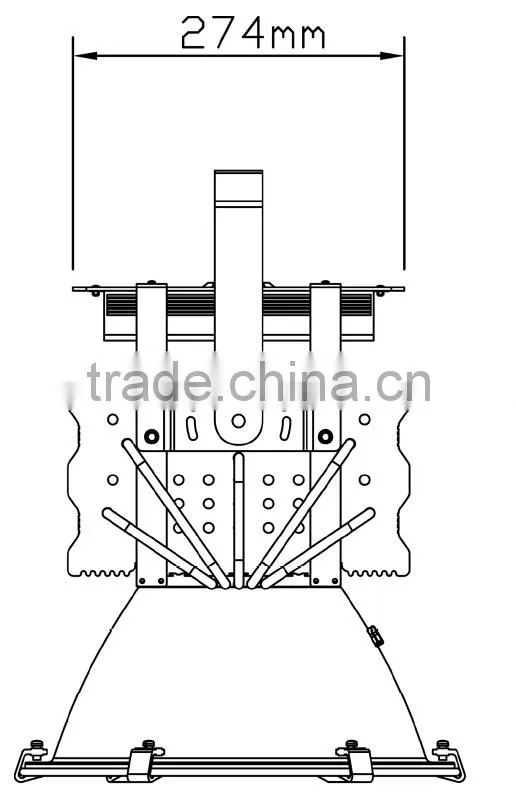

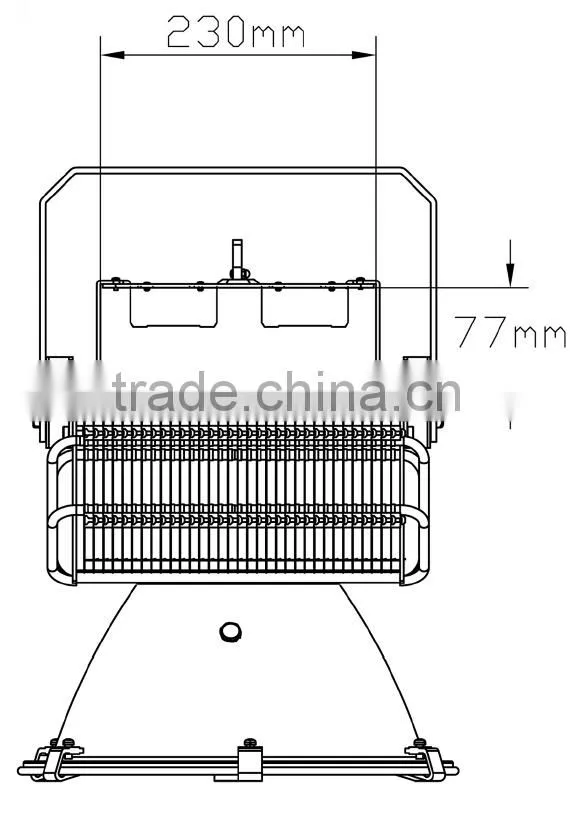

Dimension: 2015 china construction site use led construction tower crane 500w

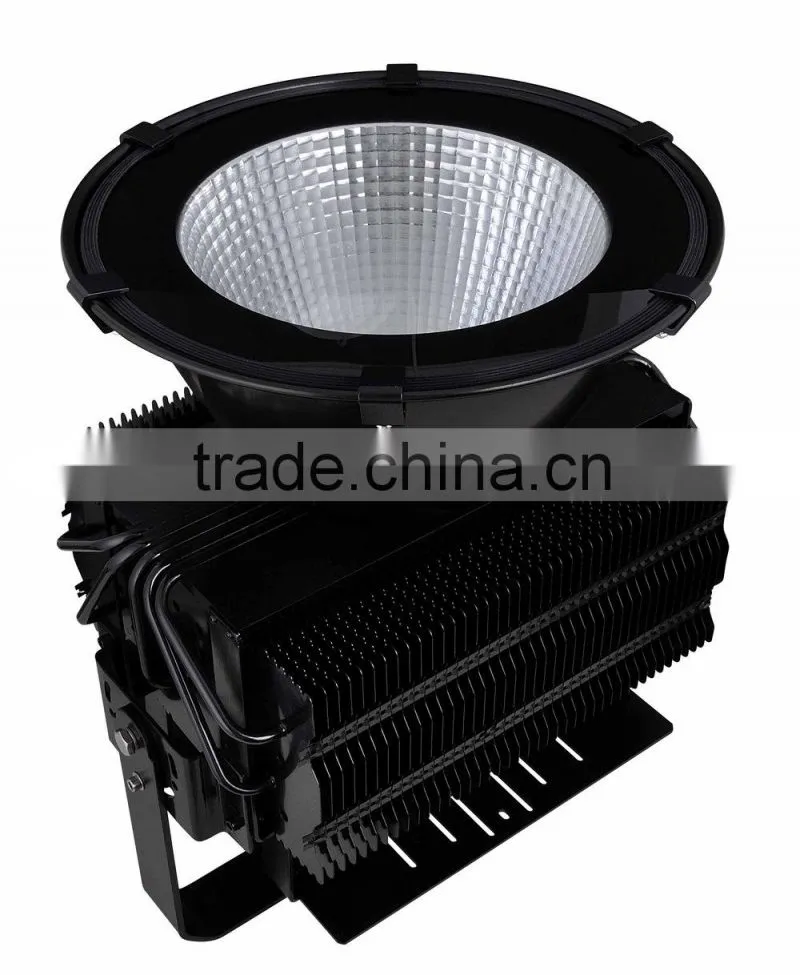

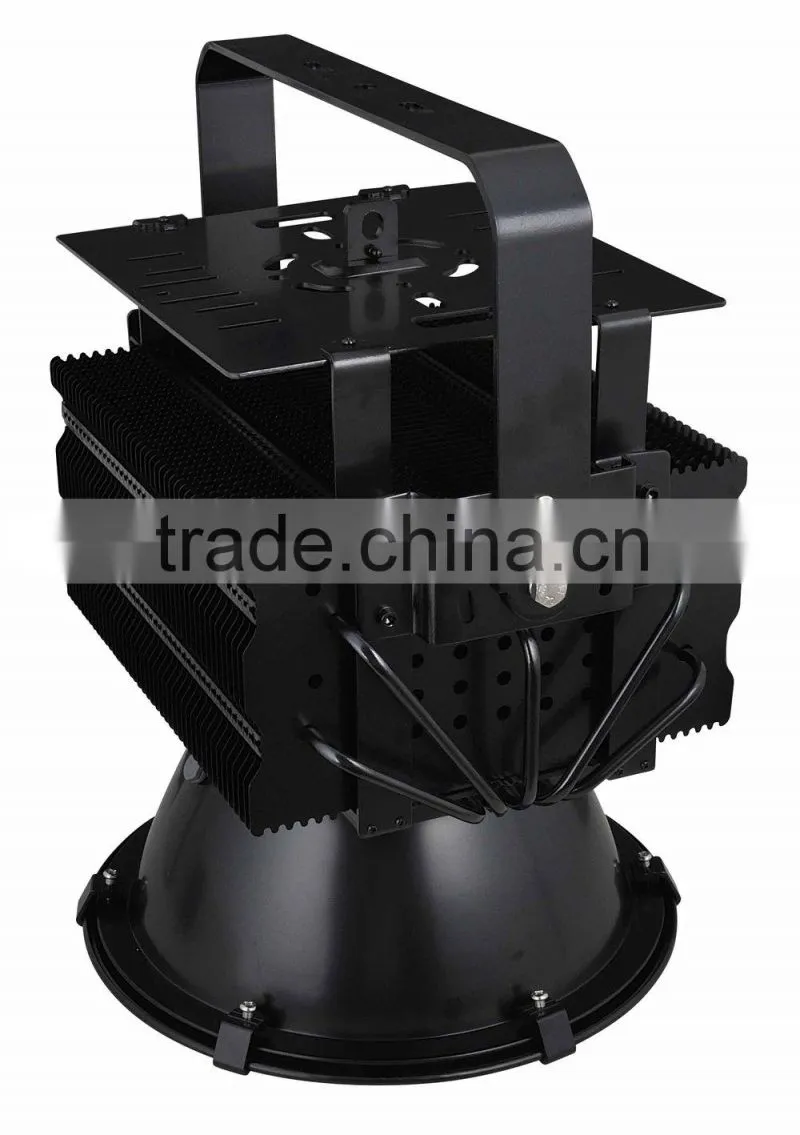

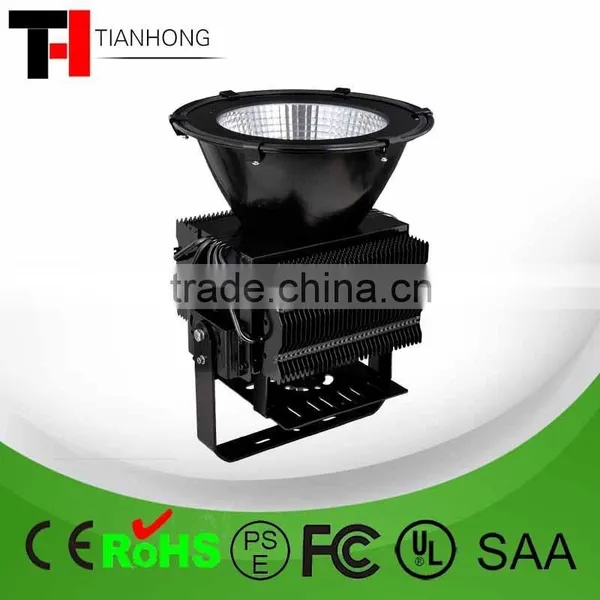

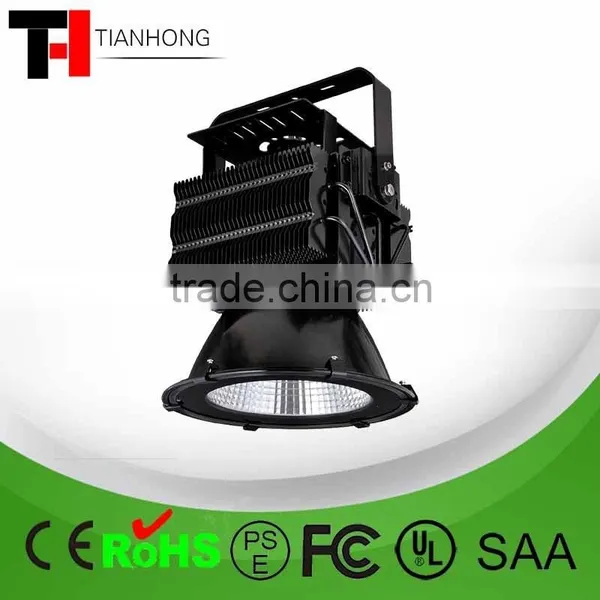

Big photo : 2015 china construction site use led construction tower crane 500w

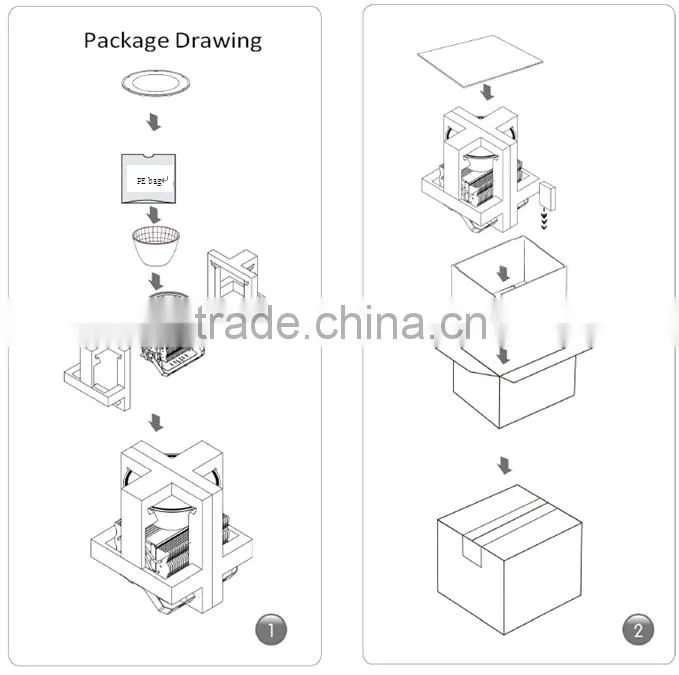

Packing: 2015 china construction site use led construction tower crane 500w
Shipping
1. Express: By DHL/FEDEX/UPS it takes 3- 7 days to arrive the destination.
2. Air cargo: It takes about one week to arrive the destination.
3. Sea shipment: It takes about one month to arrive the destination, depending on your actual requirements.
Our service
1. Your inquiry will be replied in 12hrs. Experienced staffs to answer all your enquires in fluent English.
2. Technical assistance during the whole developing stage, customized designed based on the needs expressed bu you.
3. Excellent logistics service includes the Strong package, fast delivery time. update tracking news in time.
3. 24 hours agen tesing guarantee, strict QC system. Five tests and checks during assembly process.
4. Packing, we can fllow your requirment to make new package, print your own logo on products , and customize the retail boxes.
5. All lights provides 3 years warrant
Shenzhen Tianhong Optoelectronics Co., Ltd, manufactures LED lighting solution for indoor /outdoor application and both residential and commercial uses. We have a wide range of LED lighting products, also offer its clients the option of customizing products for specific need. We produce LED lighting for most application, including:
1. LED HIGH BAY LIGHT
2. LED Street Light
3. LED TUNNEL LIGHT
4. LED FLOOD LIGHT
5. LED Sport light
6. LED TUBE
With 3 years experience we have developed a rapidly grow up on the LED lighting field, we have been the good partners for some of the international in West, East and Central Europe and provide the OEM service for them. We are looking to start another partnership maybe even with you and create value for your business and boost your LED sales quality, affordability and immense product variety.
Why choose TH
1. Strict QC system
Material
1). Inspect lamp shell with out any defective item, good heat dissipation
2). LED chips with Correct color temperature, CRI, lumen efficiency etc.
3). Driver with strict &long time test before application
Assembling
1). Strict QC system.5 tests/checks during their assembly in the lamps production and all product
2). Inspect again when the product be package
Ageing testing
1). Over 48 hours before shipment, confirm all quality well.
Shipping
1). Strong and professional package for safety transportation
2). Clear label Item show what is product in the cartons, include watts, CCT,
Dimming or not and quantity.
2. Professional service
1). Dialux solution for project with in 24hours(5 engineer for this job)
2). professional document and datasheet, nice picture for your market activities
3). Short leadtime, for you to get the lamps and show it to your clients easily
4).Excellent logistics service include the Strong package, fast delivery time, clear label. update tracking news in time
3. 5 years& 3 years warranty
1).long exact warranty, not just a word, it is from our quality confidence and responsibility to our customers,
2). the warranty is base on proof-document, don't need return the product
