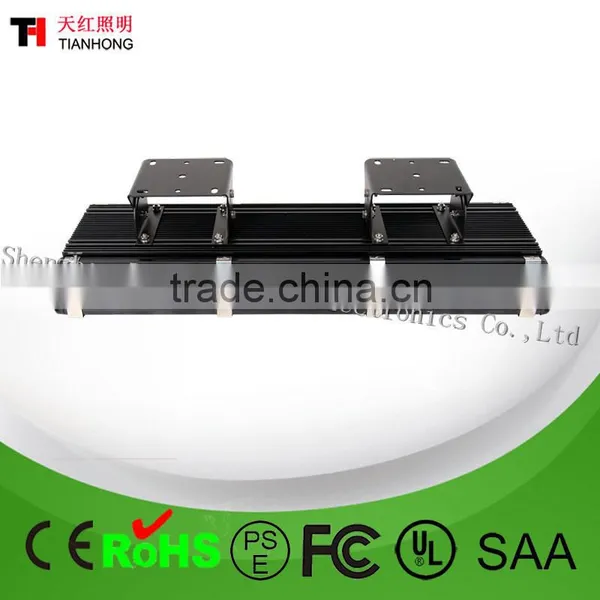

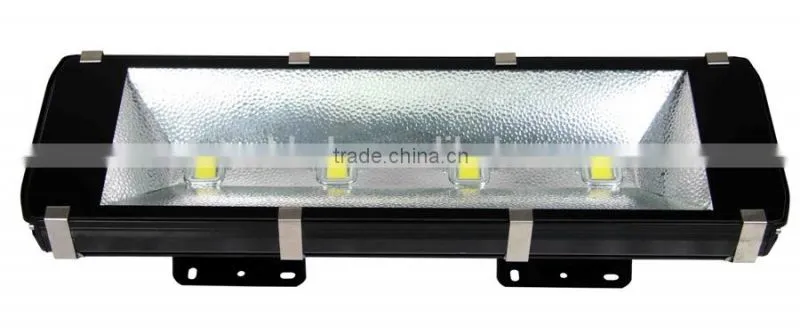

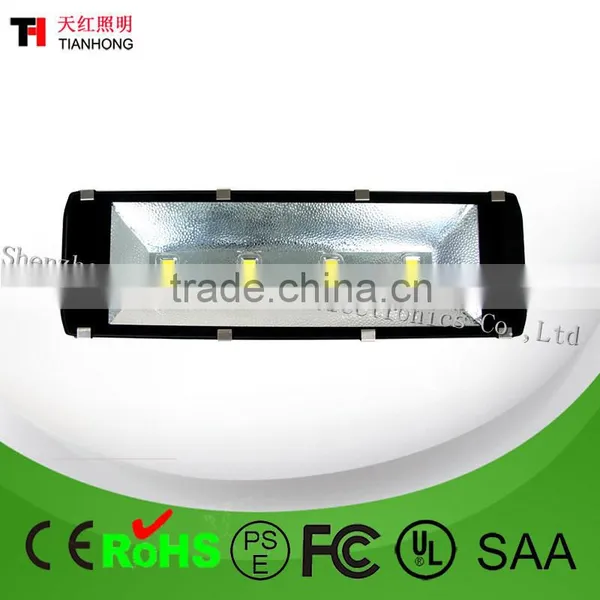

LED flood light with good luminance 200w flood led light
2 COB Bridgelux chip 4*50W
Meawell driver
Die cast alluminum tunnel light fixture
CE,PSE, ROHS & ip65 certifiction
Feature: Outdoor 200w led flood light 200 watt flood light led bulb
a) Chips: Using excellence inport semiconductor chip Bridgelux 45mil chips, have high heat dissipassio performance, low luminous decay, pure color, no heavy shade etc, especiall light source can up to 130 lm/w

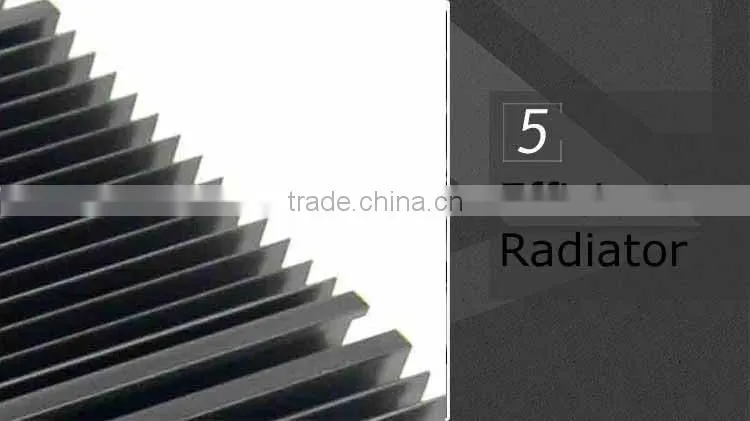

b) Unique thermal design. Much better thermal conductivity factor, heat dissipation, efficiency, smaller valume, lighter weight.
c) Use constant current and constant voltage, suitable for AC 85-265V input, and avoid the noise, flickering caused by the ballast.

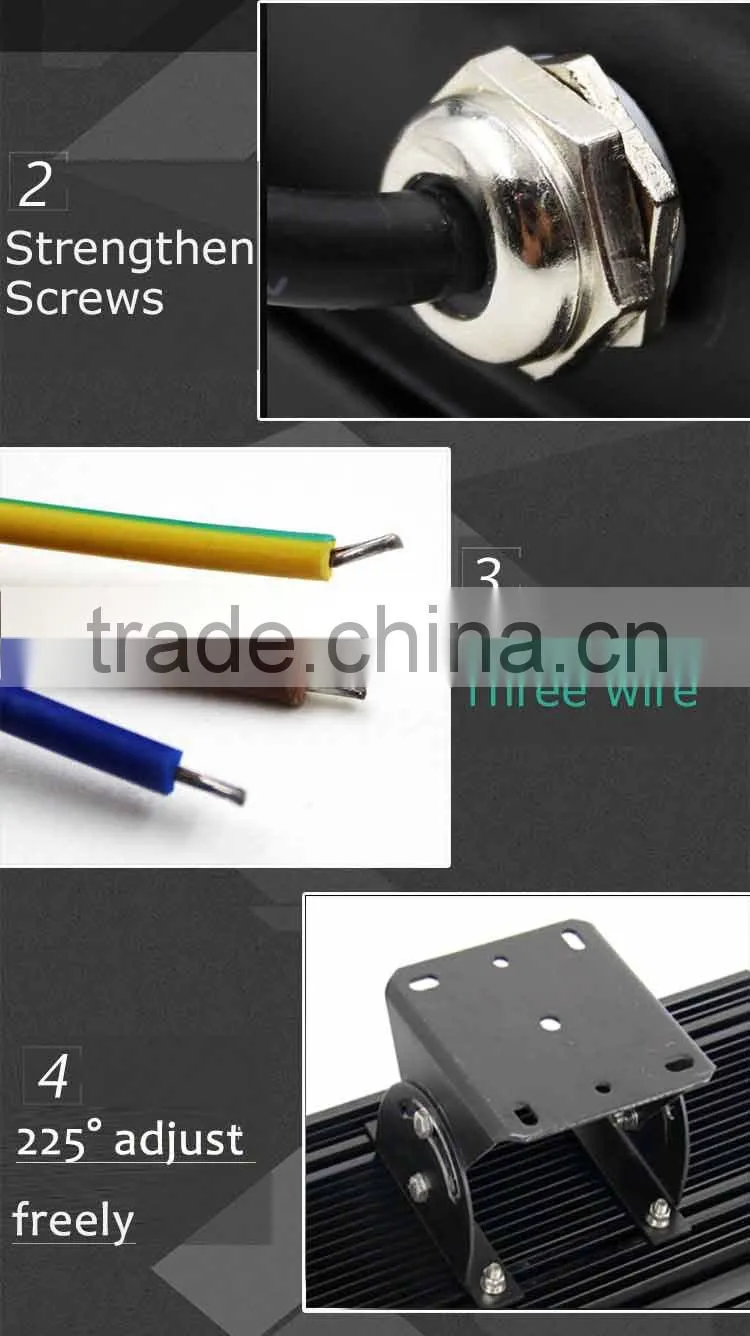

d) Use die cast fixture: perfect die cast treatment process, easy to install and dismantle, making this light widely adopted fot both lighting and decoration
e) With high purity aluminum reflector by anodic oxidation and polishing processing, the optimization of lighting performance at the same time, effectively reduce excessive light and glare.
f) Environmental friendly and energy saving, dust-proof, no IR or UV radiation, Lead and Mercury free.

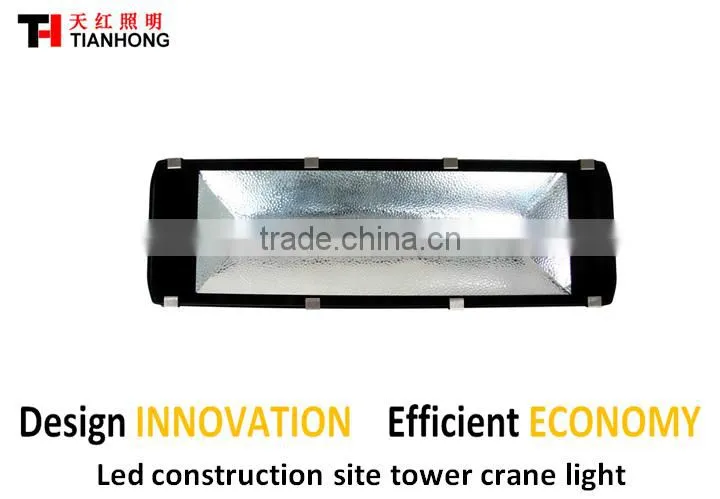

Big Photo

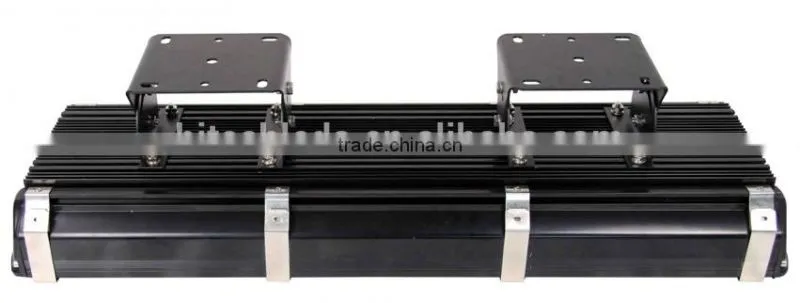

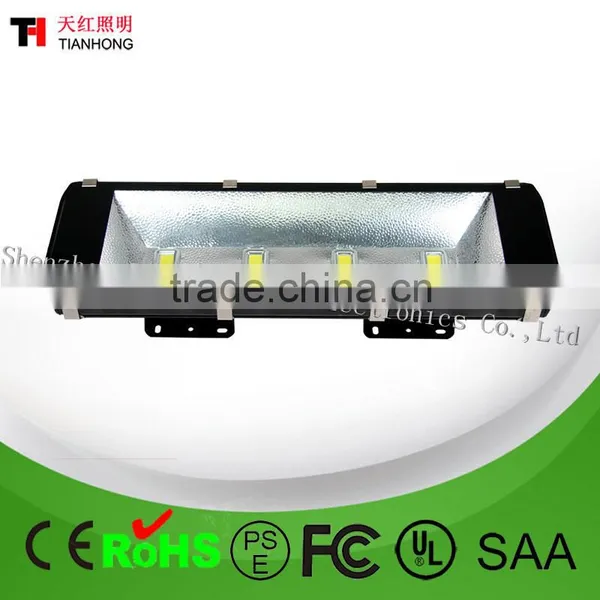

TH-RL920-200w perfect die cast treatment process, easy to install and dismantle, making this light widely adopted fot both lighting and decoration
Parameter: Outdoor 200w led flood light 200 watt flood light led bulb
| Input Voltage | AC 85-265V | |||
| Frequency Range | 50/60HZ | |||
| Total Harmonic Distortion | ≤ 9% | |||
| Power Factor | >0.95 | |||
| Working Voltage | DC 30-36V | |||
| LED Quantity | 4*50W | |||
| LED Consumption | 200W | |||
| System Consumption | 205W±5W | |||
| Beam Angle | 120° | |||
| Luminous Efficiency | 130 LM/W | |||
| Luminous | 20000±5% LM | |||
| Color Rendering Index | WW | Ra>75 | ||
| NW / PW | Ra>80 | |||
| Average Luminance | Height 6M | Height 7M | Height 8M | |
| (Accord to PW:5500-6500K) | 112.01lx | 82.28lx | 63lx | |
| Working Temperature | -30℃ - +50℃ | |||
| Storage Temperature | -30℃ - +65℃ | |||
| IP Grade | IP65 | |||
| LED working Life-span | >50,000H | |||
| Color of lamp shell | Black | |||
| Certificates | CE, RoHS, PSE | |||

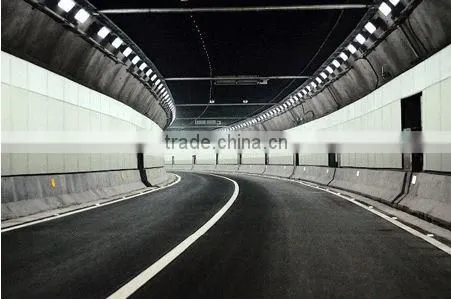

Application of led tunnel light
The lights could be used in many places such as: the tunnel, underground passage, underground parking, railway, building lighting, large area flood lighting, public spaces, squares and other places
Packing inforamation
CTN Size(1pcs/box) |
650*280*375mm |
Weight(N.W/G.W) |
14.0/15.2KG |
Why choose TH
1. Strict QC system
Material
1). Inspect lamp shell with out any defective item, good heat dissipation
2). LED chips with Correct color temperature, CRI, lumen efficiency etc.
3). Driver with strict &long time test before application
Assembling
1). Strict QC system.5 tests/checks during their assembly in the lamps production and all product
2). Inspect again when the product be package
Ageing testing
1). Over 48 hours before shipment, confirm all quality well.
Shipping
1). Strong and professional package for safety transportation
2). Clear label Item show what is product in the cartons, include watts, CCT,
Dimming or not and quantity.
2. Professional service
1). Dialux solution for project with in 24hours(5 engineer for this job)
2). professional document and datasheet, nice picture for your market activities
3). Short leadtime, for you to get the lamps and show it to your clients easily
4).Excellent logistics service include the Strong package, fast delivery time, clear label. update tracking news in time
3. 5 years& 3 years warranty
1).long exact warranty, not just a word, it is from our quality confidence and responsibility to our customers,
2). the warranty is base on proof-document, don't need return the product
