LED Headlight Kit Bulb H4

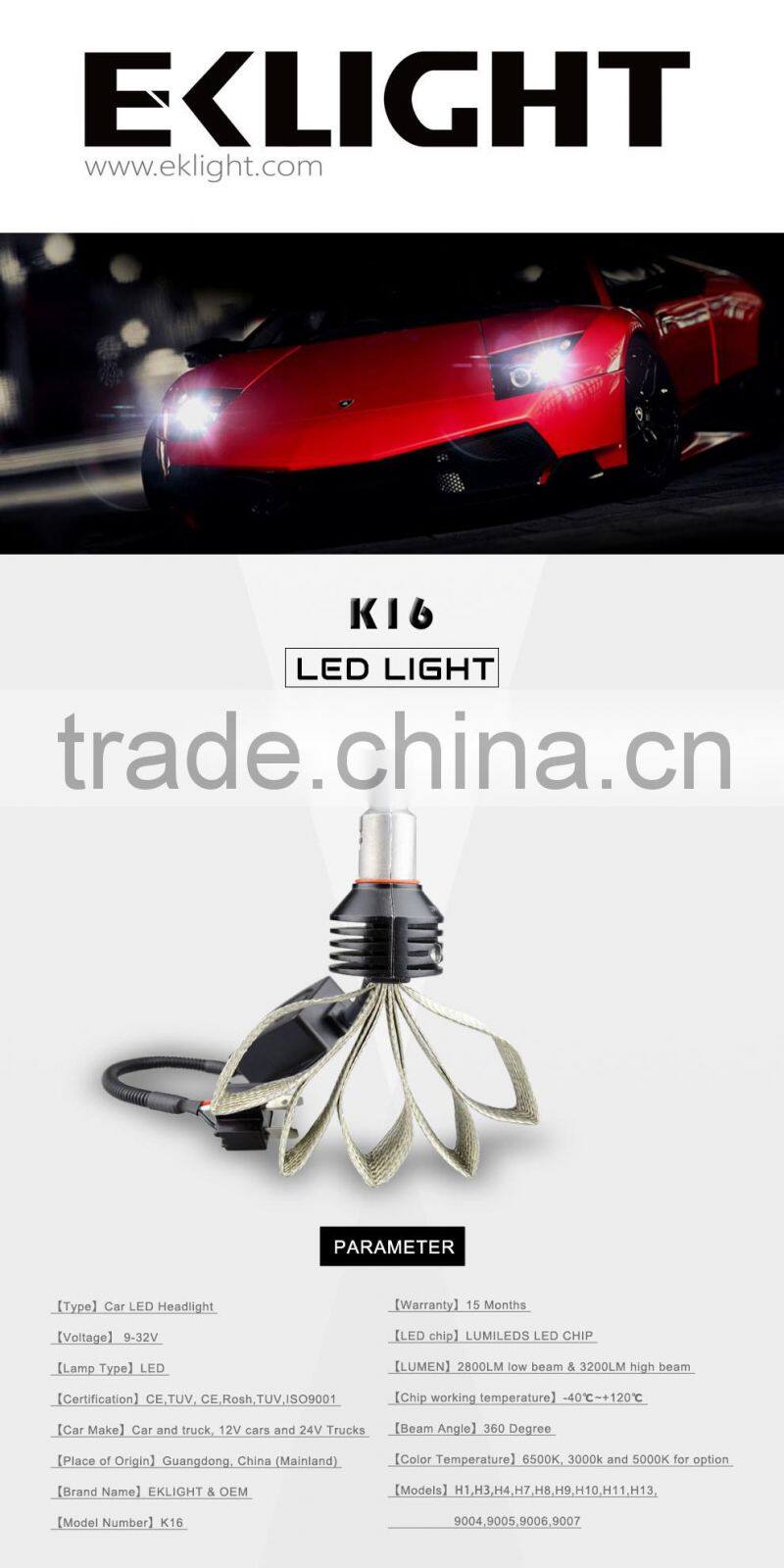

| Model | K16 Fanless led headlight |
| Single beam type | H1,H4H7,H8,H10,H9/H11/H16(JP),H16(EU)/5202,9005,9006,H12,D1/2/3/4 |
| Dual beam type | H4 H13 9004 9007 |
| LED chip type | Phi-lips LU-XEON Z ES |
| Voltage | 9-30VDC |
| Current | 2A/13.5V |
| Operating Power | 22W |
| Lumens | 3000LM Low beam & 3600LM high beam |
| Color Temp. | 6500K |
| Other Color Temp. | 3000K,5000K (200 sets/each) |
| Working Temp. | -45°C~+85 °C |
| LED chip wrok Temp. | -40°C~+120 °C |
| Protection | Reverse polarity protection |
| Life-Span | 50000 hours |
| MOQ | No MOQ for sample test |
| Remarks |
Anti-EMI(anti-electromagnetic interference): S95/54/EC |

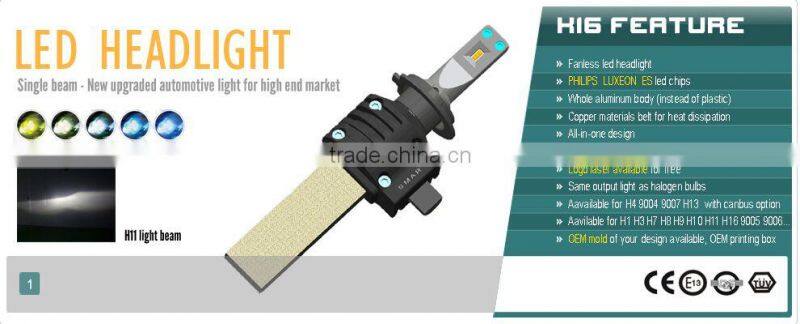

Features
- Ultra-light effect, ultra-low thermal resistance,exceeded Energy Star standards.

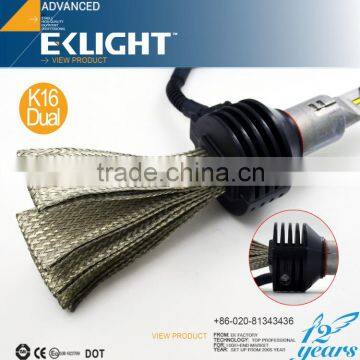

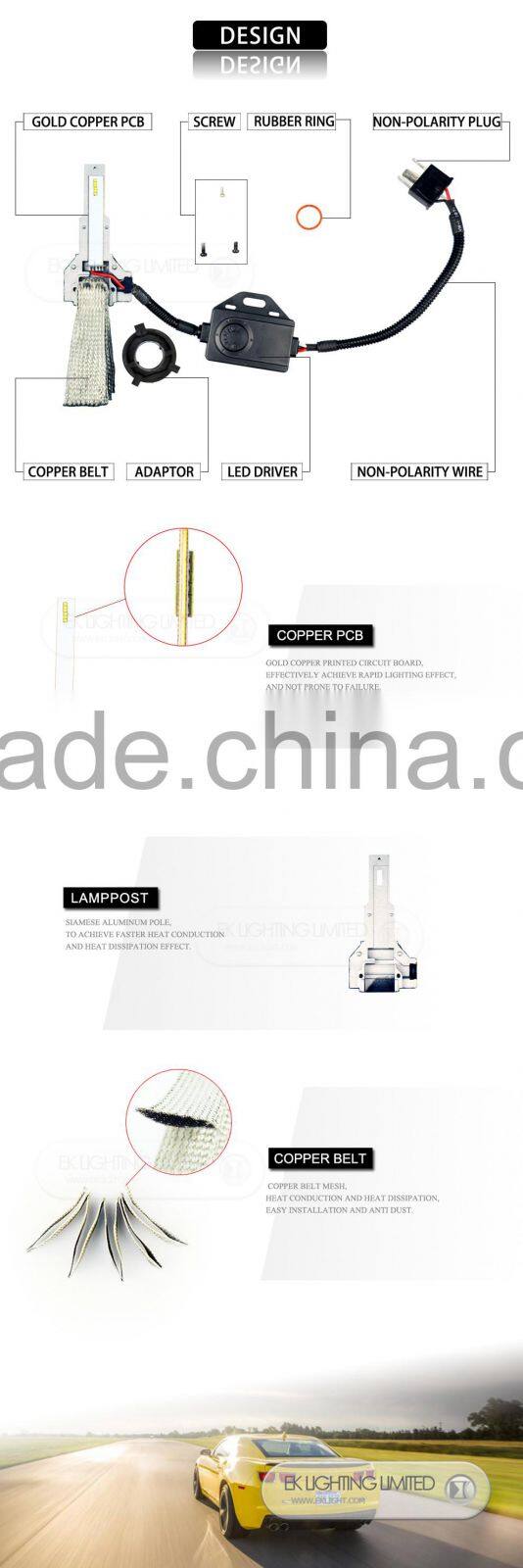

- Light body heat dissipation all in one design, 360degree heat groove: Double-sided copper PCB board+ High thermal conductivity aluminum+ Copper mesh cooling,perfect thermal design.

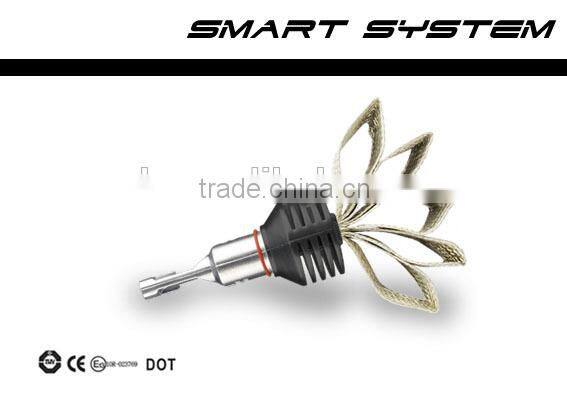

- Applied with newest copper mesh thermal system, with powerful thermal and heat dissipation, had solved overheat burning problem of LED headlight that caused by fan malfunction.

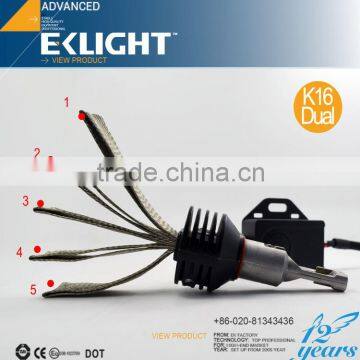

- Copper mesh requires smaller space,optionally bent in different directions, coupled withsmall size cooling pad, suitable for all car types.
- Quick start, reach 100% brightness when start up, with incomparable start response rate than HID.
- Stationary base separate from light body design, easy to install,with removable stationary base adaptors, it can be changed to different base for separate use, lower the stock pressure.
- Ultra small size driver design, connected with light source, easy for installation.
- Complied with IP65 waterproof and dustproof standards(Don’t put lamp beads emitting surface into the water, because LED is directly exposed.)

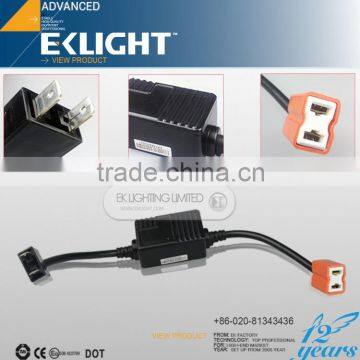

- In line with EMI anti-interference requirements, external canbus relay can pass the car computer system.

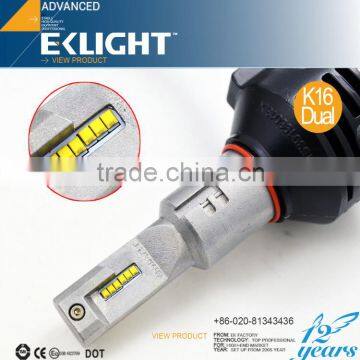

LED chips

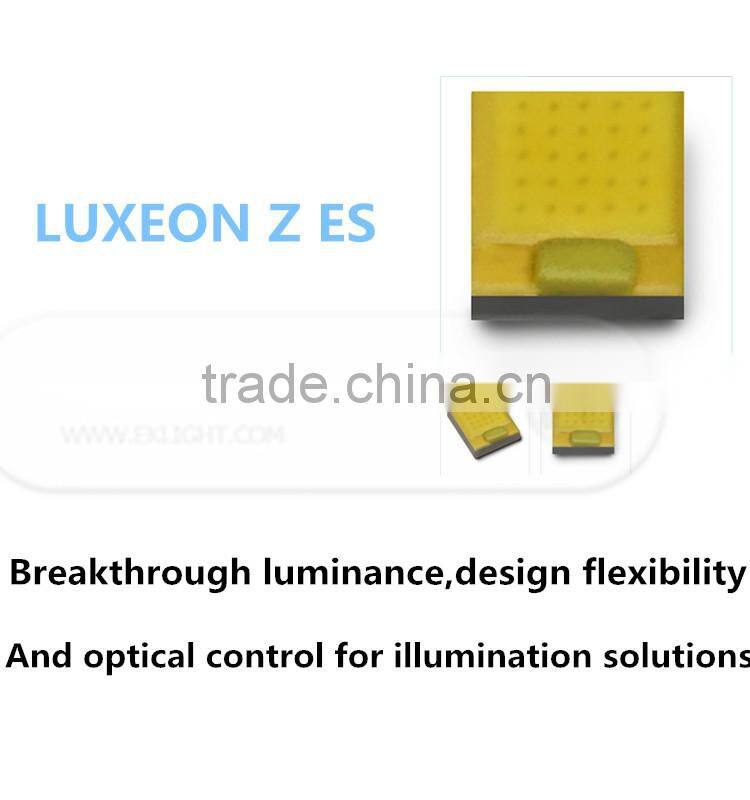

Applied with Philips light source, LUXEON Z ES . Lamp beads packed with thin film flip technology, no gold wire, had improved the function performance of
LUXEON Z ES in high current and high temperature use.
Applied with Phili-ps light source, LUXEON Z ES . Lamp beads packed with thin film flip technology, no gold wire, had improved the function performance of LUXEON Z ES in high current and high temperature use.
LUXEON Z ES only has 2X1.6mm emitting surface,providing unprecedented color consistency, brightness and luminous flux density. Better compact beam angle, higher luminousefficacy, ideal for automotive lighting source. Use 3 pcs lamp beads arrangement with 2 emitting surface design, same as original halogen emitting area(4.8x2mm), light beam pattern has equivalent effect as halogen bulb.
We use the best quality led light source for headlight - PHILI-PS LUXEON Z ES to ensure brightness, good color rendering, much less color fading…etc. The famous brand led chips make you never worry about the quality.
Output light

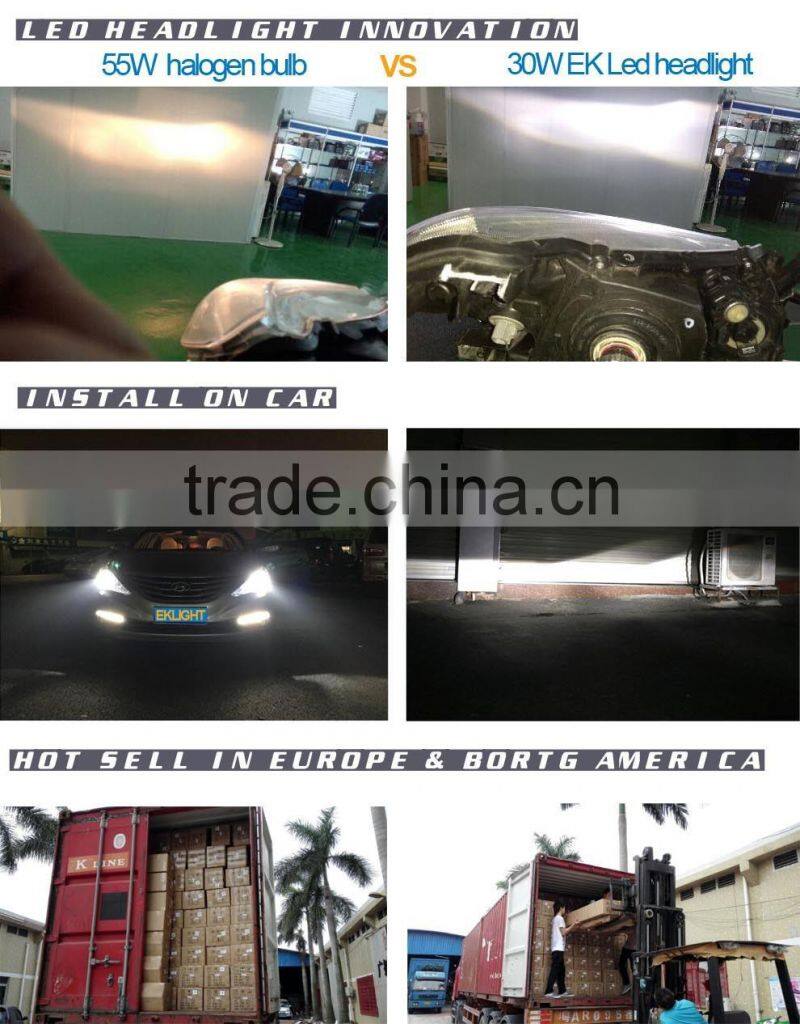

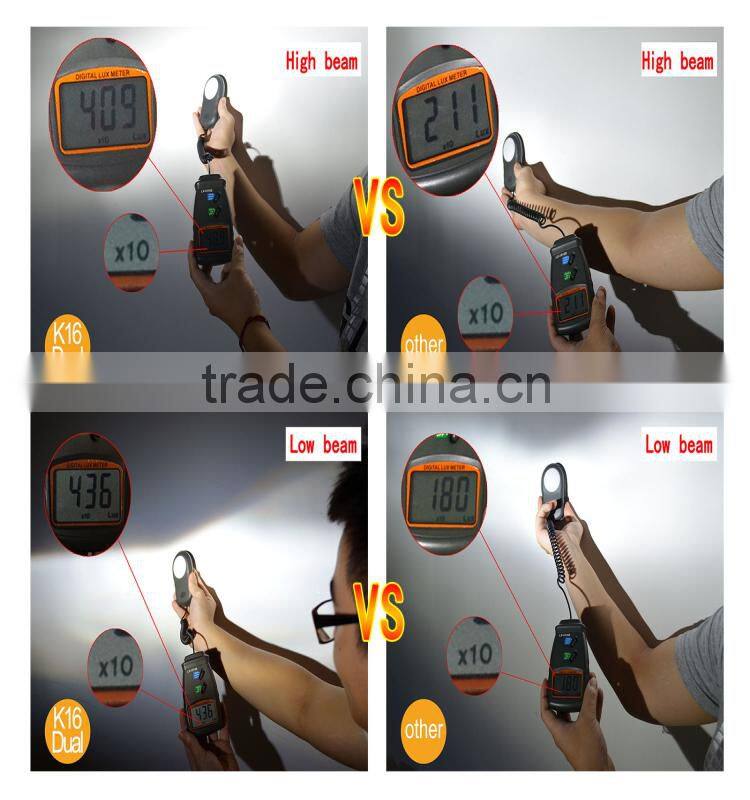

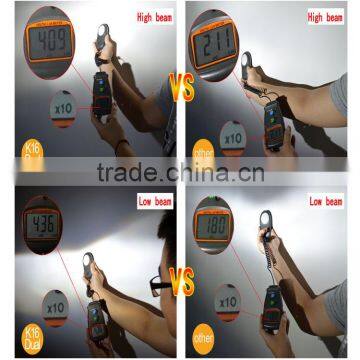

Compare with the illuminance(LUX)

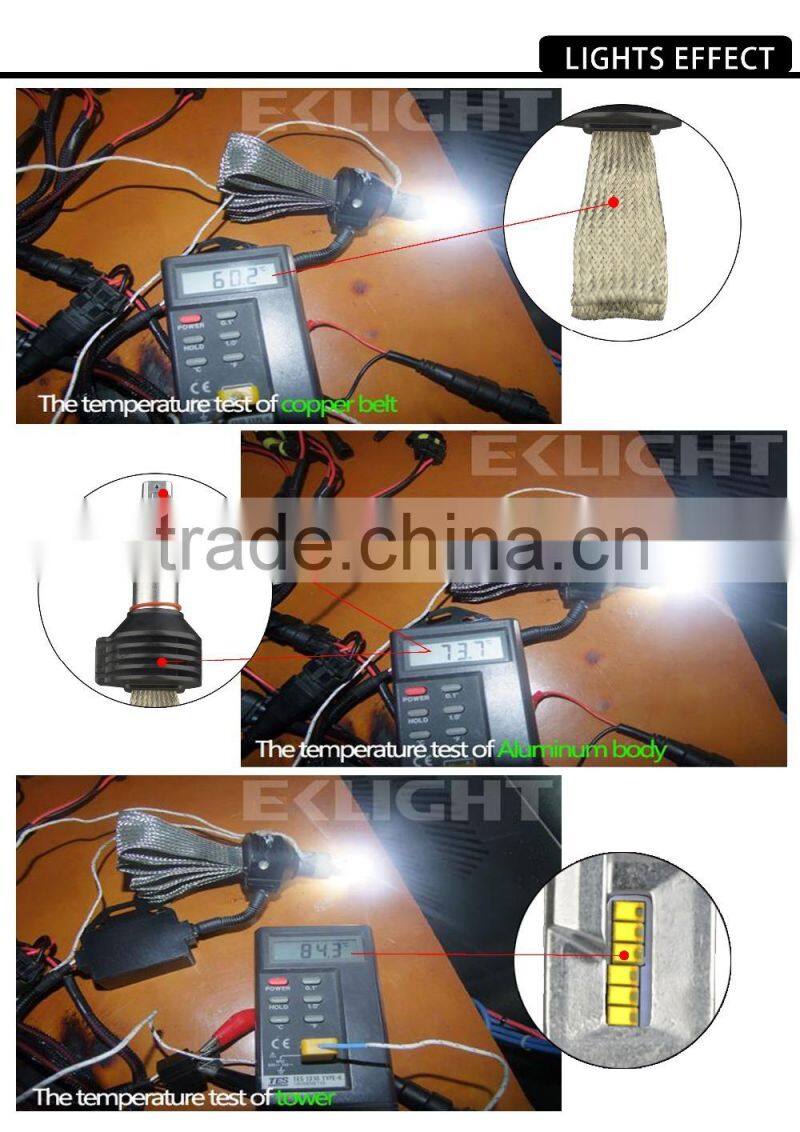

Better Heat-dissipation

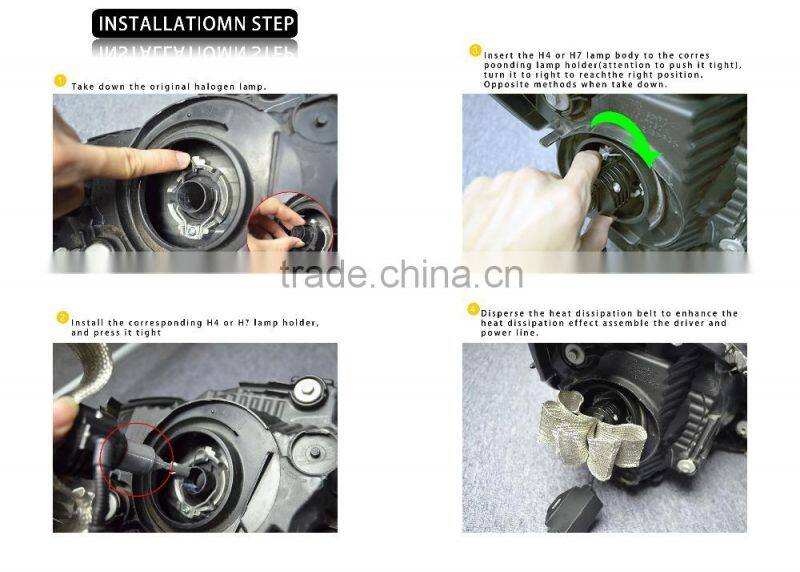

Installation
Packaing
The good looking, colorful packing led headlight box. - Top quality used - very hard. To help improve your business competitiveness. We know packing box design and material is very good for business.
EKLIGHT pay attention to the packing, trying to not only protect the goods better, but also help you to improve business competitiveness, and do more business.

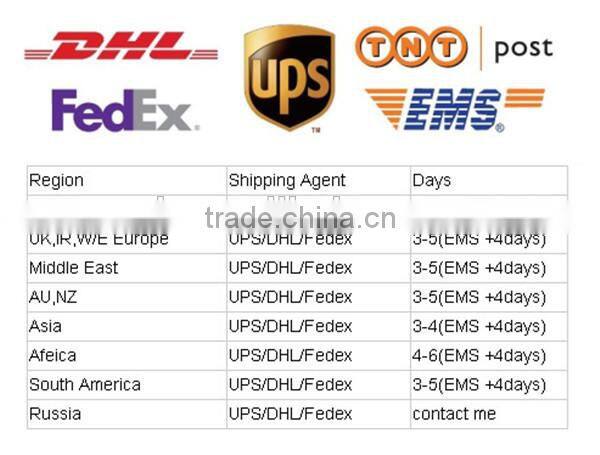

Delivery ways
Thoughful OEM service

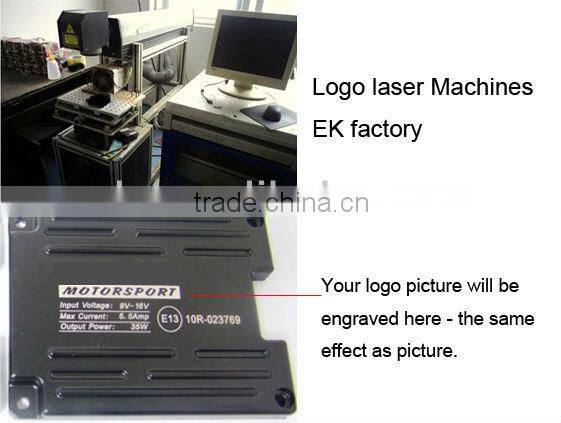

1: OEM logo laser for free on drivers. Remark: MOQ 100 pcs, then laser for free.
2: OEM printing LED kit box - MOQ: 500 sets Remark: if you order kit quanitty over 500 sets, completely for free to help print your design OEM printing hid box.
3: OEM ballast box, bulb box -- MOQ : 2000 pcs.
4: OEM mold: ballast mold, bulb mold, DRL led mold, led headlight mold, led marker mold, new design auto led ...etc. EK have rich experience to help big distributors to customize OEM design products with stable performance.There lots of our distributors already got successful business by EK OEM design products. We welcome to you make OEM products from EK, and EK has professional technician team and excellent service to ensure the perfect OEM products you will get the replacements normally send with next order.
